ENGINE COMPARTMENT

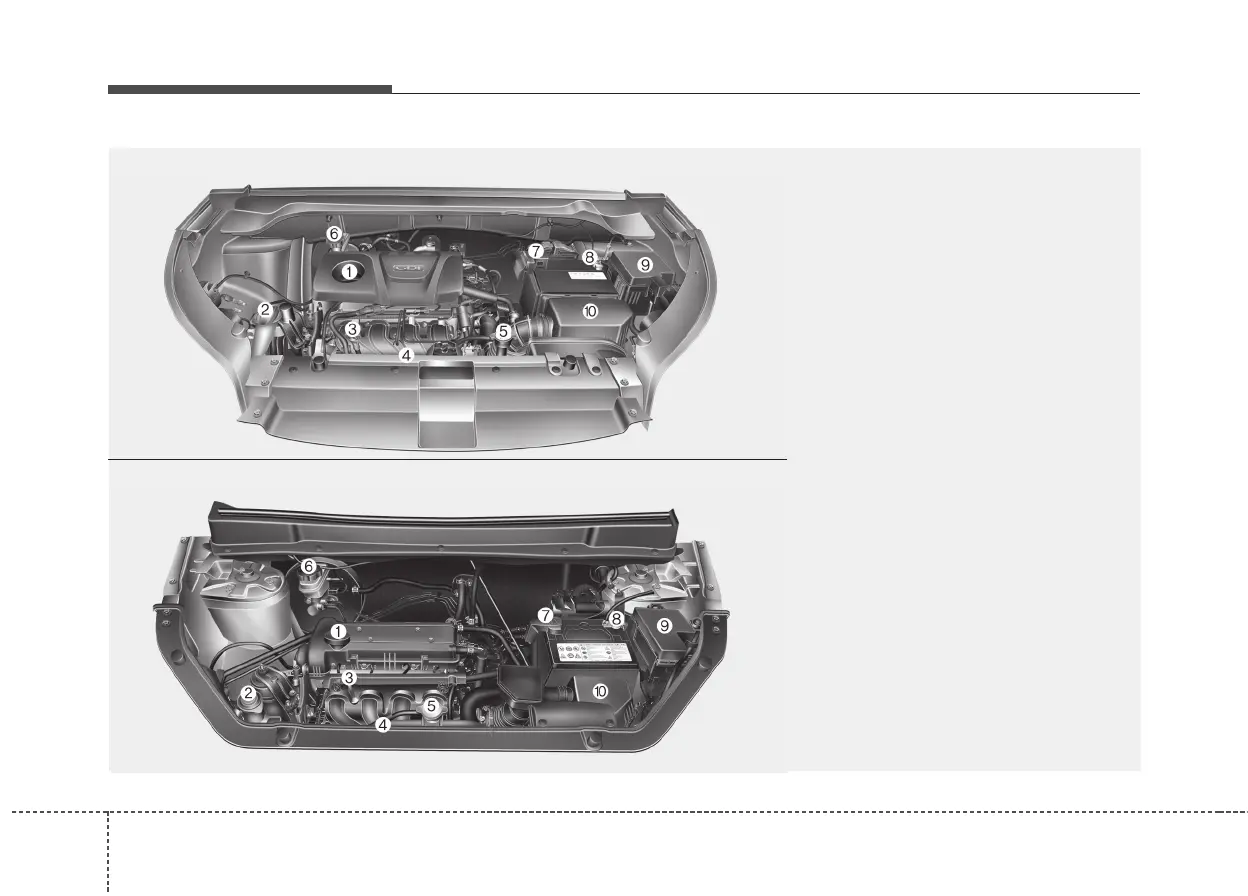

OPS076113R/OPS076100R
1. Engine oil filler cap................................8-45
2. Windscreen washer fluid reservoir ........8-52
3. Engine oil dipstick ................................8-44
4. Engine coolant reservoir ......................8-49
5. Radiator cap..........................................8-50
6. Brake/clutch fluid reservoir....................8-51
7. Positive battery terminal........................8-62
8. Negative battery terminal ......................8-62
9. Fuse box................................................8-80
10. Air cleaner ..........................................8-54
❈ The actual engine cover in the vehicle may
differ from the illustration.
■■
