● Prevent overload of generator of single-phase power is used via single-phase receptacle.
(3) When connect the load, you should take care of:

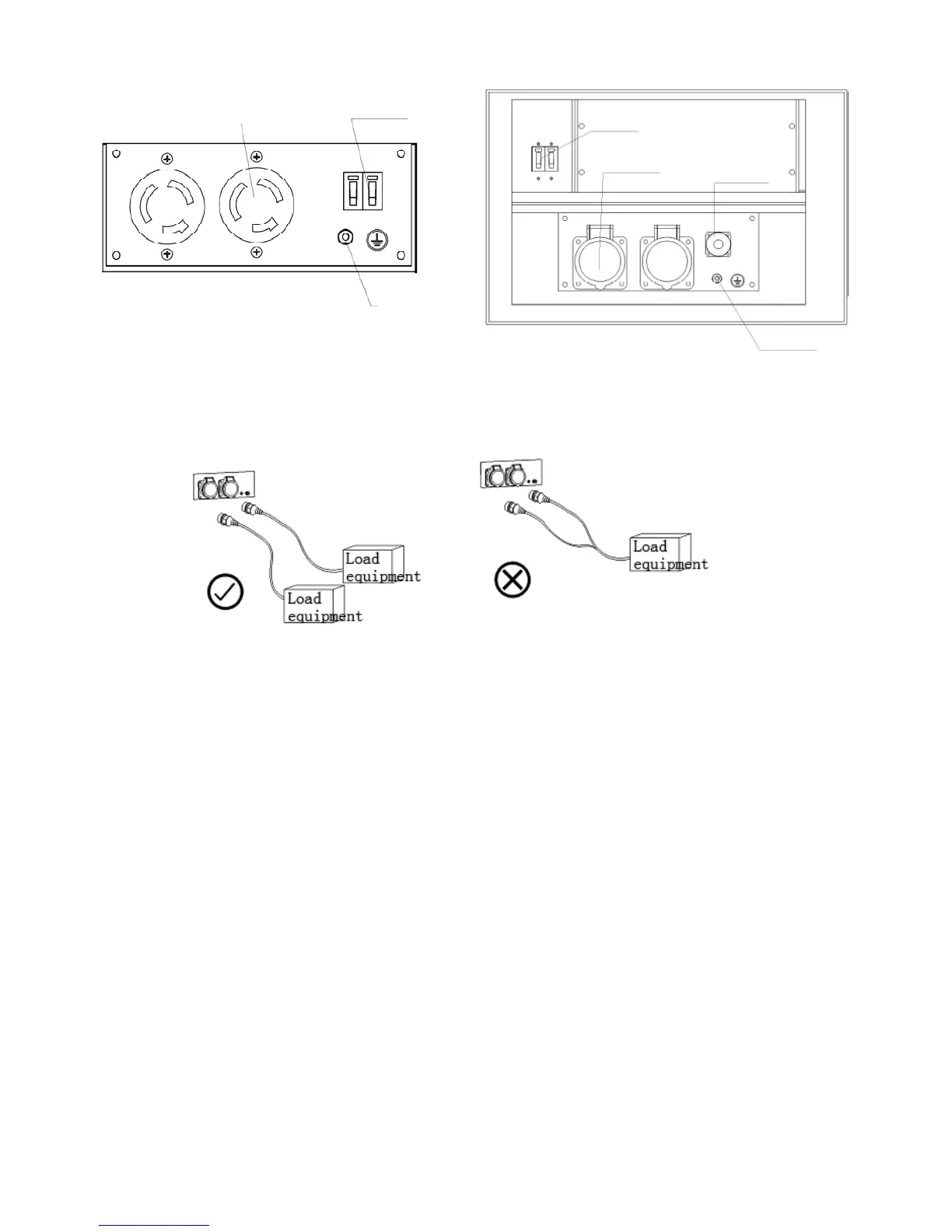

① Install a switch between output terminal and load to control the load connect. If supply the
electricity for the appliance by using the breaker directly, there will be fault with the breaker.
② When the generator is connected to the load, the breaker of the control box and junction plate
should be turn to OFF to stop the engine.
③ The cable that connected to load can't be connected to the other output terminal.
④ After connecting with load, close the junction box, and tighten the forcing screw securely.
4.4 Selection of 3-phase cable
【Attended operations】
Please select the cable with proper diameter after taking into account tolerable current of cable
and distance from generator to loading equipments.
If load current exceeds tolerable current, lead is burnt to damage due to over-heat. In addition,
following conditions also can cause lead damage such as too long cable, super-small diameter,
excessively large voltage-drop of lead, reduction of input voltage of loading equipments, or
reduction of efficiency of loading equipments.
● Choose the possible cable length and section within the range of 5% of rated voltage, and
you can calculate the value of the potential "e" in the following formula:
Single-phase
rece
