TP-6198 3/15 15Section 1 Specifications
1.6 Service Views
1
4
3
5
27
1718
2
12
21 20
26
13
7
28
8
10 11
19
6
22
24 23
14
1. Fuses (F1, F2, and F3)
2. Generator set master switch (RUN\OFF/RESET\AUTO)
3. Advanced Digital Control (ADC 2100)
4. Runtime hour display
5. Nameplate
6. Air cleaner
7. Oil check
8. Oil fill (on valve cover)
9. Coolant temperature sender
10. Fuel/air mixer
11. Pressure cap (engine water fill)
12. Coolant overflow tube
13. Radiator
14. Belt guard
15. Battery charging alternator
16. Low oil pressure switch
17. Coolant overflow bottle (daily coolant check/fill location)
18. Secondary fuel regulator
19. Fuel solenoid valve
20. Oil drain valve
21. Positive (+) battery connection point
22. Fuel inlet
23. Engine control module (ECM)
24. AC line circuit breaker panel
25. Exhaust connection
26. Spark plugs
27. Remote customer interface connector
28. Customer load lead access
29. Oil filter
30. Negative (--) battery connection point
31. Coolant drain
32. Cooling air inlet
2930
32
25
31
Service-Side View
Non Service-Side View
GM32850D-J
9
15
16

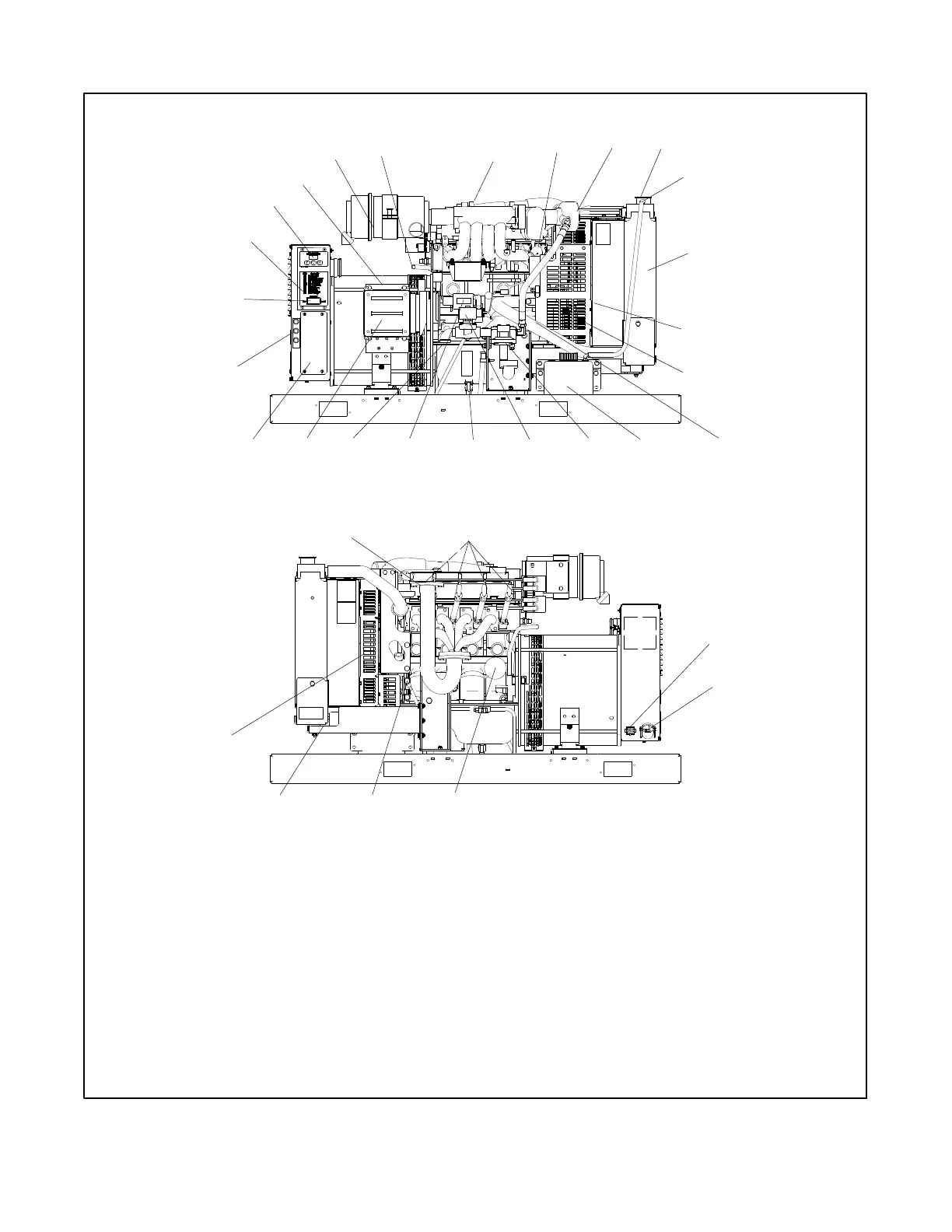

Figure 1-1 Generator Set Service View, RES/RYG Models
