Kohler 18EFKOZD User Manual

14 TP-7044 6/23
1. Emergency stop
18. Oil drain
2. Decision-Maker
®
3500 controller
19. Customer load lead connection
3. Nameplate (on front of controller)
20. Optional circuit breaker location
4. USB port
21. Fuel return connection
5. Air filter element
22. Fuel supply connection
6. Lifting eye
23. Heat exchanger internal to exhaust manifold
7. Oil filter cartridge cover
24. Anticorrosion zinc anode
8. Oil filter cartridge
25. Water cooled exhaust outlet
9. Coolant overflow bottle
26. Alternator cooling air inlet
10. Seawater inlet
27. Engine coolant drain
11. Seawater pump
28. Battery positive (+) connection
12. V-belt (battery charging alternator)
29. Battery negative (-) connection
13. Belt guard
30. Air outlet
14. Fuel pump
31. Seawater drain (remove hose clamp)
15. Oil check/dipstick
32. Coolant fill/coolant overflow tube
16. Oil drain valve (on engine)
33. Oil fill
17. Fuel filter

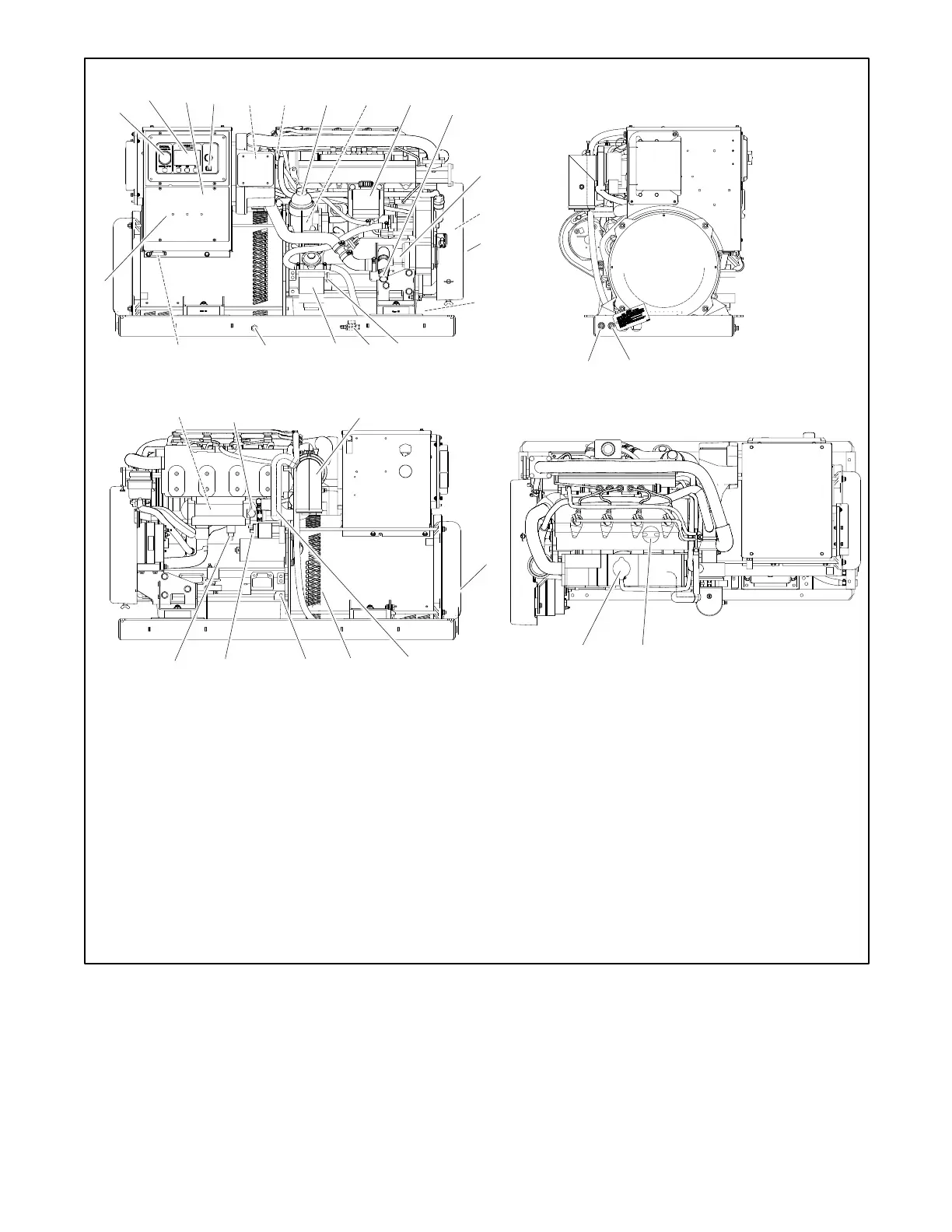

Figure 4 Service Views,Typical (32-40EKOZD and 28-35EFKOZD Models)
Note:
Consult installation drawings in the spec sheet or installation manual for more details. Consult an authorized distributor/dealer
or the service manual for items not shown.
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Service-Side View
21
End View
22
25
23
24
28
26
31
30
29
33
32
Non Service-Side View
Top View
ADV-9908
19
20
27
1
2
