1. Silencer vertical lift 1.2 m (4 ft.) max.
10. Intake strainer
2. Exhaust mixer elbow distance above waterline. If less
than 23 cm (9 in.), a siphon break is required.
11. Engine-driven seawater pump
3. Siphon break distance above waterline 30.5 cm
(1 ft.) min.
12. Exhaust hose pitch 1.3 cm per 30.5 cm (0.5 in. per ft.) min.
4. Siphon break
13. Water lock (optional)
5. Exhaust mixer elbow
14. Silencer distance from exhaust mixer elbow 3 m (10 ft.) max.
6. Heat exchanger (locations vary by model)
15. Maximum distance between silencer and exhaust outlet of 1.5 m
(5 ft.)
7. Coolant recovery tank
16. Silencer (customer supplied)
8. Seawater strainer
17. Exhaust hose pitch 1.3 cm per 30.5 cm (0.5 in. per ft.) min.
9. Seacock
18. Exhaust outlet distance above the waterline 10 cm (4 in.) min.

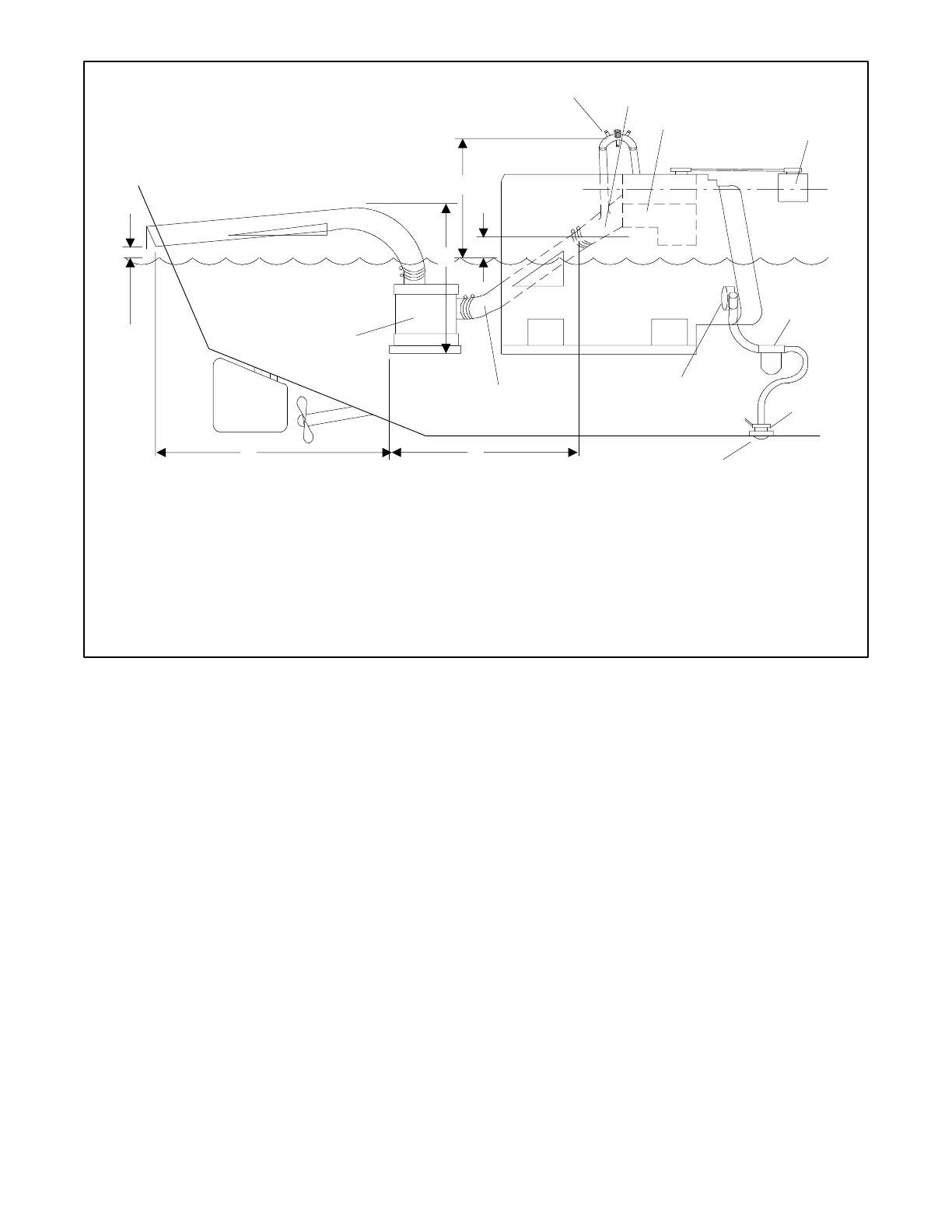

Figure 43 Siphon Break (Plastic “U” Type) Installation
Note:
Consult the installation manual for complete explanation of dimensions and other installation considerations.
TP-5586-3
1
15
14
3
2
4
5
6
7
8
9
10
11
12
13
16
17
18
Waterline
