Reassembly
14 690 01 Rev. G KohlerEngines.com

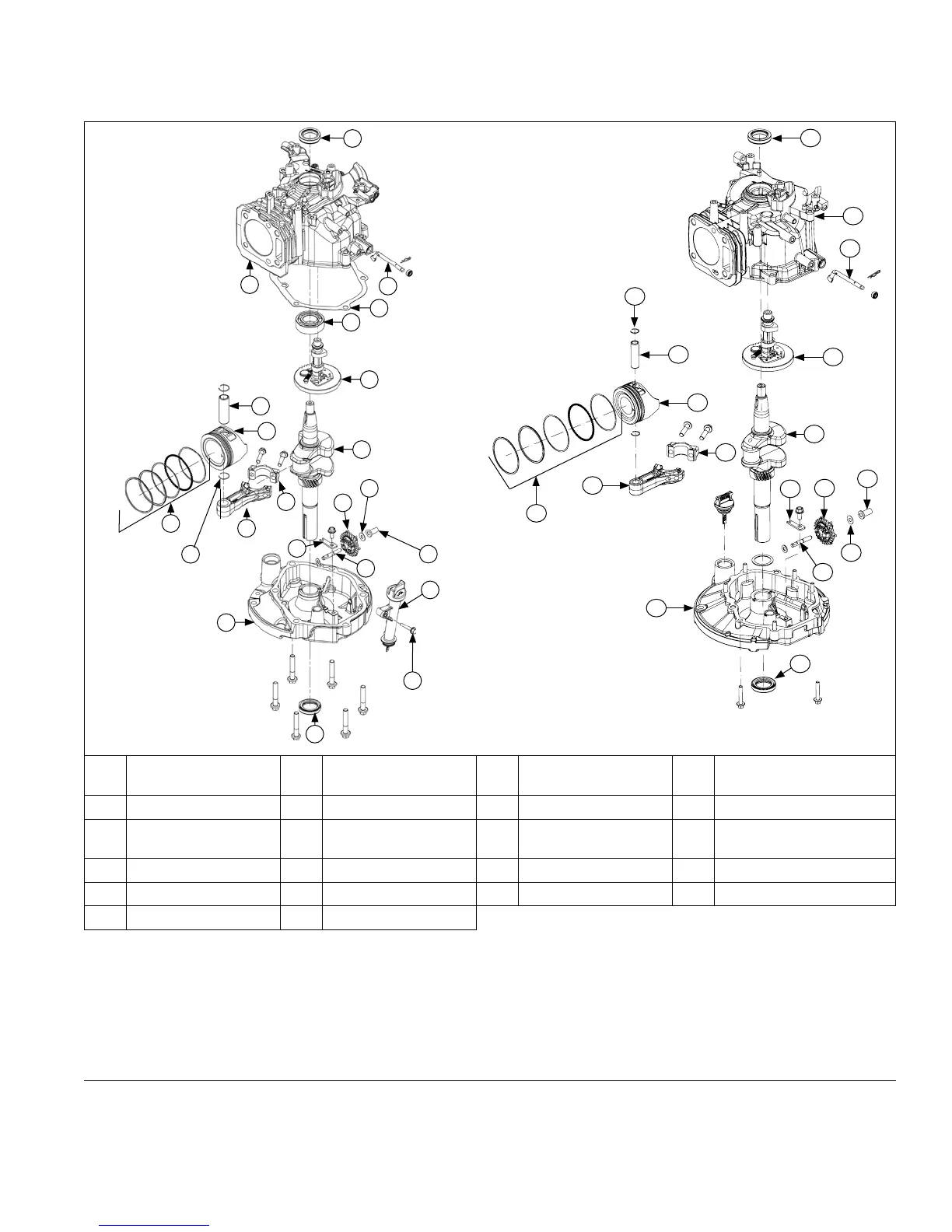

Crankcase Components
T
R
O
N
Q
P
K
L
B
C
M
S
F
H
I
G
E
D
A
J
V
U
A Crankcase Oil Seal B Crankcase C
Governor Cross
Shaft
D Oil Pan Gasket
E Crankcase Bearing F Camshaft G Piston Pin Retainer H Piston Pin
I Piston J Piston Ring Set K Connecting Rod L
Connecting Rod
End Cap
M Crankshaft N Retainer O Governor Shaft P Governor Gear
Q Governor Washer R Governor Cup S Oil Pan T Oil Pan Oil Seal
U Dipstick Tube V Screw
NOTE: Make sure engine is assembled using all specied torque values, tightening sequences, and clearances.
Failure to observe specications could cause severe engine wear or damage.
NOTE: Always use new gaskets.
NOTE: Make sure all components have been properly cleaned BEFORE reassembly.
NOTE: Remove all traces of cleaners before engine is reassembled and placed into operation. Even small amounts
of these cleaners can quickly break down lubricating properties of engine oil.
Install Crankshaft
Carefully install crankshaft into crankcase through front seal, and fully seat into place. Rotate crankshaft until journal
for connecting rod is away from cylinder.
A
B
C
G
F
H
I
J
K
L
M
O
R
P
Q
S
T
N
