Reassembly
14 690 01 Rev. G KohlerEngines.com
NOTE: When installing oil pan, ensure plunger on
governor gear is pressed fully into governor.
Incorrectly installing governor plunger may result
in damage.
NOTE: Some engines use an oil pan gasket; some
engines use RTV to secure oil pan to crankcase.
1. Sealing surfaces of crankcase and oil pan should be
clean, dry and free of any nicks or burrs.
2. Install 2 crankcase dowels into crankcase.
3. OIL PAN GASKET: Using crankcase dowels as a
guide, install a new oil pan gasket onto crankcase.
RTV: Refer to Tools and Aids for a listing of
approved sealants. Always use fresh sealant. Using
outdated sealant can result in leakage. Using
sealant pattern, apply a 1.5 mm (1/16 in.) bead of
sealant to sealing surface of oil pan.
4. Guide oil pan onto crankcase, ensuring camshaft
and governor gear align with their mating surfaces.
Rotate crankshaft slightly to help engage governor
gear.
5. Install and nger tighten screws, securing oil pan to
crankcase.
6. Use torque sequence shown and torque oil pan
screws to:
Model Torque
XT6, XTR-6
11.0 N·m (98 in. lb.)XT6.5, XT6.75
XT650, XT675
XT-7, XTR-7
14.7 N·m (130 in. lb.)
XT775, XT8

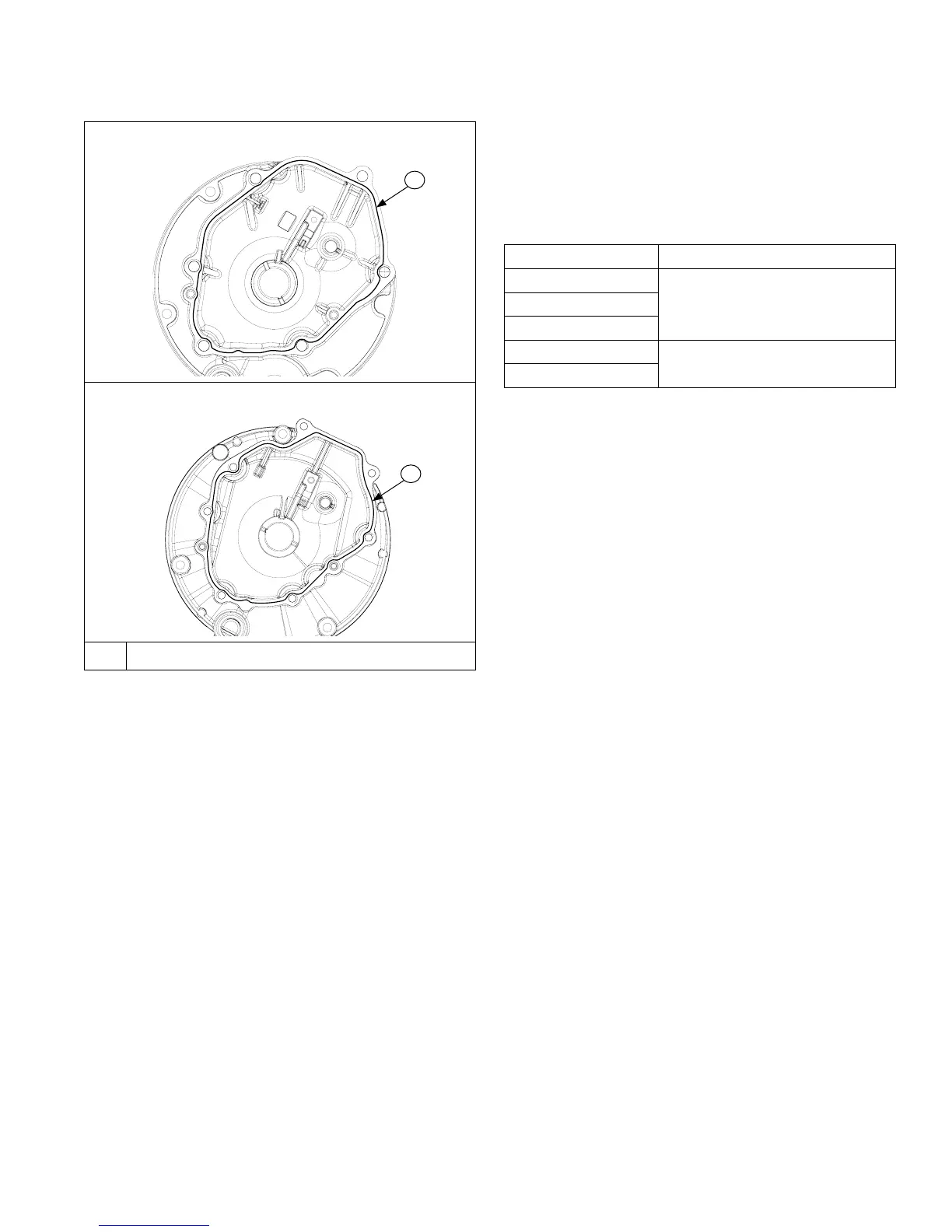

Sealant Pattern
XT775, XT8
XT6.5, XT6.75
A 1.5 mm (1/16 in.) bead of sealant.
A
A
