Air Cleaner/Intake
32 690 03 Rev. E KohlerEngines.com

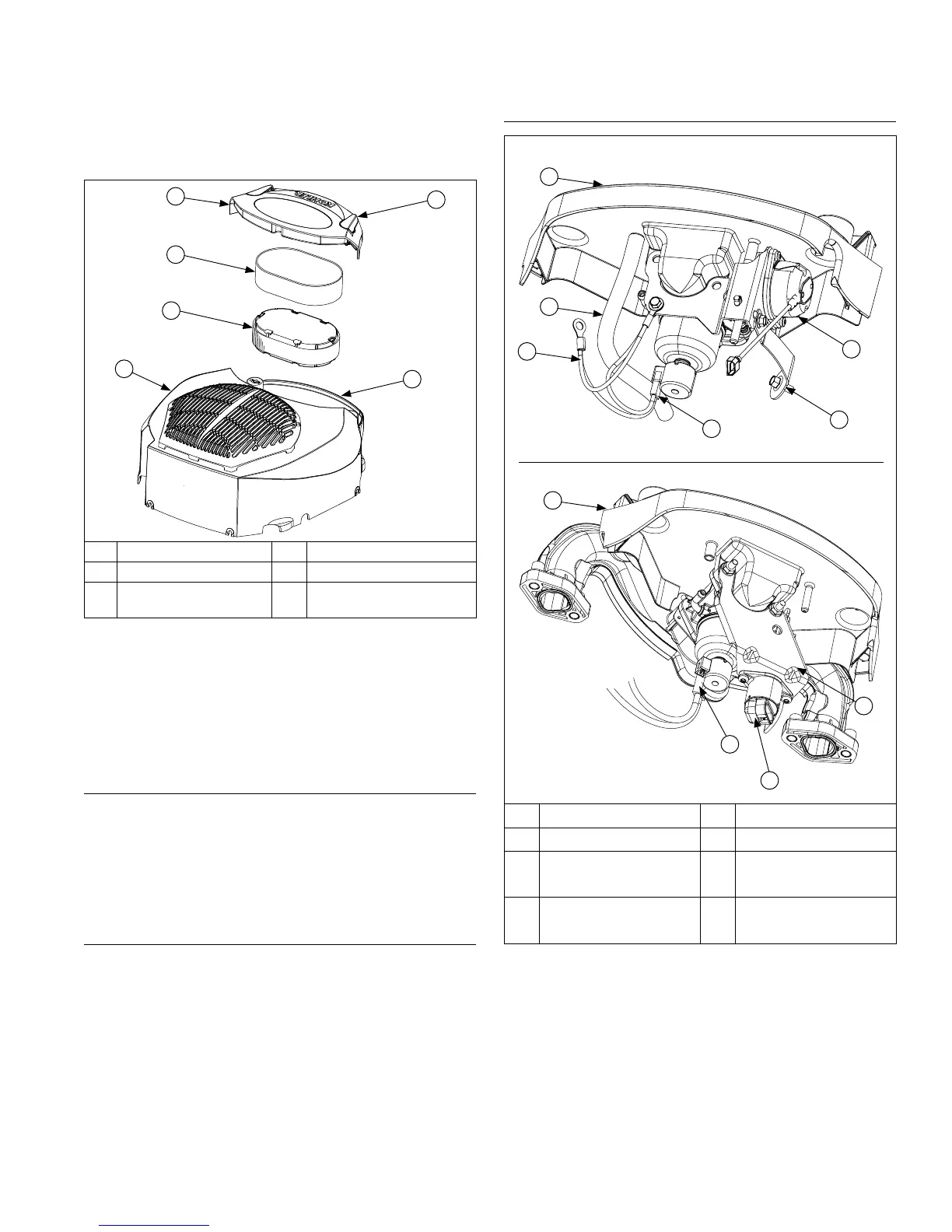

Air Cleaner Base
A
B
F
C
D
E
A
G
D
H
A Air Cleaner Base B Breather Hose
C Ground Lead D Solenoid Lead
E
Smart-Choke
™
Bracket Assembly
F Thermostat
G
eChoke
™
Bracket
Assembly
H Stepper Motor
AIR CLEANER
These systems are CARB/EPA certied and components
should not be altered or modied in any way.
Air Cleaner Components
F
D
C
B
A
E
A Precleaner B Paper Element
C Air Cleaner Cover D Blower Housing
E
Air Cleaner
Cover Lever
F Air Cleaner Base
NOTE: Operating engine with loose or damaged air
cleaner components could cause premature
wear and failure. Replace all bent or damaged
components.
NOTE: Paper element cannot be blown out with
compressed air.
Rotate air cleaner cover levers outward to unlock cover;
remove air cleaner cover.
Precleaner (if equipped)
1. Remove precleaner from paper element.
2. Replace or wash precleaner in warm water with
detergent. Rinse and allow to air dry.
3. Lightly oil precleaner with new engine oil; squeeze
out excess oil.
4. Reinstall precleaner over paper element.
Paper Element
1. Remove element from base; service precleaner.
Discard element.
2. Install precleaner over new paper element and install
on base.
Position air cleaner cover with levers outward over air
cleaner; turn levers inward to lock.
