Emission Compliant Systems
32 690 03 Rev. E KohlerEngines.com

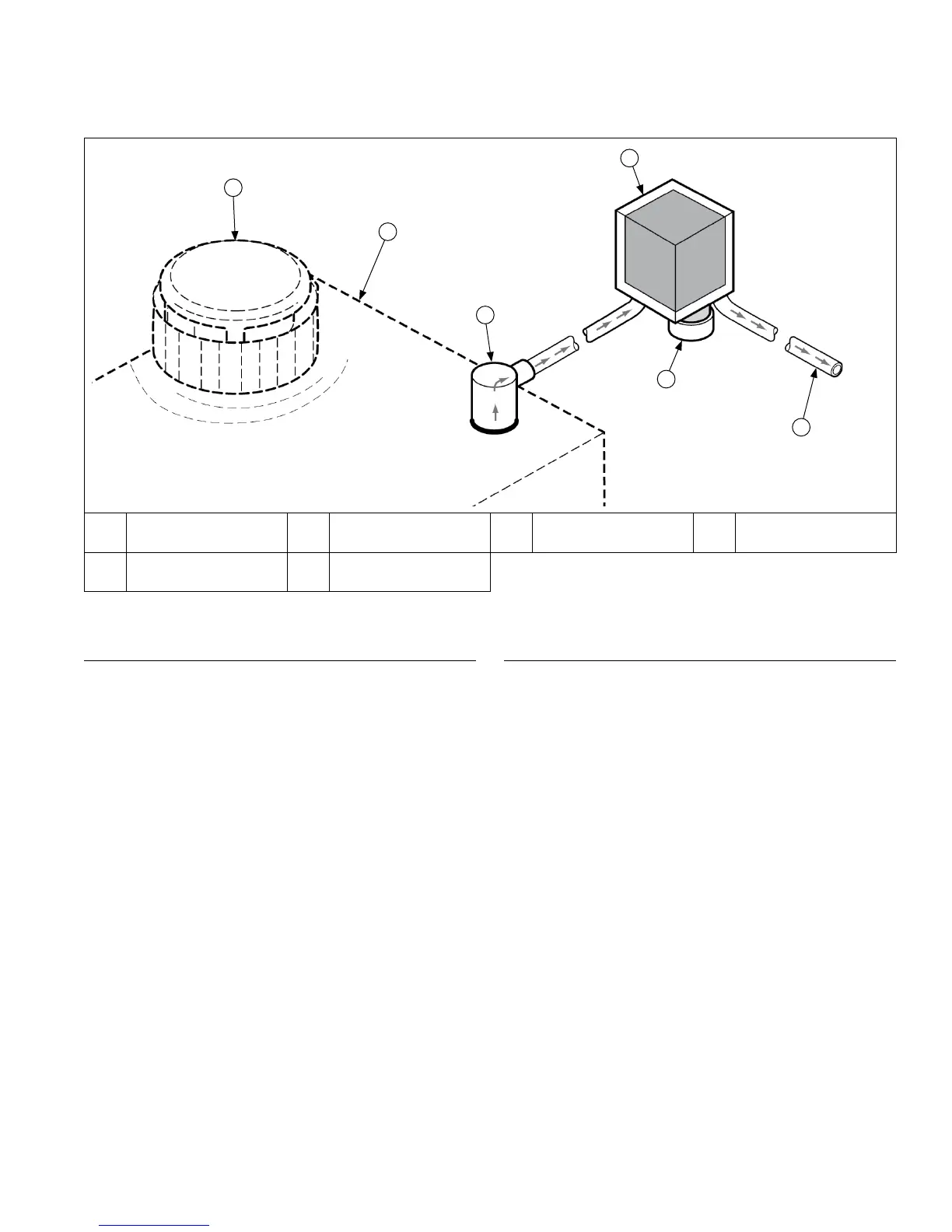

EVAPORATIVE EMISSION COMPLIANT SYSTEM
Carbon Canister System
A Fuel Tank Cap B Fuel Tank C
Roll Over Valve
(ROV)
D Carbon Canister
E
Canister Breather
Filter
F To Carburetor
A
B
C
D
E
F
Operation
Fuel vapors travel from fuel tank through tubing to
carbon canister. On intake stroke of engine fuel vapors
are drawn in through a port in carburetor and burned
with fuel charge.
Maintenance
On Kohler-supplied canisters, breather lter can be
removed and cleaned with hot soapy water, dried and
reinstalled. Do not oil breather screen. This is done
periodically or if system operation is suspect. Carbon
canister is sealed and requires no maintenance.
In some applications or installations, OEM will have
installed a different canister or fuel vapor recovery
system. See OEM equipment documentation for service
or maintenance information.
For engine to be Tier III compliant, it may be tted with a Kohler supplied canister vapor recovery system, or a system
developed and installed by Original Equipment Manufacturer (OEM). Details on Kohler system are included below.
