OPERATION

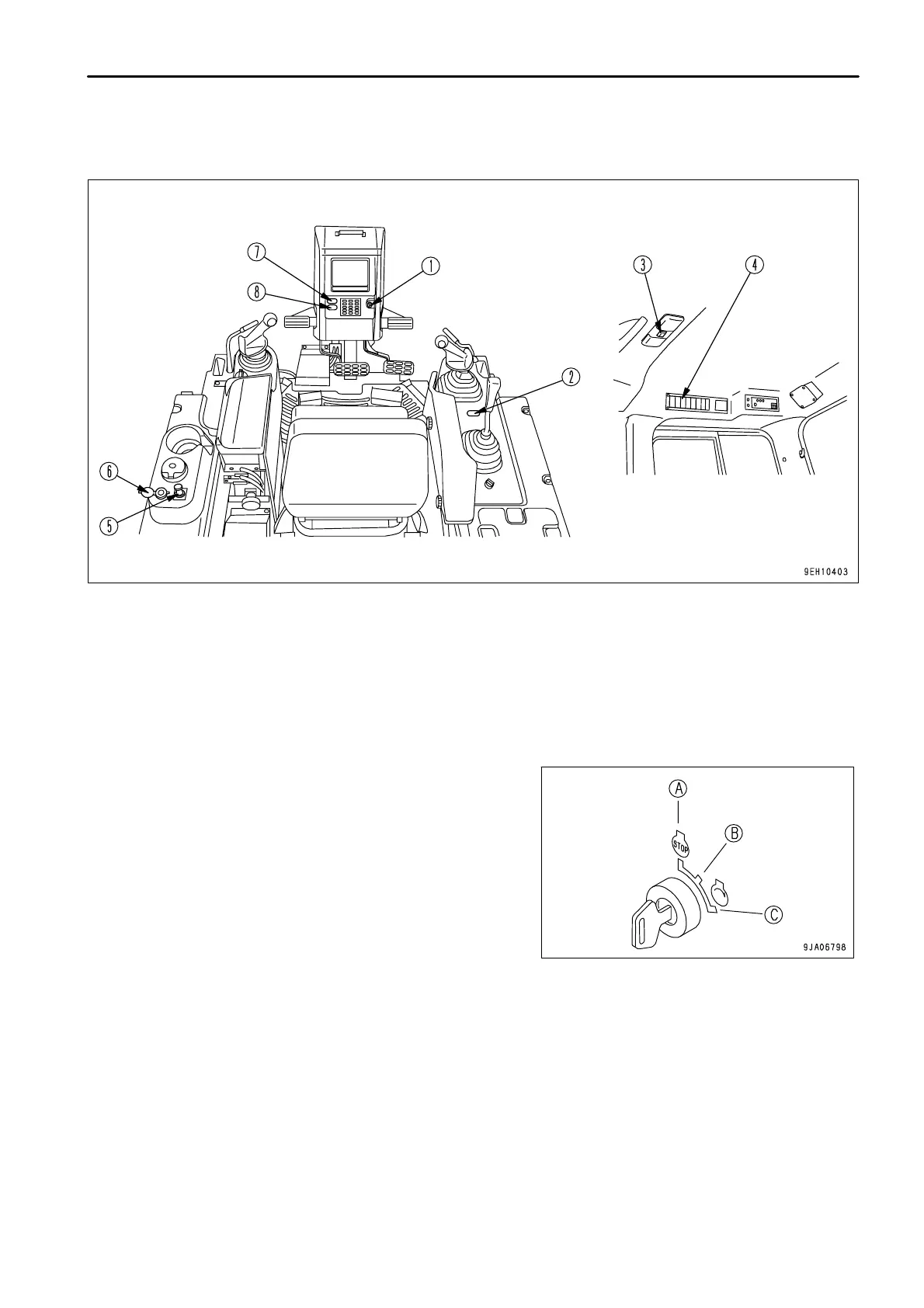

EXPLANATION OF COMPONENTS
SWITCHES
(1)
(2)
(3)
(4)
Starting switch
Horn switch
Room lamp switch
Wiper switch
(5)
(6)
(7)
(8)
Cigarette lighter (24V)
Accessory socket (12V)
Front lamp switch
Rear lamp switch
STARTING SWITCH
This switch (1) is used to start or stop the engine.
(A): OFF position
At this position, the starting switch key can be inserted and
removed. When the switch is turned to this position, all the electric
circuits are turned off and the engine stops.
(B): ON position
In this position, electric current flows in the charging and lamp
circuits.
Keep the starting switch key at the ON position while the engine is
running.
(C): START position
This is the position to start the engine. Hold the key at this position
while cranking the engine. Release the key immediately after the
engine has been started. The key will return to ON position (B)
when released
