OPERATION
EXPLANATION OF COMPONENTS

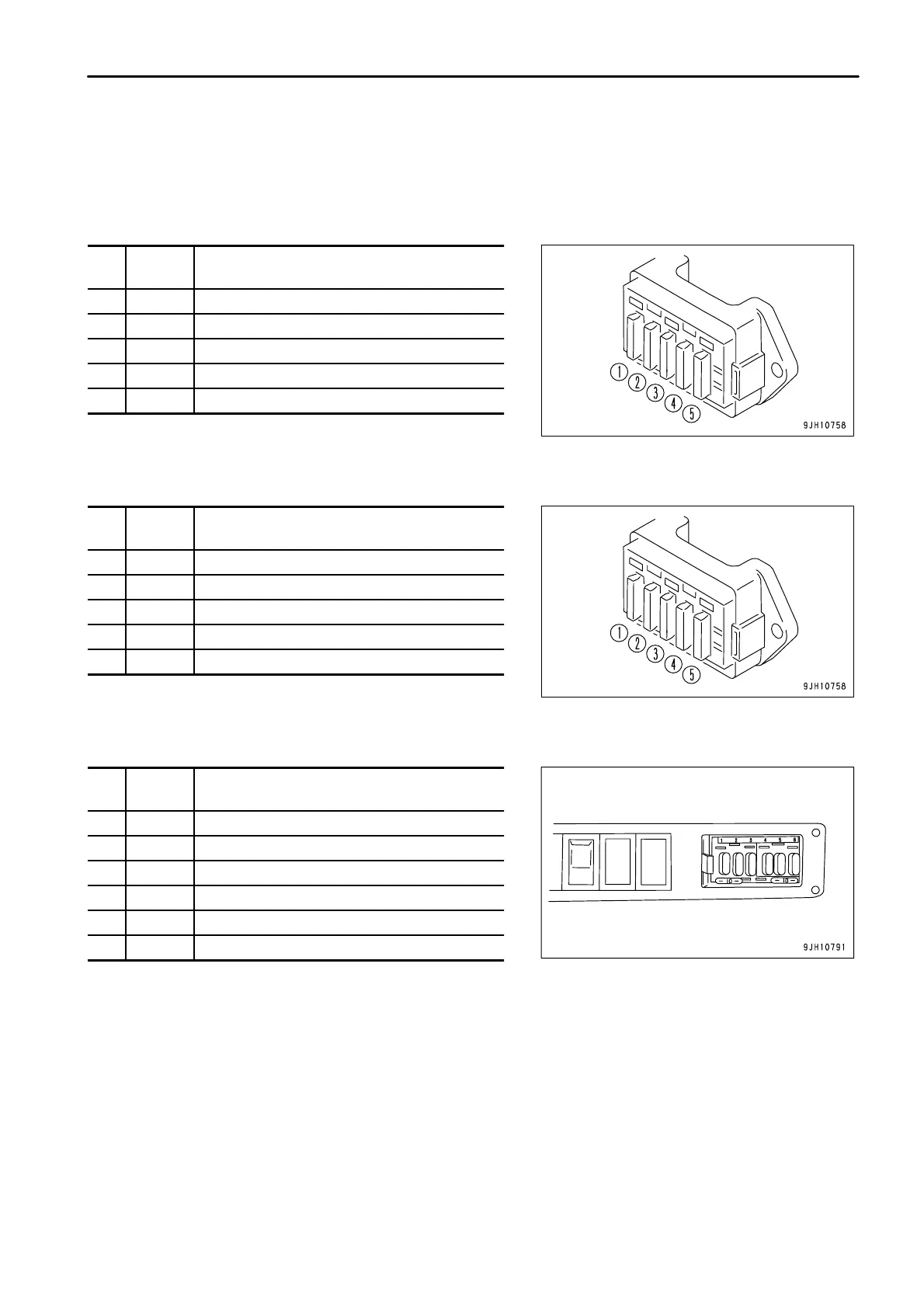

FUSE CAPACITY AND NAME OF CIRCUIT
FUSE BOX I
(1) Fuse box fs1
NO.
Fuse
capacity
Circuit
1 20A Permanently ON power source
2 5A Backup alarm
3 20A Main power source 1
4 20A Main power source 2
5 5A ACC signal (engine)
(2) Fuse box fs2
NO.
Fuse
capasity
Circuit
1 5A Pedal brake
2 5A Pearking brake
3 20A Pin puller, ribbon heater
45AHorn
5 20A Key ACC
FUSE BOX II
NO.
Fuse
capasity
Circuit
(1) 10A Radio
(2) 20A Additional work lamp
(3) 20A 12V socket
(4) 20A Radio, lamp, cigarette lighter
(5) 10A Front wiper, rear wiper
(6) 10A Left and right door wiper
3 - 65
