OPERATION
EXPLANATION OF COMPONENTS

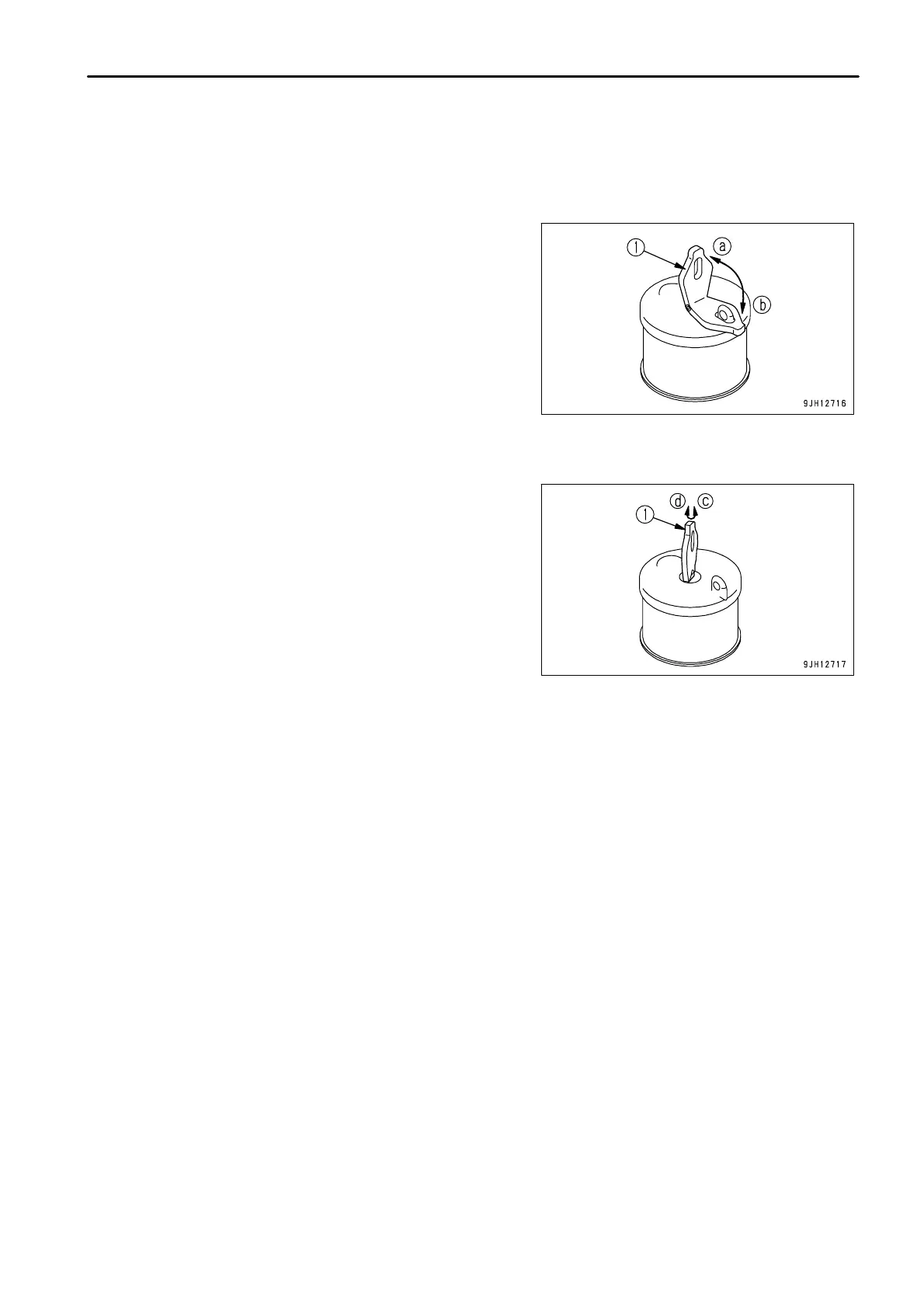

METHOD OF OPENING FUEL CAP
The method of opening or closing the fuel tank cap is as follows.
OPENING THE CAP
1.
Raise lever (1) in the (a) direction.
2.
When lever (1) is turned in the (c) direction (counterclockwise)
by approx 35°, it stops at the stopper, and the cap can be
opened.
CLOSING THE CAP
1.
After turning lever (1) in the (c) direction (counterclockwise),
keep it in that position and fit the cap.
2. Turn lever (1) in the (d) direction (clockwise) until it stops at the
stopper, and then tilt it in the (b) direction.
3 - 67
