Komatsu GD755-5R User Manual

Introduction
1: Park the machine on a flat ground, lower the blade to the ground, and then start the work.
2: When selecting the parking place, consider the size and weight of the machine.
3: A space about 6 m high is necessary for installation of the cab.
4: Before starting the work, read this manual through.
* To remove the cab, perform the procedure in this manual in the reverse order.
Workflow Items in this manual
1: Removal of parts on floor side
2: Removal of exterior parts on floor side
3: Removal of floor mounting bolts
4: Removal of parts on cab side
5: Installation of cab
6: Connections with chassis
7: Restoration of parts around floor
8: Check of each operation
9: End of work
Q't
y
Name Q't
y
Others
Precautions
1 × 2 ×
Tools to be used
Name
Introduction (1/2)
Facilities to be used
Assembly procedure
5 ×
NO.0000
3 × 4 × 6 ×
G

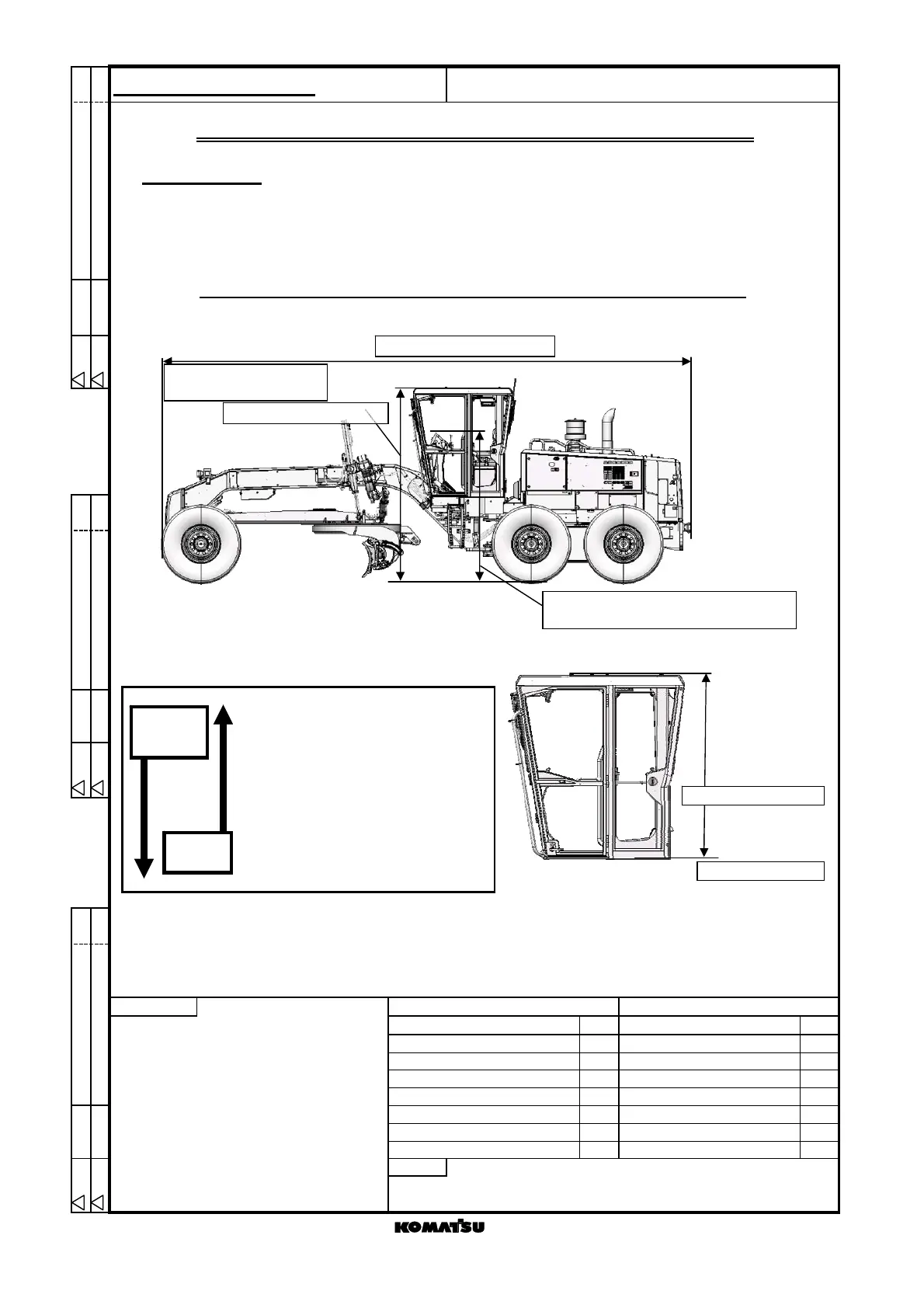

D755-5R Installation procedure o
f
operator's cab
Overall length: 9,580 mm
Overall width: 2,800 mm
Wei
g
ht: 21
,
700 k
g
To top of steering post: 2,690 mm
(
when
p
ost is at max. hei
g
ht
)
Cab height: 1,995 mm
Overall height: 3,515 mm
Cab weight: 860 kg
Installation
of cab
Removal
of cab
1
