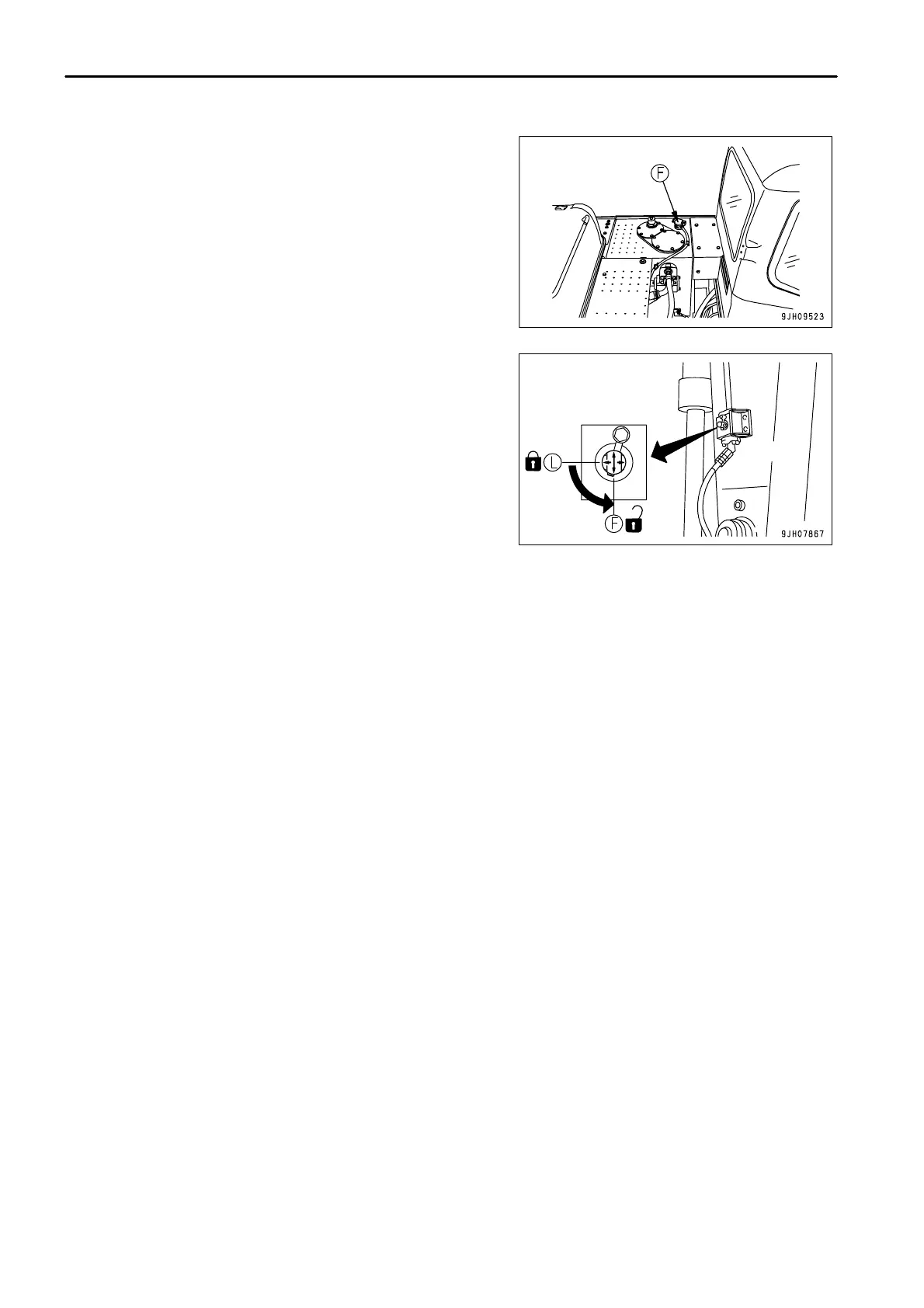

7. Loosen slowly oil filler cap (F) on top of the hydraulic tank to
eliminate the internal pressure in the hydraulic circuit.
8.
After confirming low oil temperature, remove the plug from the
outlet and inlet port respectively.
Take care that no dust, mud etc. adheres to the hose
mousepiece portions.
If O-ring is damaged, replace it with a new one.
9. Connect the hose at the attachment side.
When doing this, check the direction of flow of the oil and be
careful not to make any mistake.
10. Turn the rotor on the stop valve installed to the piping for the
inlet port and outlet port on the side face of the arm to the FREE
position (F).
11. After installing the attachment, check the oil level in the
hydraulic tank.
6 - 16
