OPERATION
DETAILED CONTROLS AND GAUGES
DETAILED CONTROLS AND GAUGES
The following is an explanation of devices needed for operating the machine.
To perform suitable operations correctly and safely, it is important to completely understand methods of operating
the equipment, and the meanings of the displays.

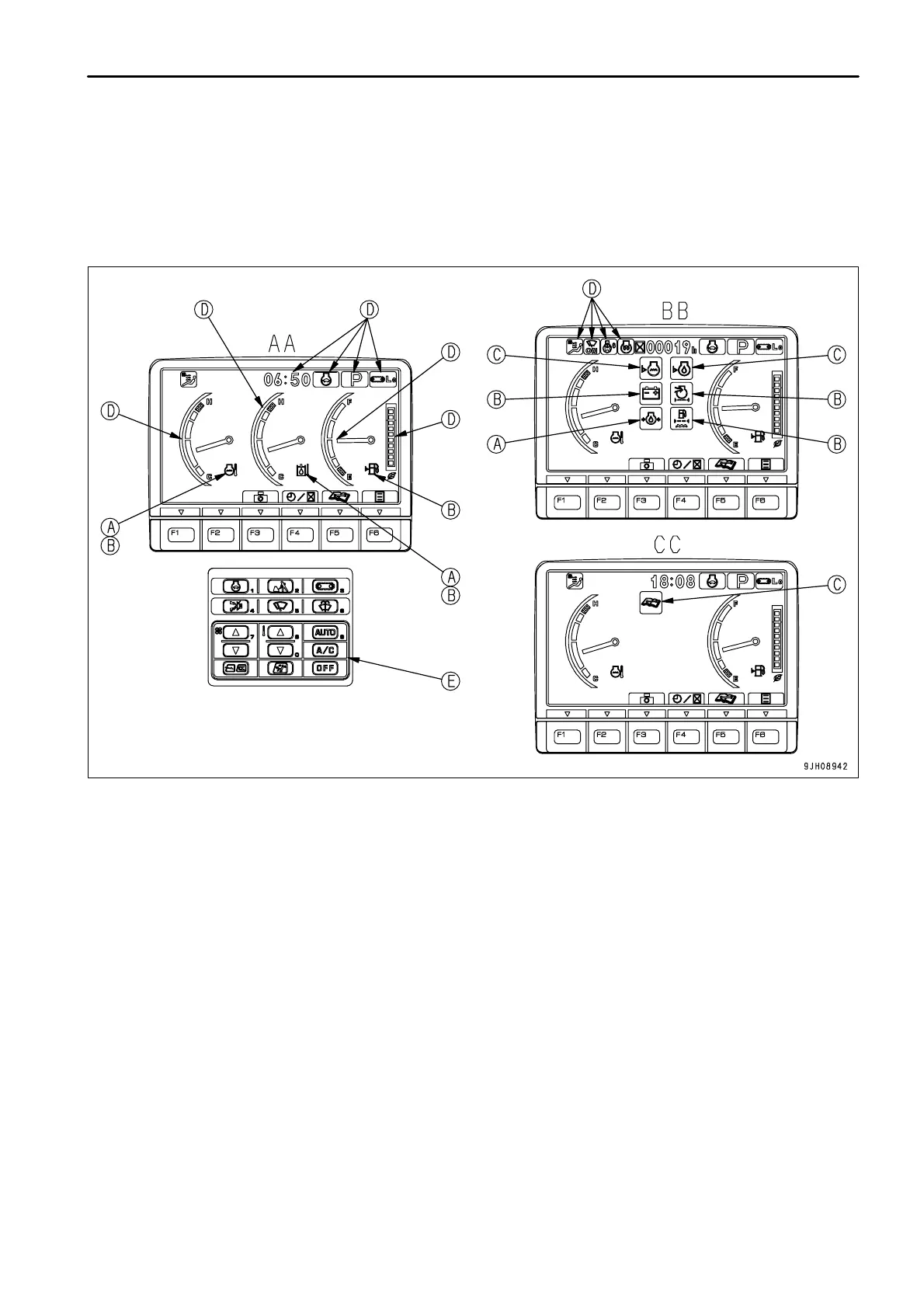

MONITORING SYSTEM
AA: Screen for standard
BB: Screen with all lamps lighted up
CC: Maintenance time warning screen
(A)
(B)
(C)
Emergency monitors
Caution monitors
Basic check monitors
(D)
(E)
Meter display portion,pilot display
Monitor switches portion
REMARK
One of the features of liquid crystal display panels is that there may be black spots (spots that do not light up) or white
spots (spots that stay lighted up) on the screen. If there are fewer than 10 black or white spots, this is not a failure
or a defect.
3 - 5
