EXPLANATION OF COMPONENTS OPERATION
88 PW160-7H VEAM390100

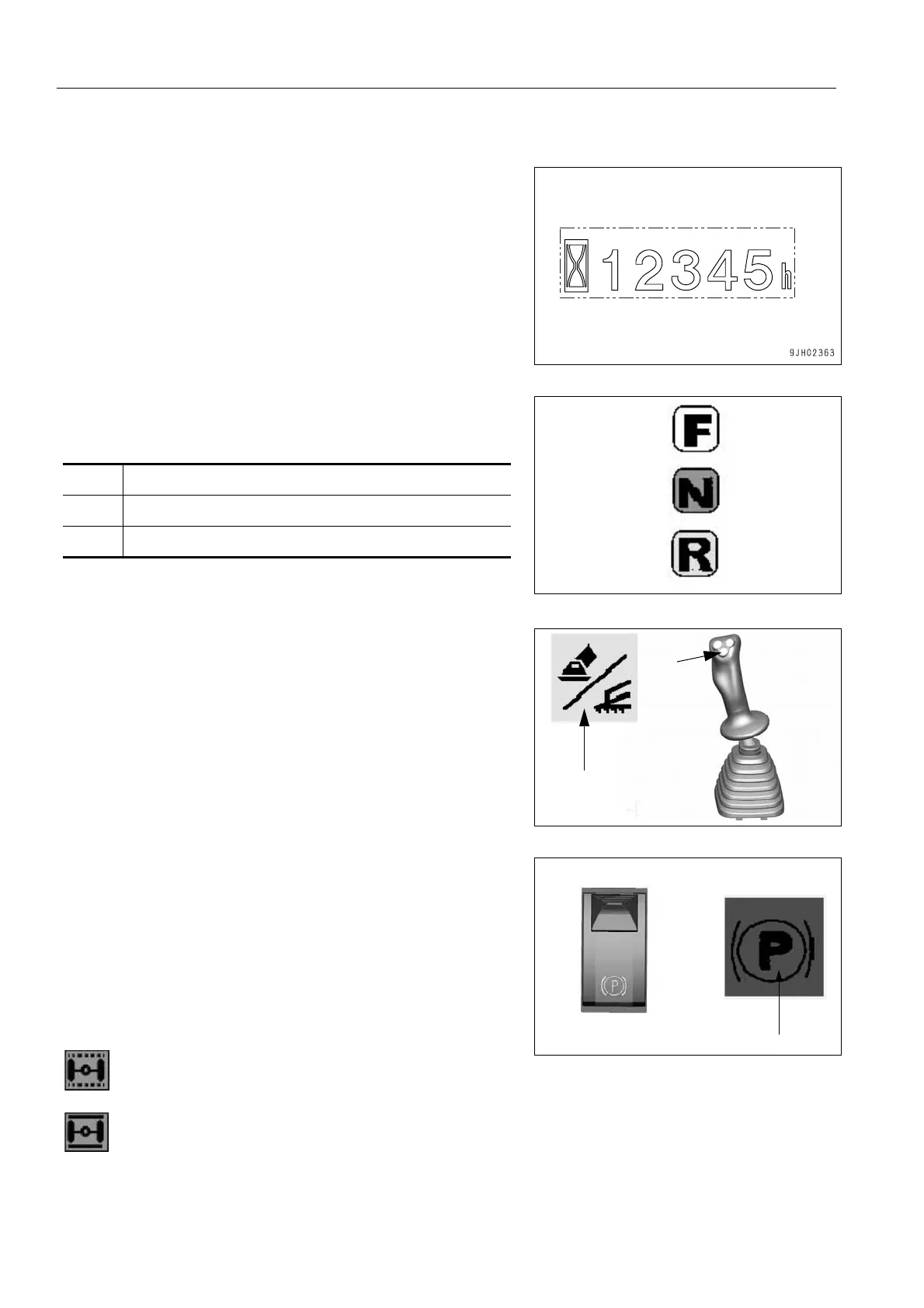

10. SERVICE METER AND CLOCK
This monitor (10) displays the total time that the machine has
been operated. When the engine is running this display changes
to a clock.
Use the time display to set the maintenance interval. When the
starting switch is ON, the service meter advances even if the
machine is not moving.
The service meter advances by 1 for every hour of operation,
regardless of the engine speed.
11. TRAVEL DIRECTION SELECTION
This monitor (11) displays the set travel direction.
When one of the travel direction switches is selected the monitor
displays one of the following selections.
12. UNDERCARRIAGE ATTACHMENT MONITOR
When undercarriage attachment is selected from right control
lever switch (3) monitor (12) will be displayed. This symbol will
remain until undercarriage attachment has been deselected.
13. PARK BRAKE
This lamp (13) will illuminate when the park brake is switched on
and when the cautions, indicators or error codes are displayed
this lamp (13) minimises to the bottom of the screen.
14. SUSPENSION LOCK
This monitor (14) displays the set suspension lock mode. When
one of the suspension lock switches is selected the monitor dis-
plays one of the following selections.
- Auto suspension lock mode
- Permanent suspension lock
MONITOR SWITCHES
F Forward mode
N Neutral mode
R Reverse mode
3
12
13
