KGP-1
(Original Instructions)
2-3
P/N 810498 Rev C
© 2021 Konami Gaming Inc.
SECTION 2 - SET UP

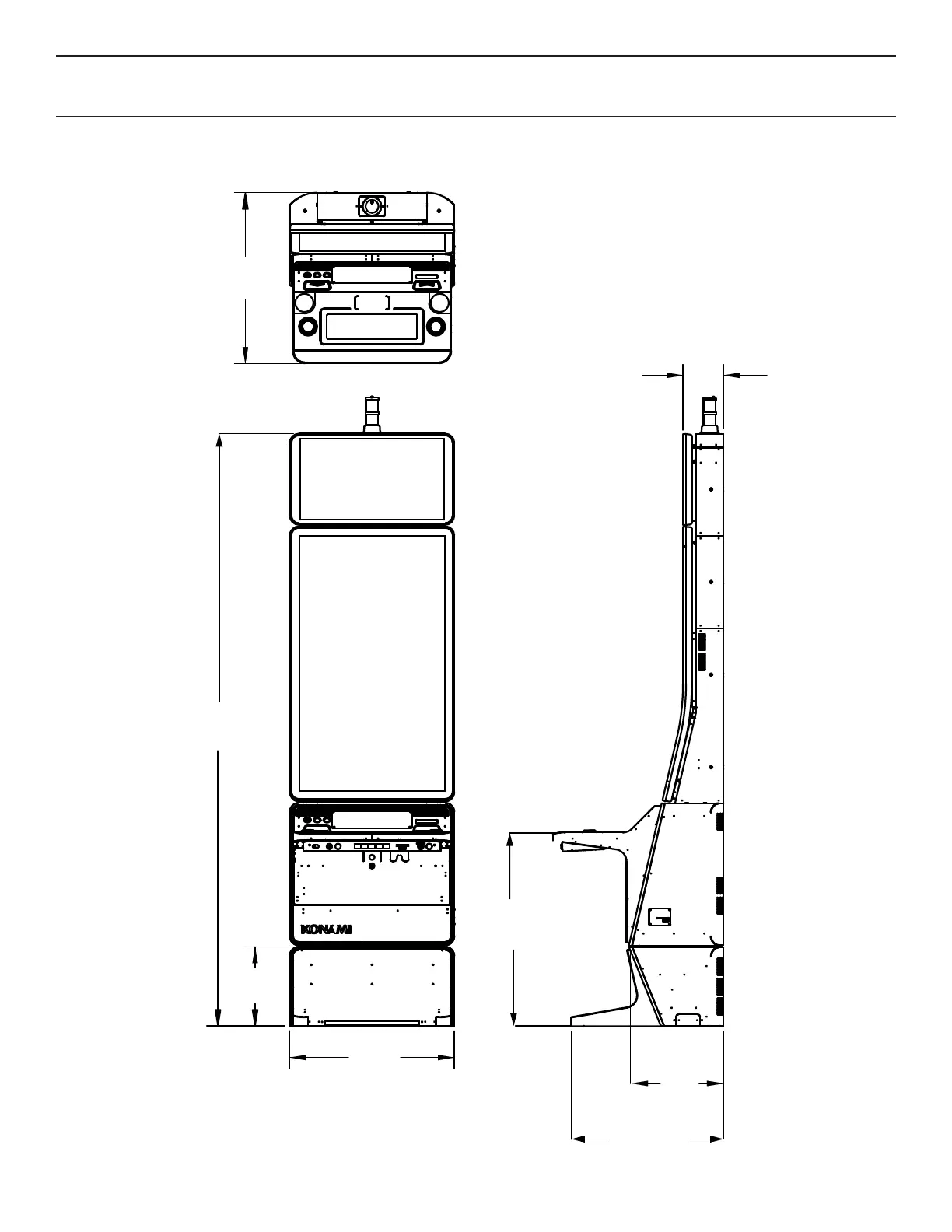

Dimension 49J With T
opper
(net weight: 410 lb� / 186 kg�)
97.22
[246.94 cm]
13.00
[33.02 cm]
27.00
68.58 cm
31.82
[80.82 cm]
24.95
[63.37 cm]
15.88
[40.33 cm]
[71.12 cm]
28.00
[16.81 cm]
6.62
10
12
Table of Contents
Table of Contents
3
Customer Support
6
Shipping Charges
6
Warranty and Return Merchandise (Rma)
6
Process
6
Warranty Policy
6
RMA Process
6
RMA Tag
6
Radio Interference
7
Features
7
Hardware Features
7
Hardware Options
7
Bill Validators
7
Printers
7
Overview
7
Section 1 - Introduction
7
Section 2 - Set up
7
Section 3 - Parts, Assemblies & Hardware
7
Section 4 - Troubleshooting
8
Section 5 - Preventive Maintenance
8
Section 6 - Wiring Diagrams & Electrical Com
8
Terminology
8
Notices
8
Set-Up
9
Overview
9
Kgp-1 Models
10
Dimension 49J
10
Dimension 49J with Topper
11
Dimension 49J with Topper (no Stand)
12
Dimension 49
13
Dimension 49 with Topper
14
Dimension 49 with Topper (no Stand)
15
Dimension 27
16
Dimension 27 with Small Topper
17
Dimension 27 with Large Topper
18
Dimension 27 with Topper (no Stand)
19
Environmental Specifications
20
Unpacking and Inspecting
20
Candle Installation
20
Candle Pin Assignment
21
Drop Box Switch Connection
21
Check Drop Box Switch Operations
21
Slot Accounting System (Sas) Connections
21
Overview
21
Player Tracking Panel
22
Removal
22
Installation
22
Fiber Optic Interface
22
Cabinet Installation
22
Opening and Closing the Doors
22
Belly Door
22
Main Deck
22
Logic Unit Door
23
Cashbox Door
23
Stand Door
23
Changing Locks
23
Lock Dimensions
23
Lock Hardware
23
Lock Cams
24
General Lock Replacement
24
Belly Door Lock Replacement
24
Logic Unit Door Lock Replacement
24
