KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your HDMI/RS-232/IR Line Transmitter / Receiver
6
4.1 Your TP-573 HDMI/RS-232/IR Line Transmitter
Figure 1
and Table 1 define the TP-573:

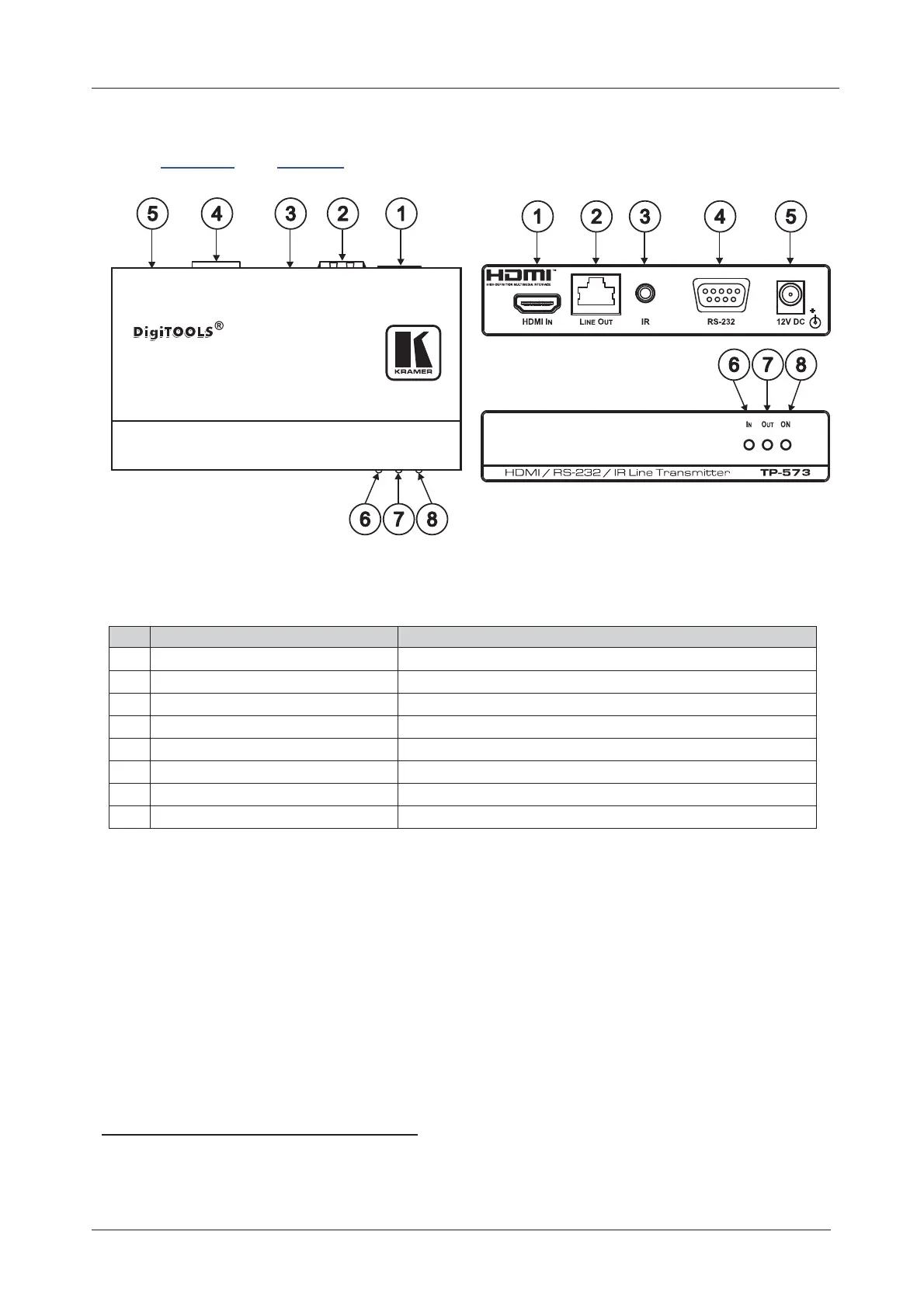

Figure 1: TP-573 HDMI/RS-232/IR Line Transmitter
Table 1: TP-573 HDMI/RS-232/IR Line Transmitter Features
# Feature Function
1 HDMI IN Connector Connects to the HDMI source
2 LINE OUT RJ-45 Connector Connects to the CAT 5 IN RJ-45 connector on the TP-574
3 IR 3.5mm Mini Jack Connector Connects to an infrared receiver/emitter
1
4 RS-232 9-pin D-sub Connector Connects to an RS-232 port
5
12V DC
+12V DC connector for powering the unit
6 IN LED Lights when an HDMI input device is connected
7 OUT LED Lights when an HDMI output device is detected
8 ON LED Lights when receiving power
1 Compatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or
C-A35M/2IRE
