Your HDMI/RS-232/IR Line Transmitter / Receiver
7
4.2 Your TP-574 HDMI/RS-232/IR Line Receiver
Figure 2
and Table 2 define the TP-574:

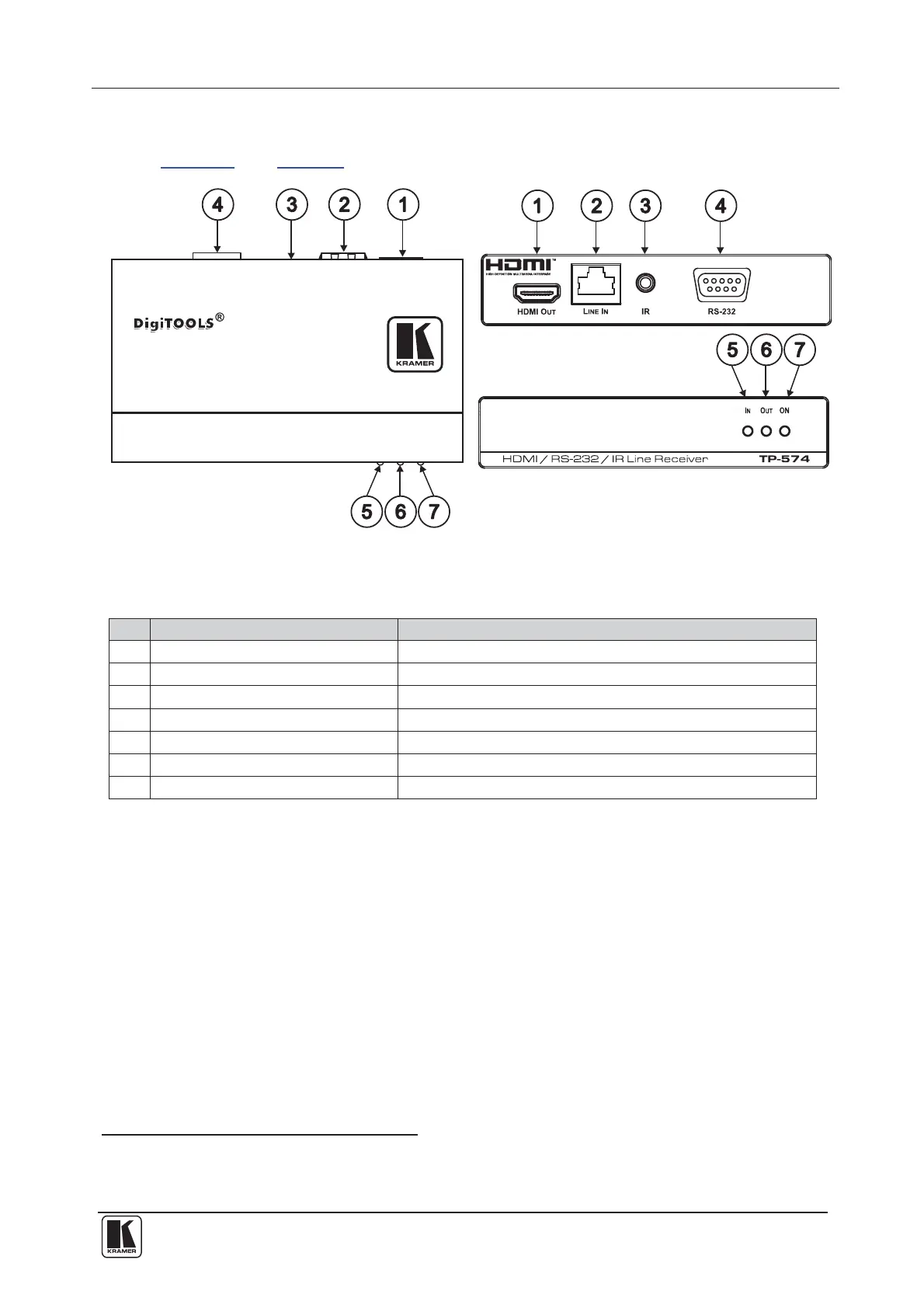

Figure 2: TP-574 HDMI/RS-232/IR Line Receiver
Table 2: TP-574 HDMI/RS-232/IR Line Receiver Features
# Feature Function
1 HDMI OUT Connector Connects to the HDMI acceptor
2 LINE IN RJ-45 Connector Connects to the CAT 5 IN RJ-45 connector on the TP-573
3 IR 3.5mm Mini Jack Connector Connects to an infrared emitter/receiver
1
4 RS-232 9-pin D-sub Connector Connects to an RS-232 port
5 IN LED Lights when an HDMI input device is connected
6 OUT LED Lights when an HDMI output device is detected
7 ON LED Lights when receiving power
1 Compatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or
C-A35M/2IRE
