Kramer PT-580T User Manual

PT-580T/TP-580T/TP-580R - Overview
9
9
3.7 Defining the PT-580T

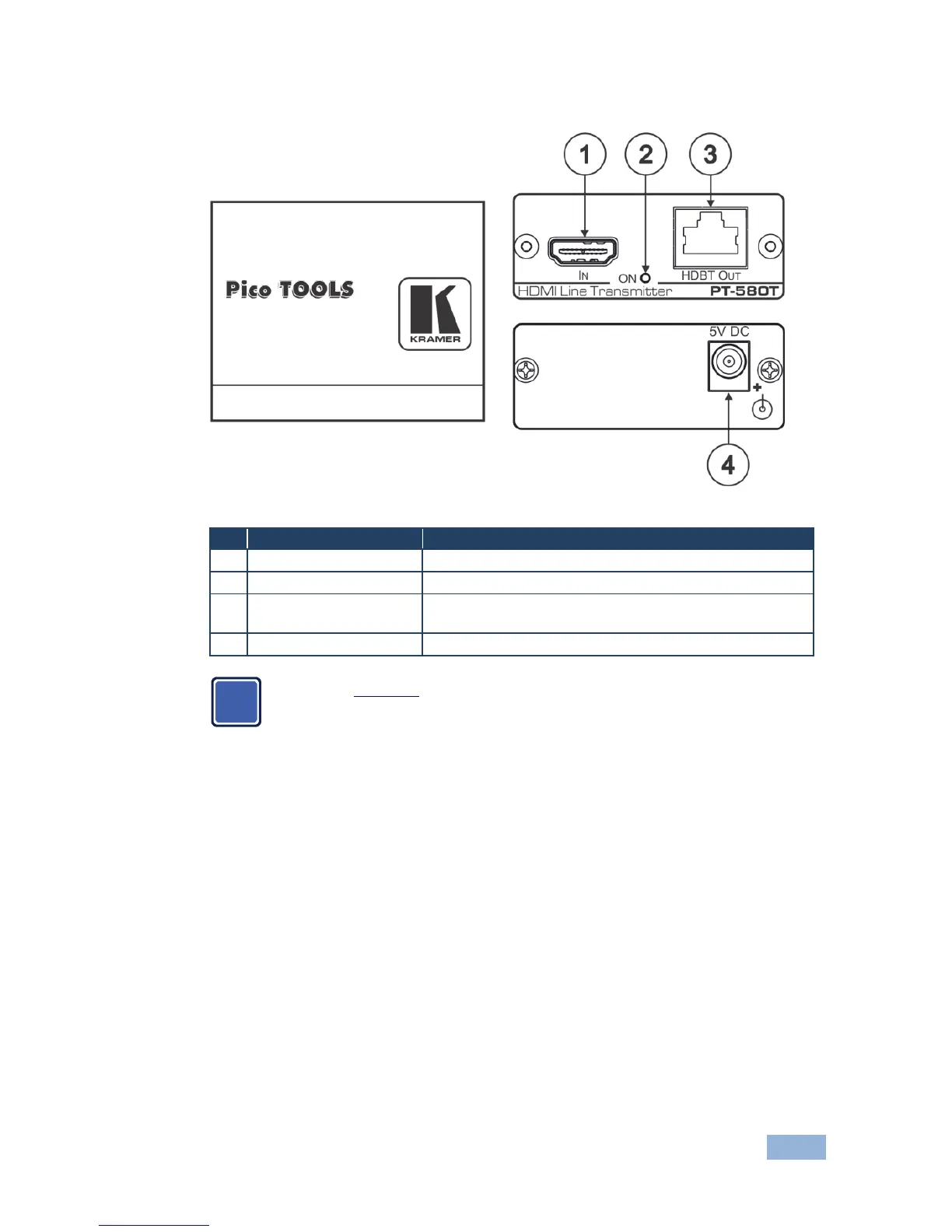

Figure 3: PT-580T HDMI Line Transmitter
#
Feature
Function
1
IN HDMI Connector
Connects to the HDMI source
2
ON LED
Lights when receiving power
3
HDBT OUT RJ-45
Connector
Connects to the HDBT IN RJ-45 connector on the TP-580R
4
5V DC
+5V DC connector for powering the unit
Note that Section 5 shows how to connect the PT-580T.
