4.1 Controlling the A/V Equipment via an IR Transmitter
Since the IR signal on the TP-580T/TP-580R transmitter/receiver pair is
bidirectional, you can use a remote control transmitter (that is used for controlling
a peripheral device, for example, a DVD player) to send commands (to the A/V
equipment) from either end of the transmitter /receiver system. To do so, you have
to use the Kramer external IR sensor on one end (P/N: 95-0104050) and the
Kramer IR emitter cable on the other end (P/N: C-A35/IRE-10)
Two IR Emitter Extension Cables are also available: a 15 meter cable and a 20 meter cable.
The example in Figure 5 illustrates how to control the DVD player that is connected
to TP-580T using a remote control, via the TP-580R. In this example, the External
IR Sensor is connected to the IR connector of the TP-580R and an IR Emitter is
connected between the TP-580T and the DVD player. The DVD remote control
sends a command while pointing towards the External IR Sensor. The IR signal
passes through the TP cable and the IR Emitter to the DVD player, which
responds to the command sent.

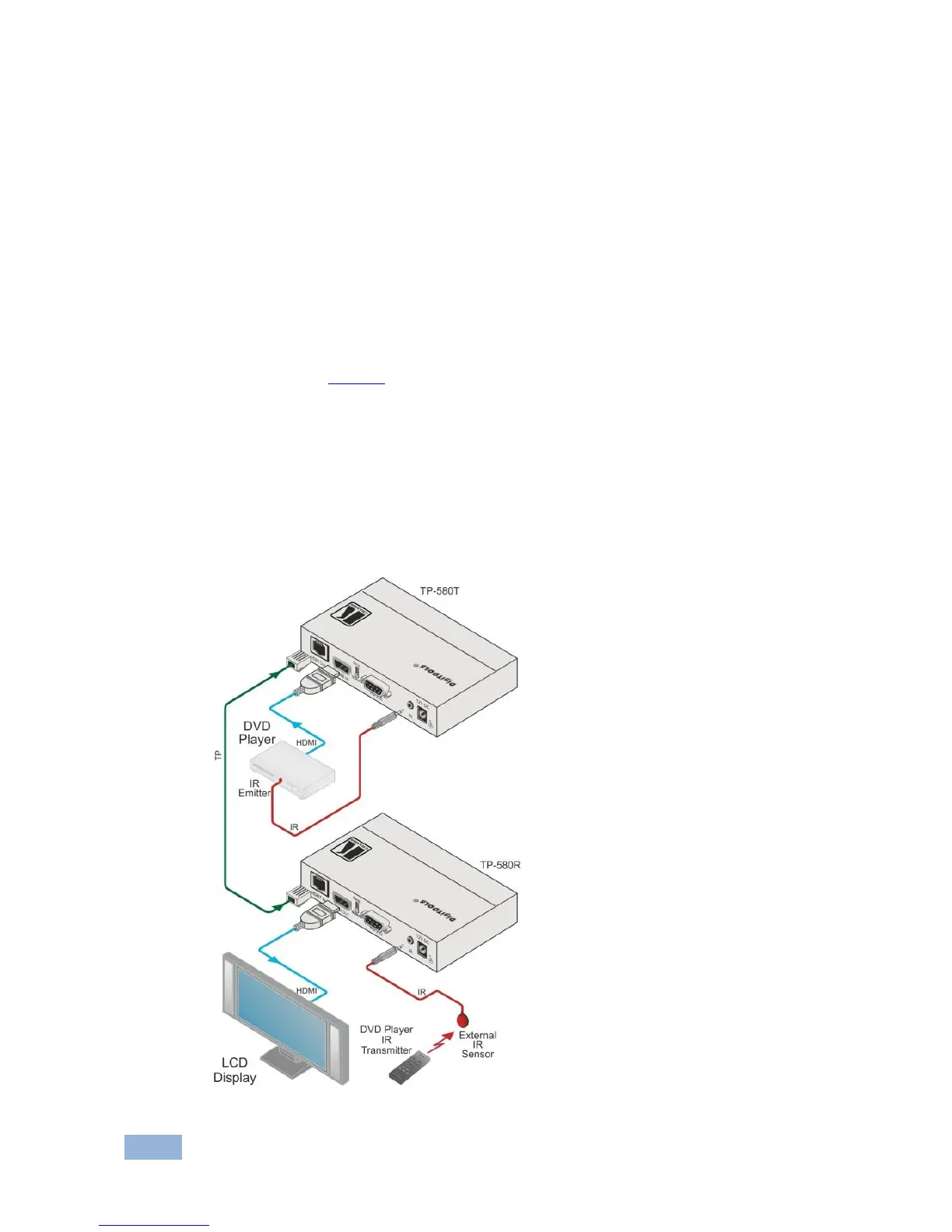

Figure 5: Controlling a DVD Player via the TP-580R
