The example in Figure 6 illustrates how to control the LCD display that is
connected to TP-580R using a remote control, via theTP-580T. In this example,
the External IR Sensor is connected to the IR connector of the TP-580T and an IR
Emitter is connected between the TP-580R and the LCD display. The LCD display
remote control sends a command while pointing towards the External IR Sensor.
The IR signal passes through the TP cable and the IR Emitter to the LCD display,
which responds to the command sent.

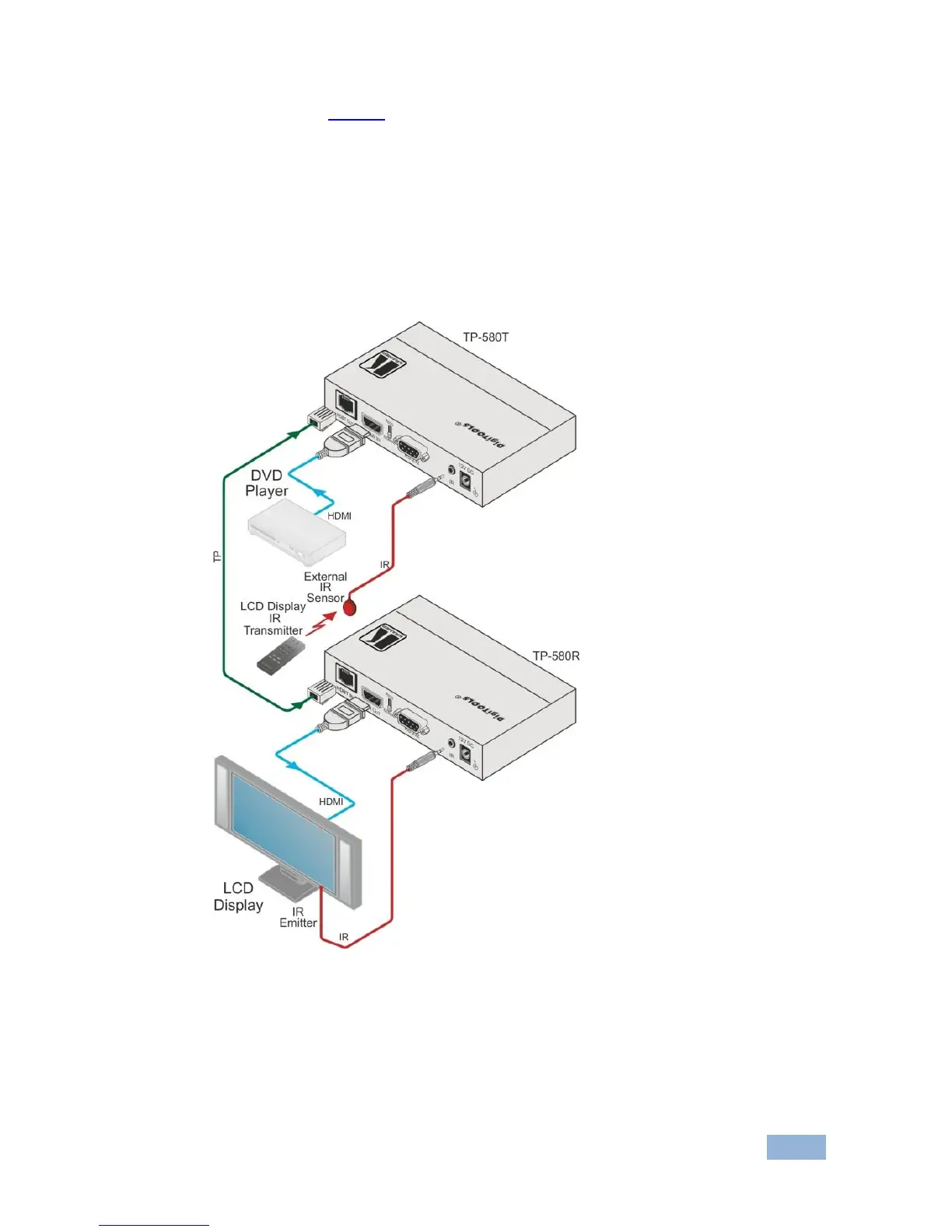

Figure 6: Controlling an LCD Display via the TP-580T
