Connecting the SL-10 Master Room Controller
8

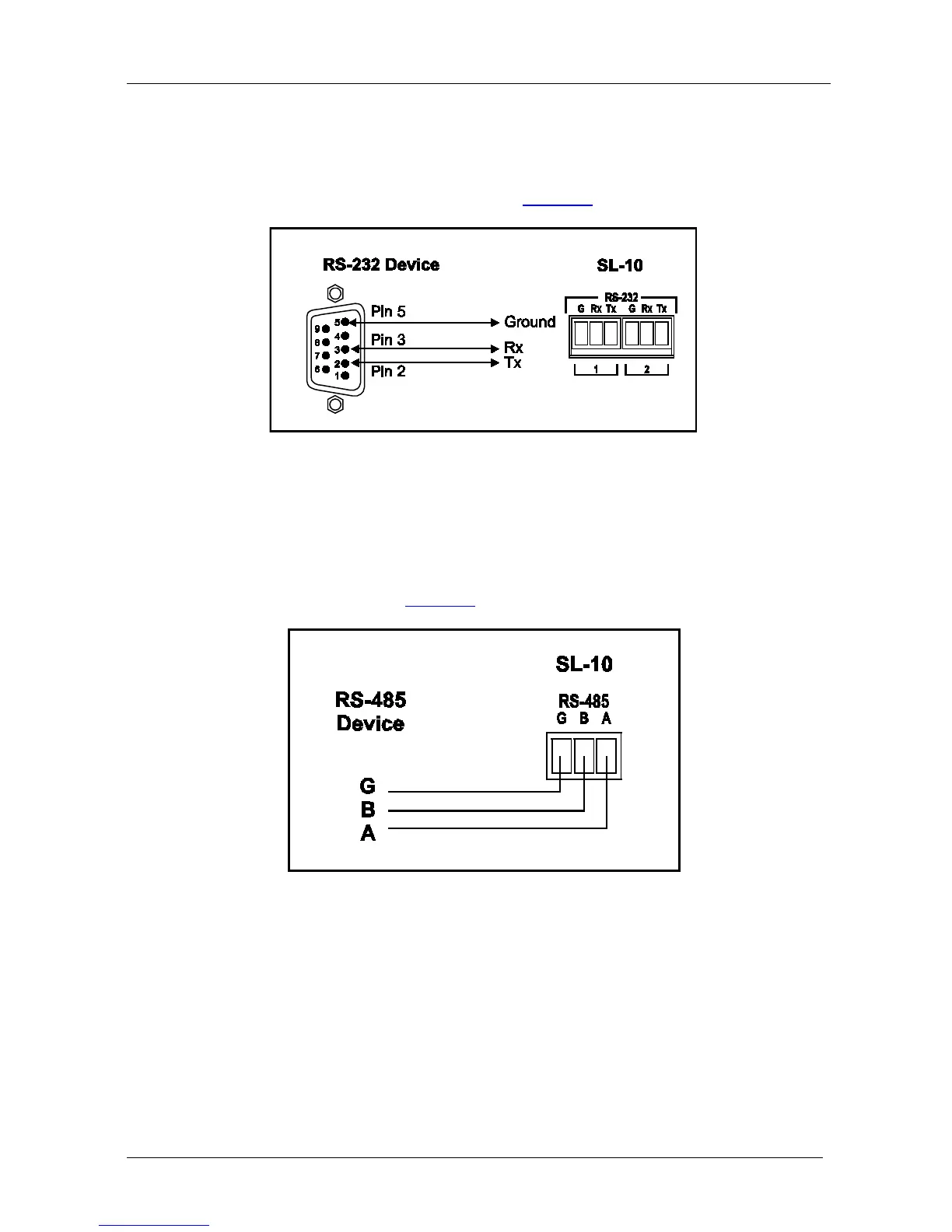

5.2 Connecting the RS-232 Interface
To connect an AV device to the SL-10 using the RS-232 port, connect the
RS-232 9-pin D-sub port on your device to the RS-232 terminal block on
the rear panel of the SL-10 as shown in
Figure 3:
Figure 3: RS-232 Connection
5.3 Connecting the RS-485 Interface
To connect an AV device to the SL-10 using the RS-485 port, connect the
RS-485 port on your device to the RS-485 terminal block on the rear panel
of the SL-10 as shown in
Figure 4:
Figure 4: RS-485 Connection
