Connecting the SL-10 Master Room Controller
9
9
5.4 Connecting the Ethernet Port
The Ethernet connection of the SL-10 allows you to perform all control
functions of the SL-10 over the Internet using a PC running the Kramer
Site-CTRL control program.
To connect the SL-10 to a network:
1. Connect the Ethernet port of the SL-10 to the Ethernet port on a
network hub or network router, via a straight cable with RJ-45
connectors.
2. At the other end, connect the Internet to a PC running Site-CTRL.
After connecting the Ethernet port, you have to install and configure it. For
detailed instructions on how to install and configure your Ethernet port, see
the K-Config Guide
1
5.5 Connecting the K-NET Port
.
The K-NET port is wired as shown in
Figure 5.

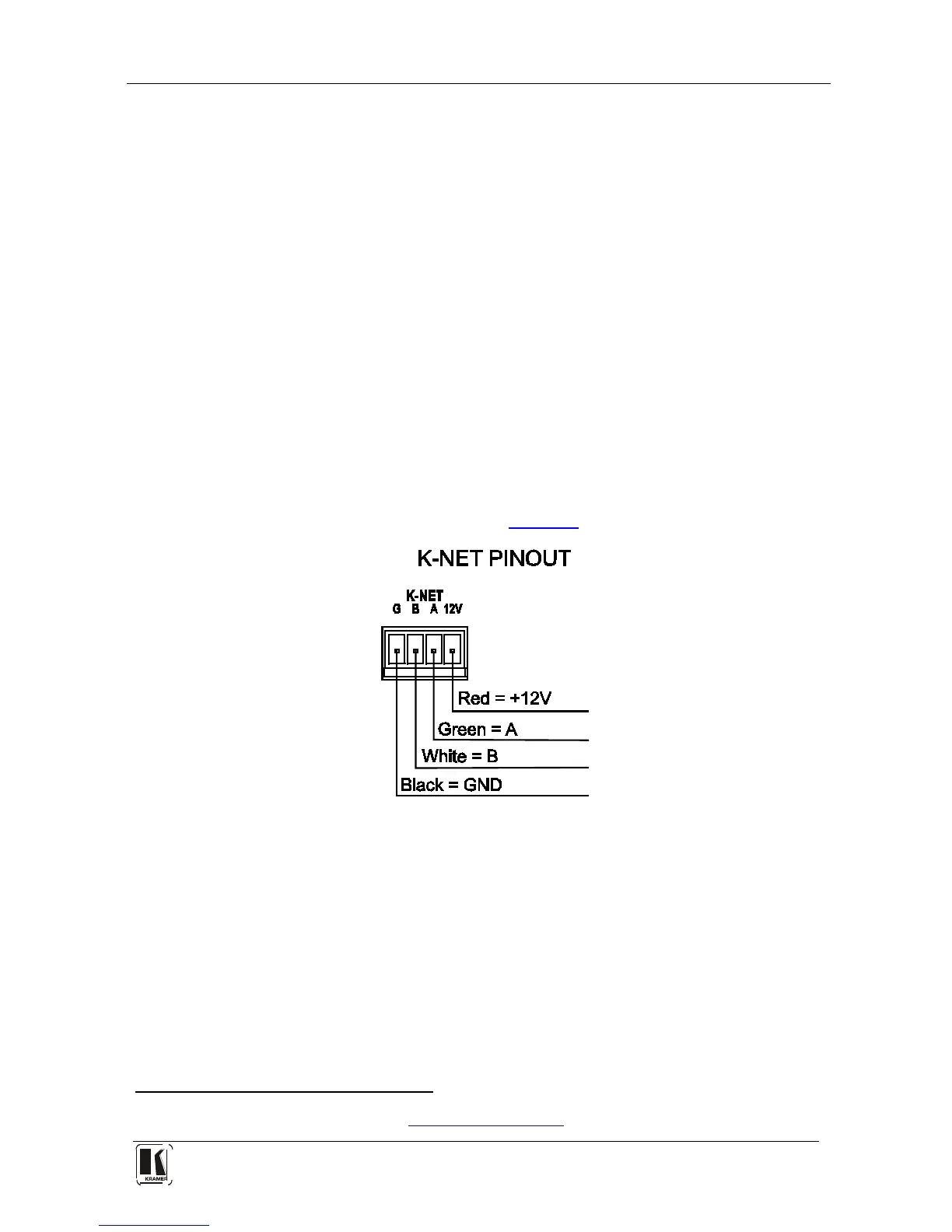

Figure 5: K-NET PINOUT Connection
1 Available for download at the Kramer Web site: www.kramerelectronics.com
