Kramer VM-3AN - 6 Technical Specifications; Table 4: VM-3 AN Audio Distributor Technical Specifications

11
VM-SAN VM-SSN VM-SVN
INPUT: 1 balanced audio stereo 1YC on a 4-pin 1 composite video on a
on 5-pin terminal blocks connector BNC connector
OUTPUTS: 3 balanced audio stereo 3 YC on 4-pin 3 composite video on
on 5-pin terminal blocks connectors BNC connectors
MAX. OUTPUT LEVEL: Audio: 18.5Vpp R+I-, 2Vpp, Y 1.8Vpp
L+I- outputs
BANDWIDTH (-3dB): >100 kHz 135MHz 430MHz
DIFF GAIN:
-
0.03% 0.12%
DIFF PHASE:
-
0.03Deg 0.03Deg
K-FACTOR:
-
<0.05% <0.05%
SIN RATIO:
90dB @1kHz 78dB @5MHz
74.3dB
CONTROL: Output level control: Y-Ievel: -1.6 to +6.3dB; Level: -1.6 to +6dB;
-77 to +6dB, R+I-, L+I- C-Ievel: -0.4 to +7.6dB Equalization: 0 to +6dB
channels
COUPLING:
-
AC AC
AUDIO THO + NOISE: 0.008%
- -
AUDIO 2d HARMONIC: 0.001%
- -
POWER SOURCE: 12V DC, 89mA 12V DC, 29mA 12V DC, 27mA
DIMENSIONS: 11.7cm x scrn x3.2cm (4.6" x 2.4" X 1.3")W, 0, H
WEIGHT: 0.28 kg (0.62 Ibs.) approx.
ACCESSORIES: Power supply
OPTIONS: Rack adapter
6 Technical Specifications

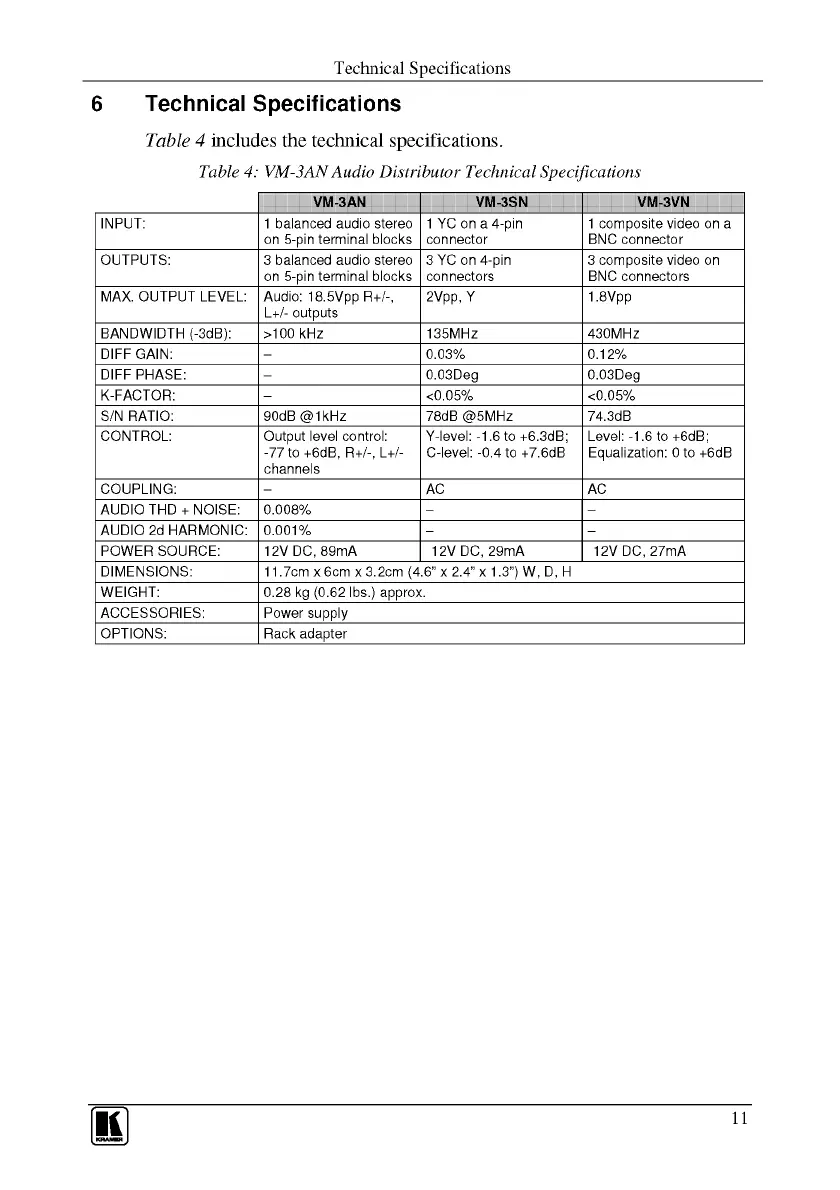

Table 4 includes the technical specifications.
Table 4: VM-3ANAudio Distributor Technical Specifications
Technical Specifications
