WP-580T/WP-580R - Defining the WP-580T HDMI Line Transmitter
7
7

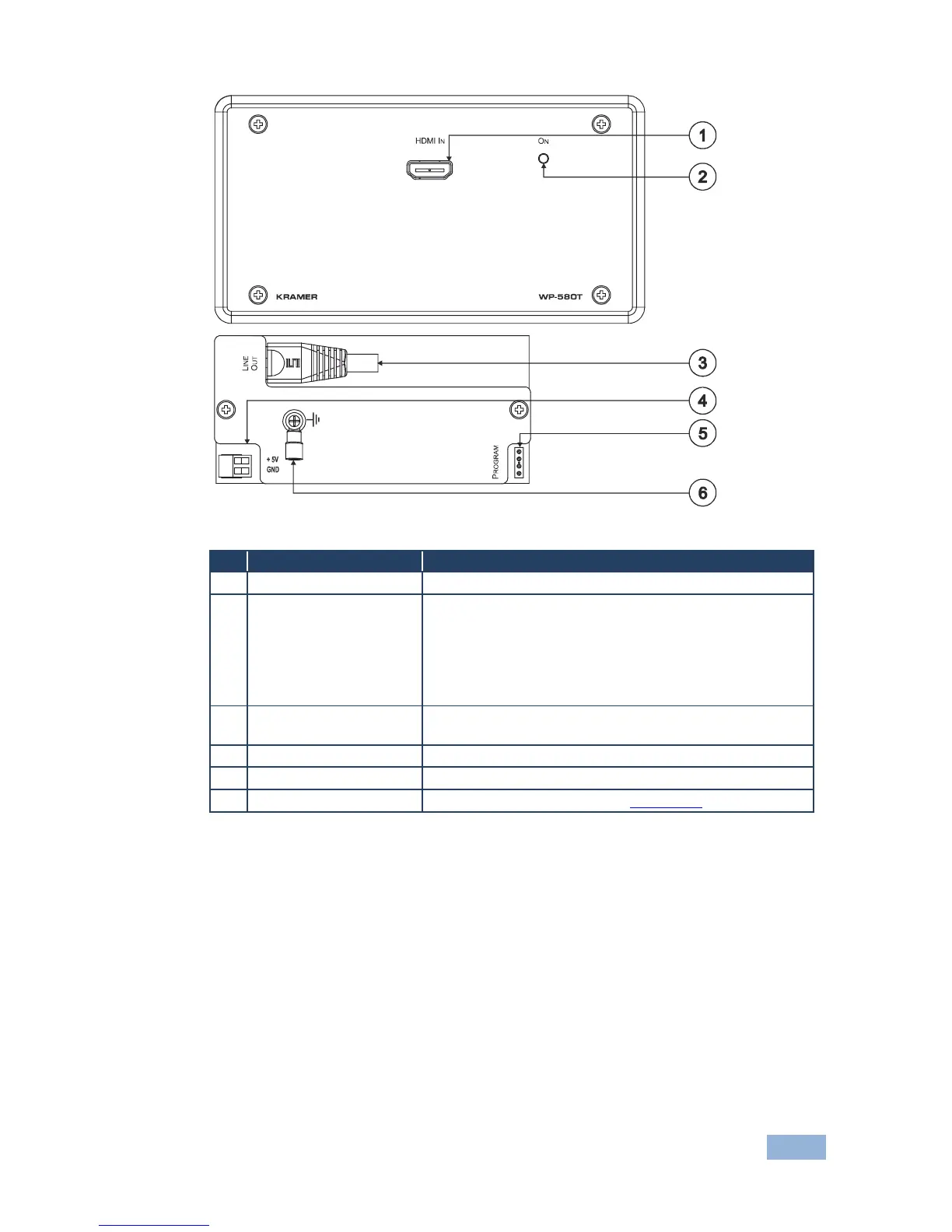

Figure 2: WP-580T HDMI Line Transmitter for Europe (80mm/86mm)
#
Feature
Function
1
HDMI IN Connector
Connects to the HDMI source
2
ON LED
Lights red when only the power is connected; orange
when the power and the input only are connected; and
green when the power and both the input and output are
connected
Note, if no input is connected the device invokes the
power save mode automatically turning off the power
3
HDBT OUT/LINE OUT
RJ-45 Connector
Connects to the HDBT IN/LINE IN RJ-45 connector on
the WP-580R
4
5V DC
+5V DC connector for powering the unit
5
PROG 4-pin Connector
For internal use
6
Grounding Screw
Connect to grounding wire, see Section 6.2
