WP-580T/WP-580R - Connecting the WP-580T Transmitter to the WP-580R Receiver
6.1 Wiring the TP LINE IN / LINE OUT RJ-45 Connectors
This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45
connectors.
EIA /TIA 568B

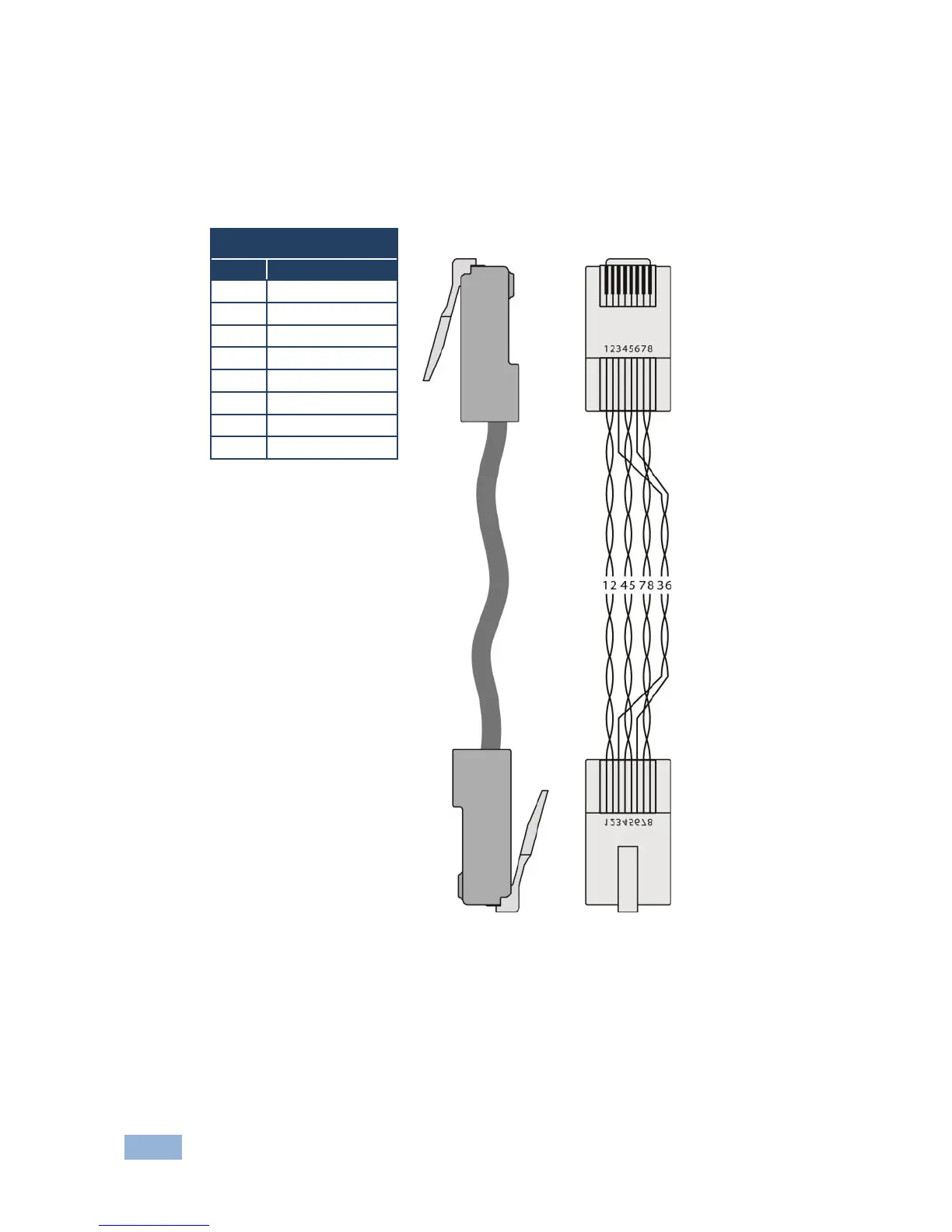

Figure 6: TP PINOUT
PIN
Wire Color
1
Orange / White
2
Orange
3
Green / White
4
Blue
5
Blue / White
6
Green
7
Brown / White
8
Brown
