4.4 Name plate
P/N: 291349XX
Calio 25-60
1~230 V - 50/60 Hz
0,15 - 0,60 A
Class F IPX4D
EEI ≤ 0,20
1
2
3
4
5
PN 6/10/16
Made in Turkey | KSB SE & Co. KGaA
Johann-Klein-Str. 9 67227 Frankenthal (Germany)
6
TF 110
3,5 - 75 W
7
8
9
10
11
S/N: 291349XX-A201920-XXXX1
12

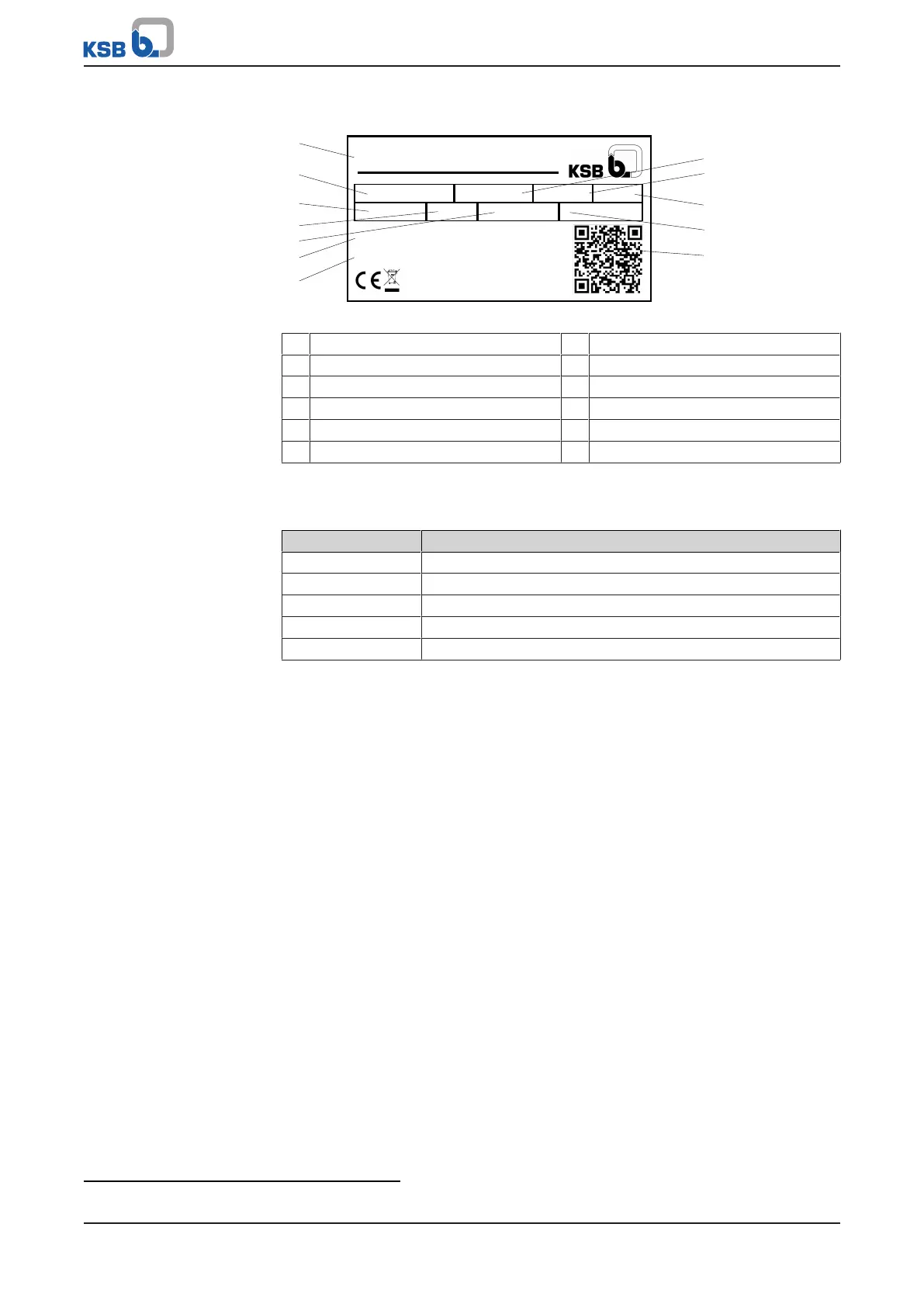

Fig.4: Name plate (example)
1 Type series, size 7 Current input
2 Mains voltage, frequency 8 Pressure class
3 Thermal class 9 Temperature class
4 Enclosure 10 Energy efficiency index EEI
5 Material number 11 Input power
6 Production number 12 QR code
Key to the production
number
Example: 291349XX-A201920-XXXX1
Table6: Key to the production number
Code Description
291349XX Material number
A Version of EU Declaration of Conformity
2019 Year of production
20 Week of production
XXXX1 Consecutive number
4.5 Design details
Design
▪ Maintenance-free high-efficiency wet rotor pump (glandless)
Drive
▪ High-efficiency permanent magnet synchronous motor, brushless, self-cooling,
with continuously variable differential pressure control
▪ Integrated motor protection
▪ 1~230VAC +/- 10%
▪ Frequency 50Hz/60Hz
▪ Enclosure IPX4D
▪ Thermal class F
▪ Temperature class TF110
▪ Energy efficiency index EEI ≤0.20
2)
▪ Interference emissions EN61000-6-3
▪ Interference immunity EN61000-6-1
Bearings
▪ Product-lubricated special plain bearing
Connections
▪ Screw-ended or flanged
2) Calio 40-90: EEI = 0.22 and Calio 50-90: EEI = 0.21
