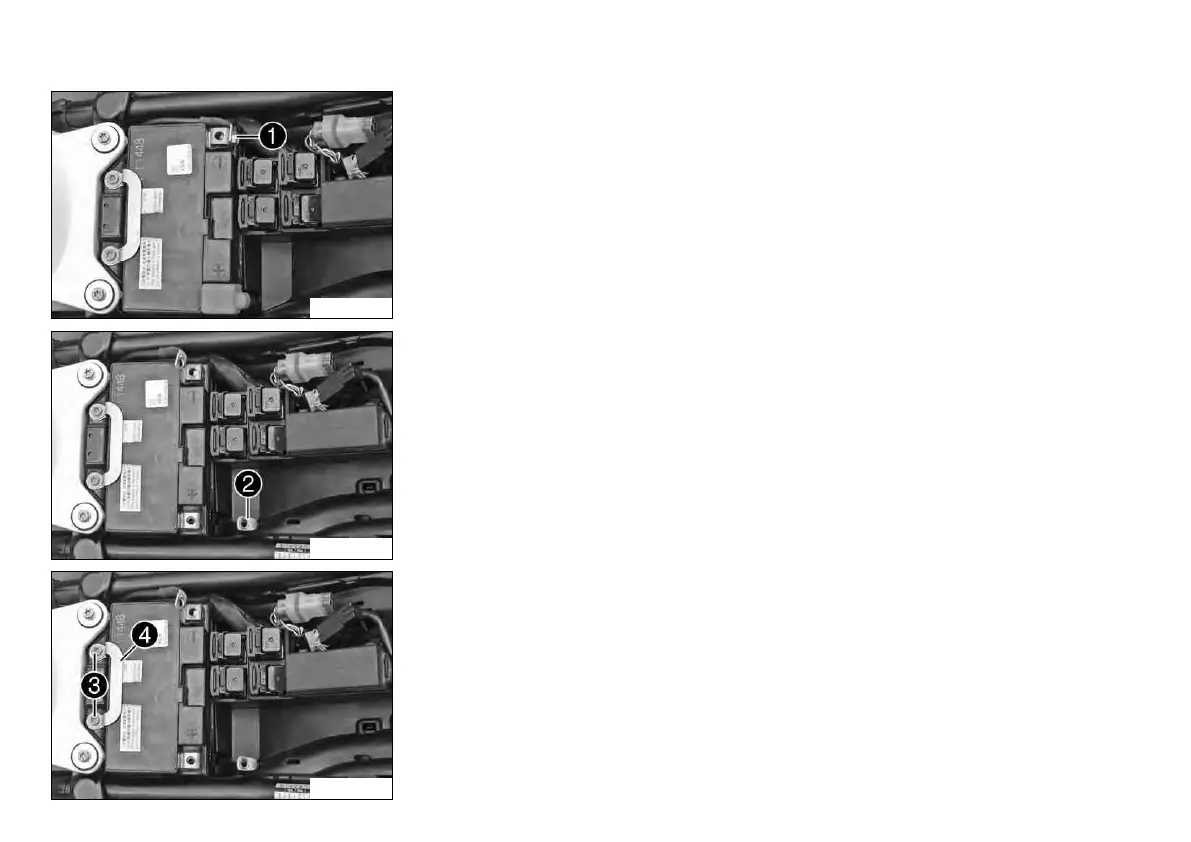

14 ELECTRICAL SYSTEM 201

B01328-10

Main work

–

Disconnect negative (minus) cable

of the battery.

B01329-10

– Remove the cover of the positive terminal.

–

Disconnect the positive (plus) cable

of the battery.

B01329-11

–

Remove screws

–

Removing the securing bracket

– Pull the battery up and out of the battery rack.
