KTM 125 DUKE 2021 User Manual

12 SERVICE WORK ON THE CHASSIS
120

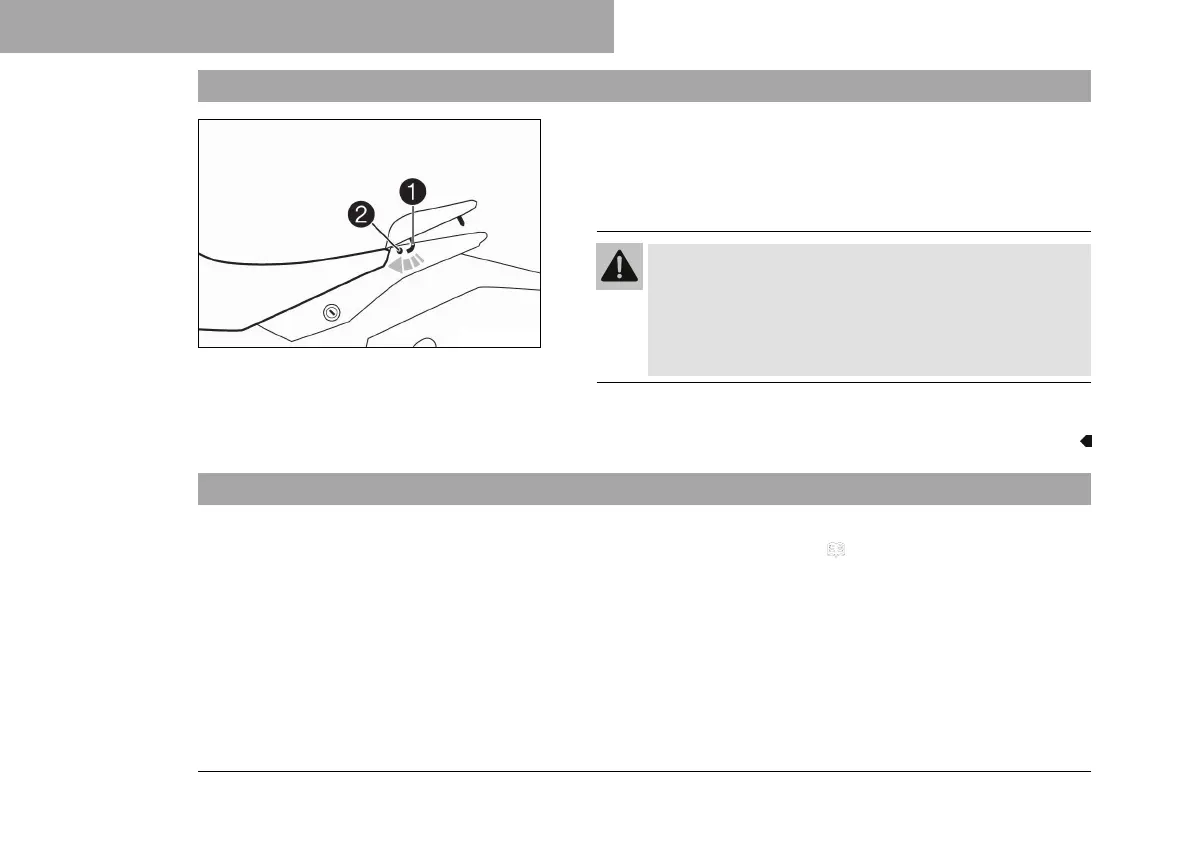

12.7 Mounting the passenger seat
H01992-01
–
Attach hooks
1
on the passenger seat to seat mounting
2
on the subframe, and lower it at the rear while pushing for-
ward.
– Press the passenger seat downward until it clicks into place.
Warning
Danger of accidents The seat can come loose from the
anchoring if it is not mounted correctly.
– After assembly, check whether the seat is correctly
locked and cannot be pulled up.
– Finally, check that the passenger seat is correctly mounted.
12.8 Removing the front rider's seat
Preparatory work
– Remove the passenger seat. ( p. 119)

KTM 125 DUKE 2021 Specifications

General

Displacement	124.7 cc
Bore x Stroke	58 mm x 47.2 mm
Compression Ratio	12.5:1
Transmission	6-speed
Rear Suspension	WP APEX Monoshock
Front Brake	Four-piston radial fixed caliper, brake disc
Rear Brake	Single-piston floating caliper, brake disc
Front Tire	110/70 R17
Rear Tire	150/60 R17
Seat Height	830 mm
Dry Weight	139 kg
Frame	Steel Trellis Frame, Powder Coated
Ground Clearance	175 mm
Engine Type	Single Cylinder, 4-Stroke, Liquid Cooled
Torque	12 Nm
Fuel System	Electronic Fuel Injection
Front Suspension	WP APEX 43
Fuel Tank Capacity	13.4 liters
Wheelbase	1, 357 mm
