KTM 125 DUKE 2021 User Manual

CONTROLS 6
37

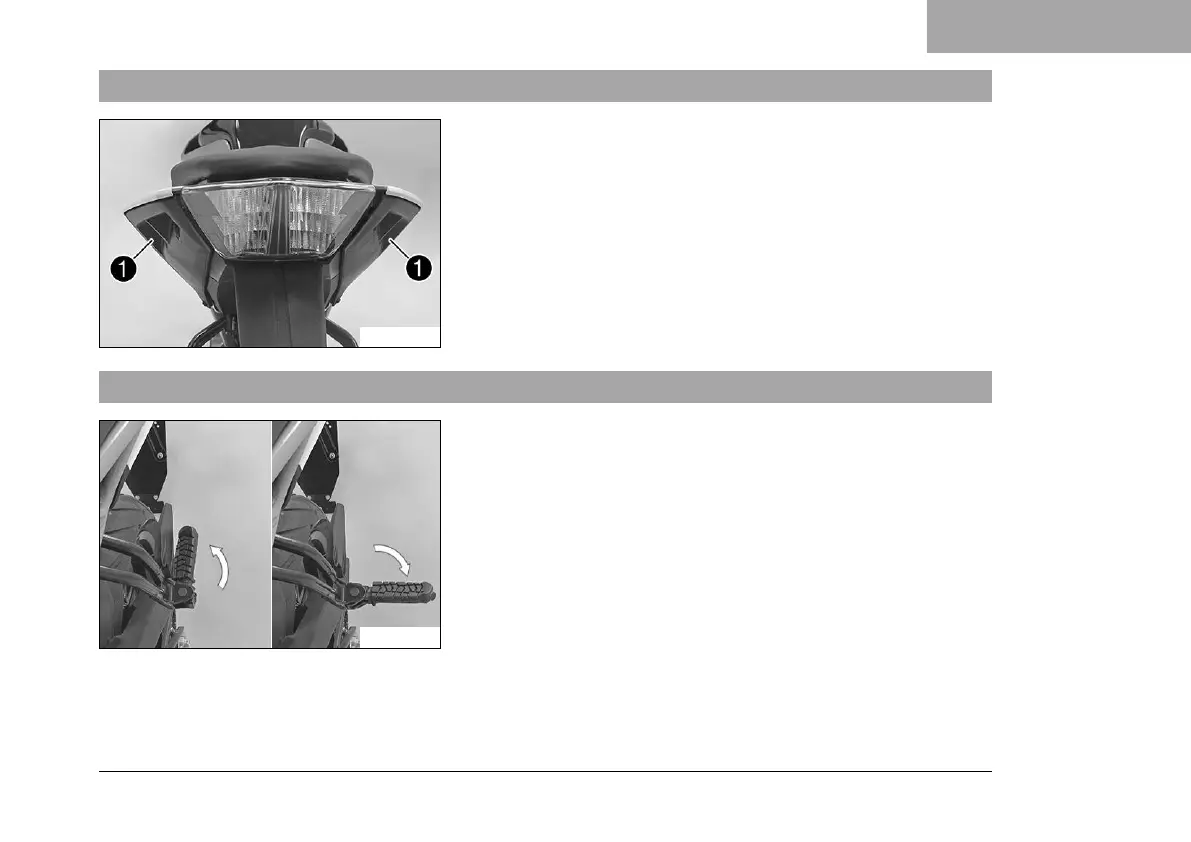

6.13 Grab handles
F00741-10
The grab handles
1
are used for moving the motorcycle around.
If you carry a passenger, the passenger can hold onto the grab
handles during the trip.
6.14 Passenger foot pegs
F00731-10
The passenger foot pegs can be folded up and down.
Possible states
• Passenger foot pegs folded up – For operation without a pas-
senger.
• Passenger foot pegs folded down – For operation with a pas-
senger.

KTM 125 DUKE 2021 Specifications

General

Displacement	124.7 cc
Bore x Stroke	58 mm x 47.2 mm
Compression Ratio	12.5:1
Transmission	6-speed
Rear Suspension	WP APEX Monoshock
Front Brake	Four-piston radial fixed caliper, brake disc
Rear Brake	Single-piston floating caliper, brake disc
Front Tire	110/70 R17
Rear Tire	150/60 R17
Seat Height	830 mm
Dry Weight	139 kg
Frame	Steel Trellis Frame, Powder Coated
Ground Clearance	175 mm
Engine Type	Single Cylinder, 4-Stroke, Liquid Cooled
Torque	12 Nm
Fuel System	Electronic Fuel Injection
Front Suspension	WP APEX 43
Fuel Tank Capacity	13.4 liters
Wheelbase	1, 357 mm
