KTM 125 EXC User Manual

12 SERVICE WORK ON THE CHASSIS 55

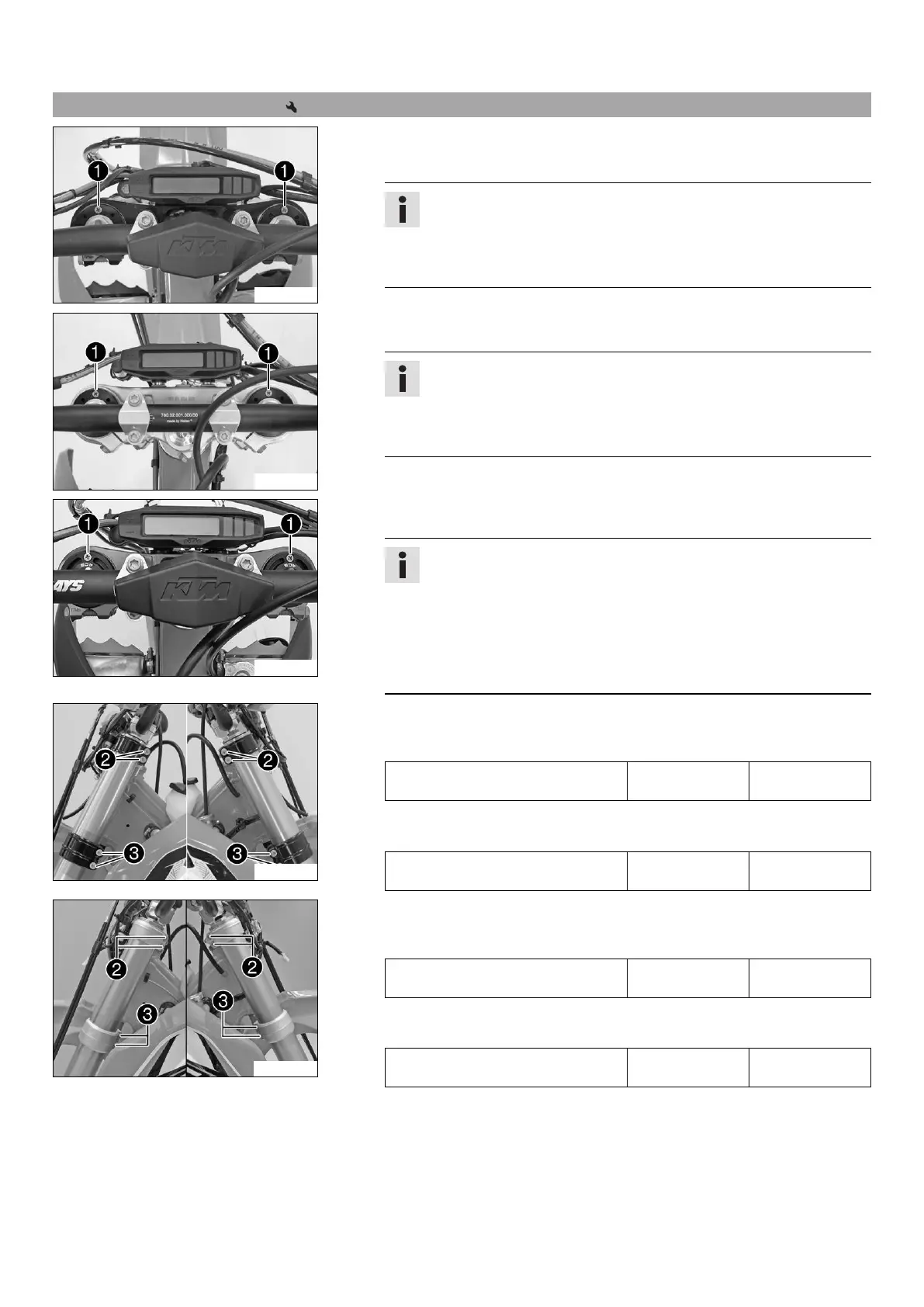

12.8 Installing the fork legs
102263-10
Main work
(EXC EU/AU)
– Position the fork legs.
Info
Grooves are milled into the side of the upper end of the fork legs. The
second milled groove (from the top) must be flush with the top edge of
the upper triple clamp.
Position bleeder screws

toward the front.
102268-10
(200 XC‑W US, 250 XC‑W US, 300 EXC BR, 300 XC‑W US)
– Position the fork legs.
Info
Grooves are milled into the side of the upper end of the fork legs. The
second milled groove (from the top) must be flush with the top edge of
the upper triple clamp.
Position bleeder screws

toward the front.
602754-10
(Six Days)
– Position the fork legs.
Info
The rebound damping is located in the right fork leg REB (red adjusting
screw). The compression damping is located in the left fork leg COMP
(white adjusting screw).
Grooves are milled into the side of the upper end of the fork legs. The
second milled groove (from the top) must be flush with the top edge of
the upper triple clamp.
Position bleeder screws

toward the front.
102262-11
(EXC EU/AU)
–
Tighten screws

.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
–
Tighten screws

.
Guideline
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)
B02146-11
(200 XC‑W US, 250 XC‑W US, 300 EXC BR, 300 XC‑W US)
–
Tighten screws

.
Guideline
Screw, top triple clamp M8 20 Nm
(14.8 lbf ft)
–
Tighten screws

.
Guideline
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)

KTM 125 EXC Specifications

General

Displacement	124.8 cc
Bore x Stroke	54 mm x 54.5 mm
Starter	Kickstarter
Transmission	6-speed
Rear Suspension	WP Xplor PDS shock absorber
Ground Clearance	370 mm
Seat Height	960 mm
Fuel System	Carburetor
Cooling	Liquid cooled
Engine Type	Single cylinder, 2-stroke
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake
Frame	Central double-cradle type in chrome molybdenum steel
