KTM 125 SX 2004 User Manual

ENGLISH
11

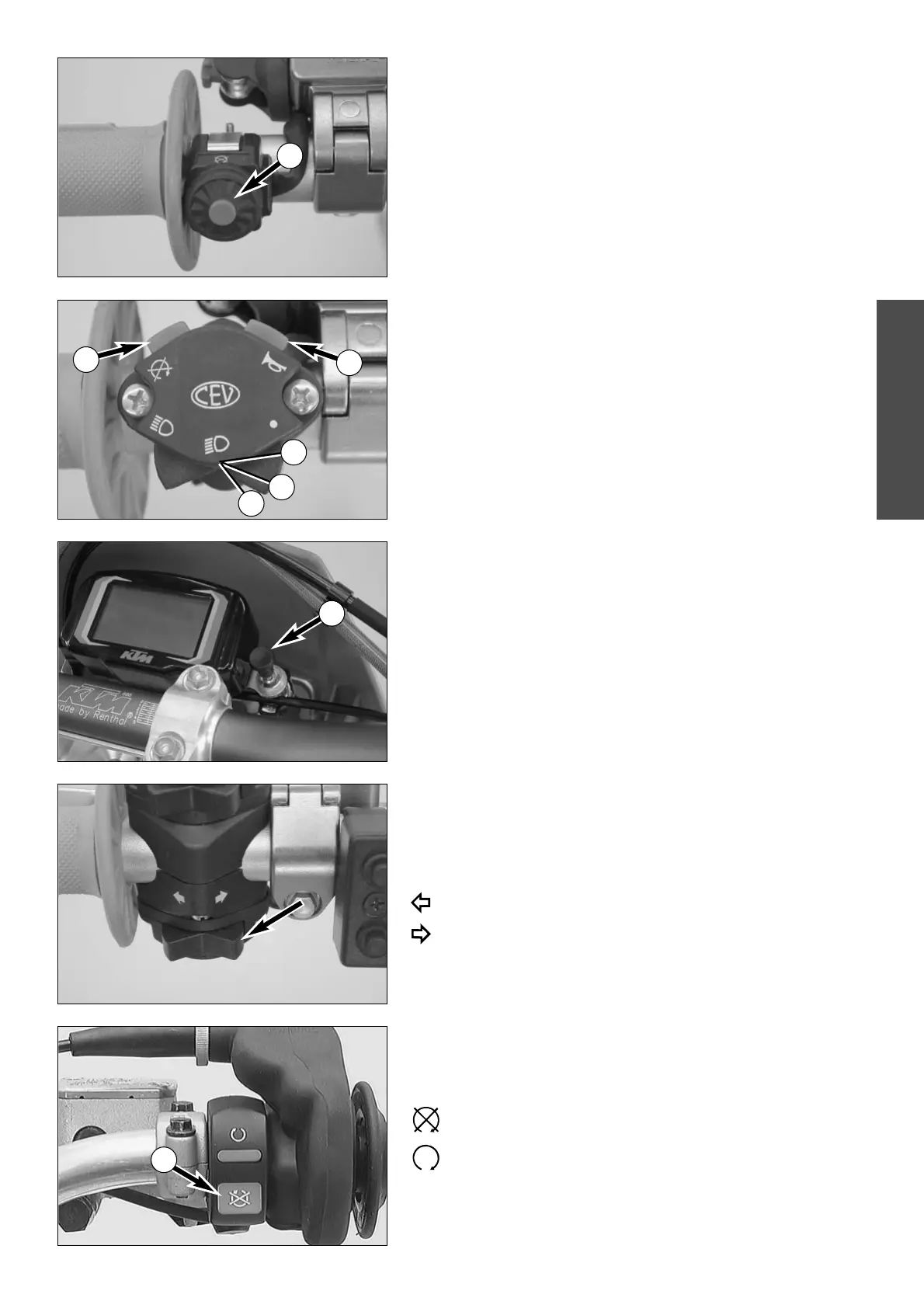

Short circuit button (SX)
The short circuit button 1 turns off the engine. When pressing this button,
the ignition circuit is short-circuited.
Combination switch (EXC)
The light switch has 2, respectively 3 switch positions.
A = Light off (this function is not available in all models)
B = Low beam on
C = High beam on
You may use button
2 to actuate the horn.
The red short circuit button
3 serves to switch off the engine. Leave the
switch pressed until the engine stops.
Headlamp switch (EXC USA)
In this model the headlamp is switched on with the pull switch 4.
Flasher switch
The flasher switch is a separate unit and is mounted on the left portion of
the handlebar.
The wire harness is designed in a way that whenever you want to use your
bike off-road, you can dismount the entire turn indicator system without
affecting the function of the remaining electrical system.
Flasher left
Flasher right
Emergency OFF switch (Australia)
The emergency OFF switch 5 is located next to the throttle grip. Primarily
designed as safety or emergency OFF switch, it should normally not be in its
activated state.
In this position, the ignition circuit is shorted; if the engine is running,
it will stall immediately, if it is at standstill, it will not start.
In this position, the ignition circuit is enabled; the engine should start.
A
B
C
1
3
2
4
5

KTM 125 SX 2004 Specifications

General

Engine Type	Single-cylinder, 2-stroke
Displacement	124.8 cc
Cooling System	Liquid-cooled
Starter	Kickstarter
Transmission	6-speed
Front Suspension	WP USD 48 mm
Rear Suspension	WP PDS shock absorber
Front Brake	Single 260 mm disc
Rear Brake	Single 220 mm disc
Front Tire	80/100-21
Rear Tire	100/90-19
Seat Height	925 mm
Ground Clearance	385 mm
Dry Weight	88 kg
Bore x Stroke	54 mm x 54.5 mm
Ignition	Kokusan digital
Wheelbase	1, 471 mm
Fuel Capacity	7.5 liters
Fuel System	Carburetor
Frame	Chromium-Molybdenum steel central-tube frame
