15 ELECTRICAL SYSTEM
108

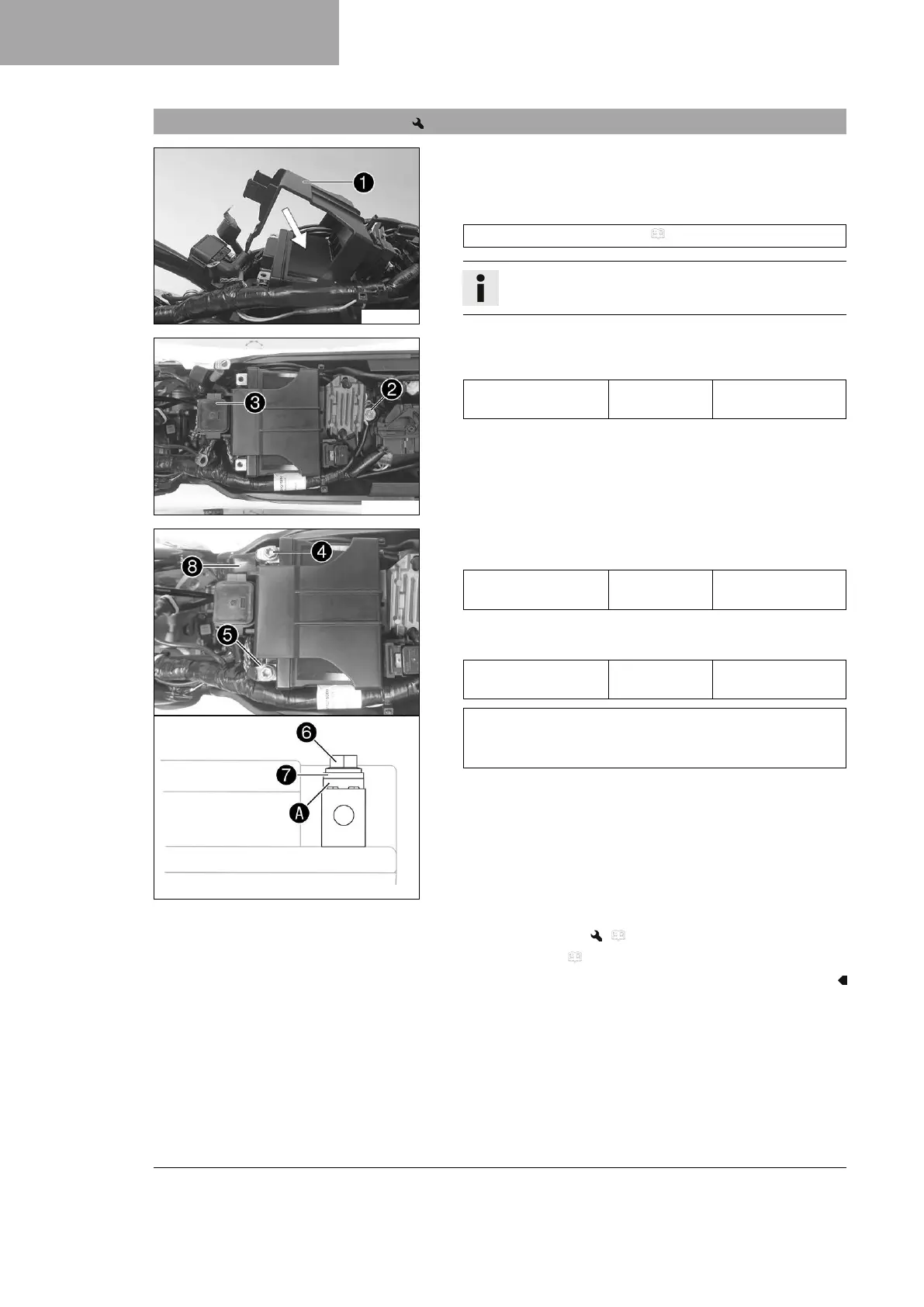

15.2 Installing the 12-V battery
W00069-11
Main work
–
Pull up battery holding bracket
1
, insert the 12-V battery
into the battery compartment with the terminals facing
upwards and secure with battery holding bracket
1
.
12-V battery (HJTZ5S-FP-C) ( p. 134)
Info
Ensure that the cable is routed correctly.
W00068-11
–
Mount and tighten screw
2
.
Guideline
Screw, battery hold-
ing bracket
M6 4.5 Nm
(3.32 lbf ft)
–
Mount starter relay
3
onto the holder and route the cable.
W00070-10
–
Connect positive cable
4
to the 12-V battery.
Guideline
Screw, battery termi-
nal
M5 2.5 Nm
(1.84 lbf ft)
–
Connect negative cable
5
to the 12 V battery.
Guideline
Screw, battery termi-
nal
M5 2.5 Nm
(1.84 lbf ft)
Contact disks
A
must be mounted under screws
6
and
cable sockets
7
with the claws toward the battery termi-
nal.
–
Slide positive terminal cover
8
over the positive terminal.
Finishing work
– Install the fuel tank. ( p. 72)
– Mount the seat. ( p. 62)
