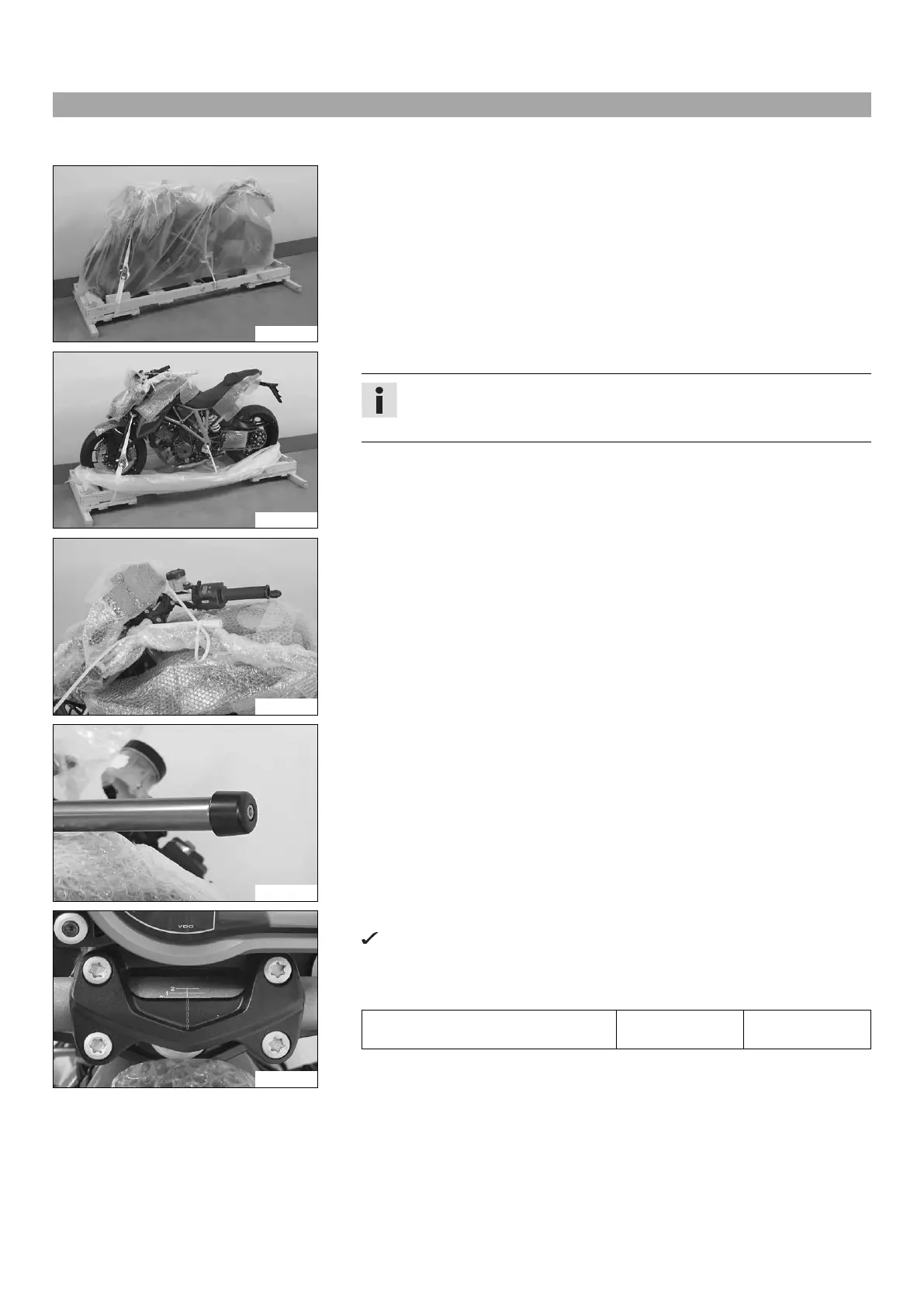

2 SETUP 3
2.1 Unpacking and setting up the vehicle
Preparatory work
– Remove the box.
L01494-01
Main work
– Remove the adhesive tape in the upper area of the motorcycle.
L01495-01
– Roll down the film at the sides.
Info
To avoid damaging the motorcycle during unpacking, leave the other films
on the vehicle until you have finished work on the vehicle.
– Remove the separate enclosure and unpack it. Check the separate enclosure for
completeness.
– Check the vehicle for transport damage.
L01496-01
– Remove the controls from the transport holder. Remove the screws of the handlebar
clamp. Take off the handlebar clamp and transport holder.
L01497-01
– Remove the right-hand handlebar weight.
– Position the controls on the right half of the handlebar but do not tighten yet.
L01499-10
– Position the handlebar.
The markings of the handlebar scale are located centrally between the handle-
bar clamp.
– Position the handlebar clamp. Mount and tighten the screws evenly.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
To Next Page
