3 WORK 7

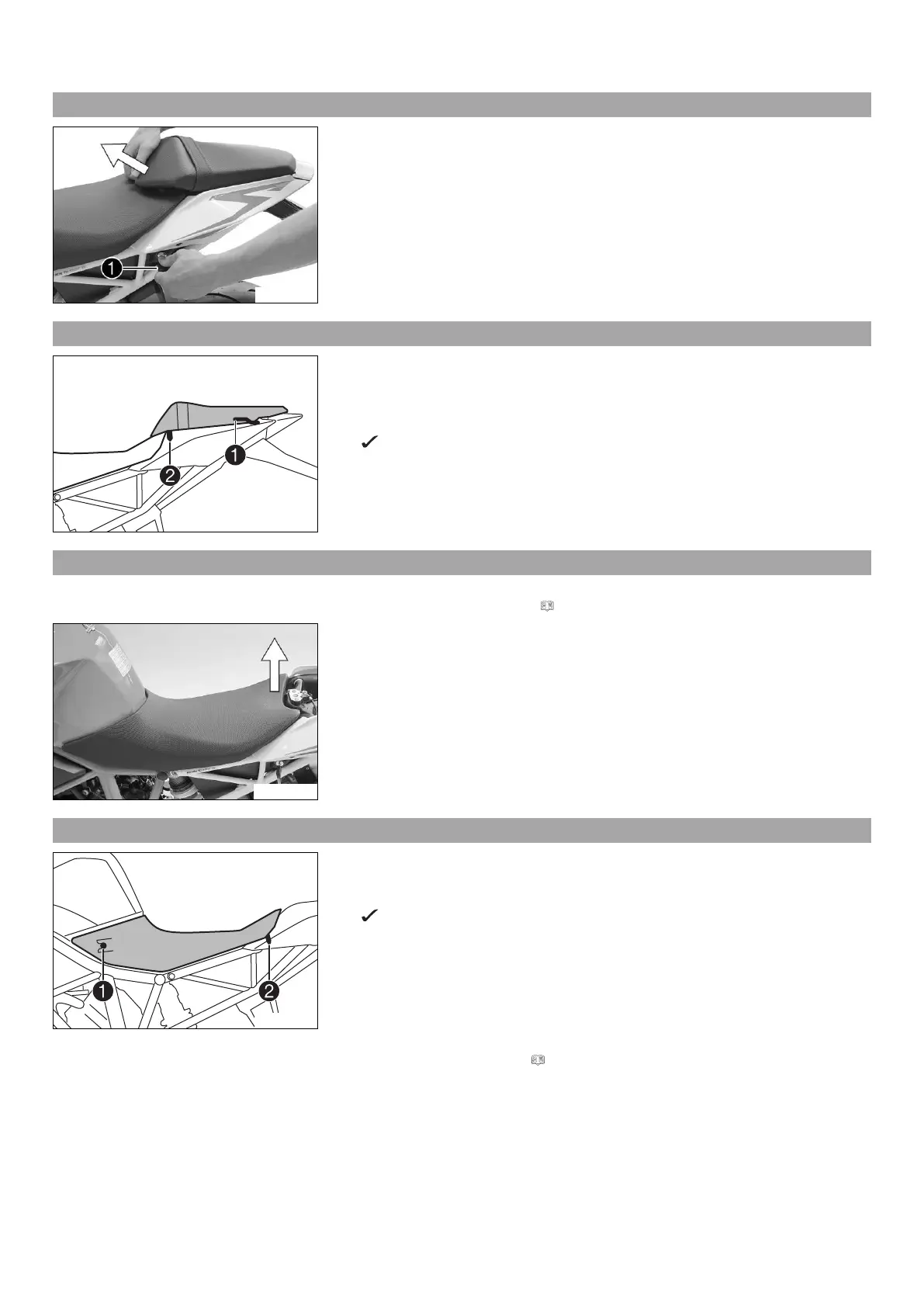

3.1 Removing the passenger seat
L01428-10
–
Insert the ignition key in seat lock
and turn it clockwise.
– Lift the passenger seat at the front and pull it out of the holder toward the front.
– Remove the passenger seat.
– Remove the ignition key.
3.2 Mounting the passenger seat
401922-10
–
Attach the recesses of the passenger seat in the guides
and lower at the front
while pushing it back.
–
Position locking pin
in the lock housing and push down the passenger seat at
the front.
The locking pin engages with an audible click.
– Check that the passenger seat is correctly mounted.
3.3 Removing the front rider's seat
Preparatory work
– Remove the passenger seat. ( p. 7)
B02310-10
Main work
– Raise the rear of the front rider's seat.
– Detach the front of the front rider's seat and remove it.
3.4 Mounting the front rider's seat
401921-10
Main work
–
Attach recesses
on the front rider's seat to the fuel tank and push the front rid-
er's seat forward while lowering it.
Catch
is located in the recess.
– Check that the front rider's seat is correctly mounted.
Finishing work
– Mount the passenger seat. ( p. 7)
