WORK 3
9

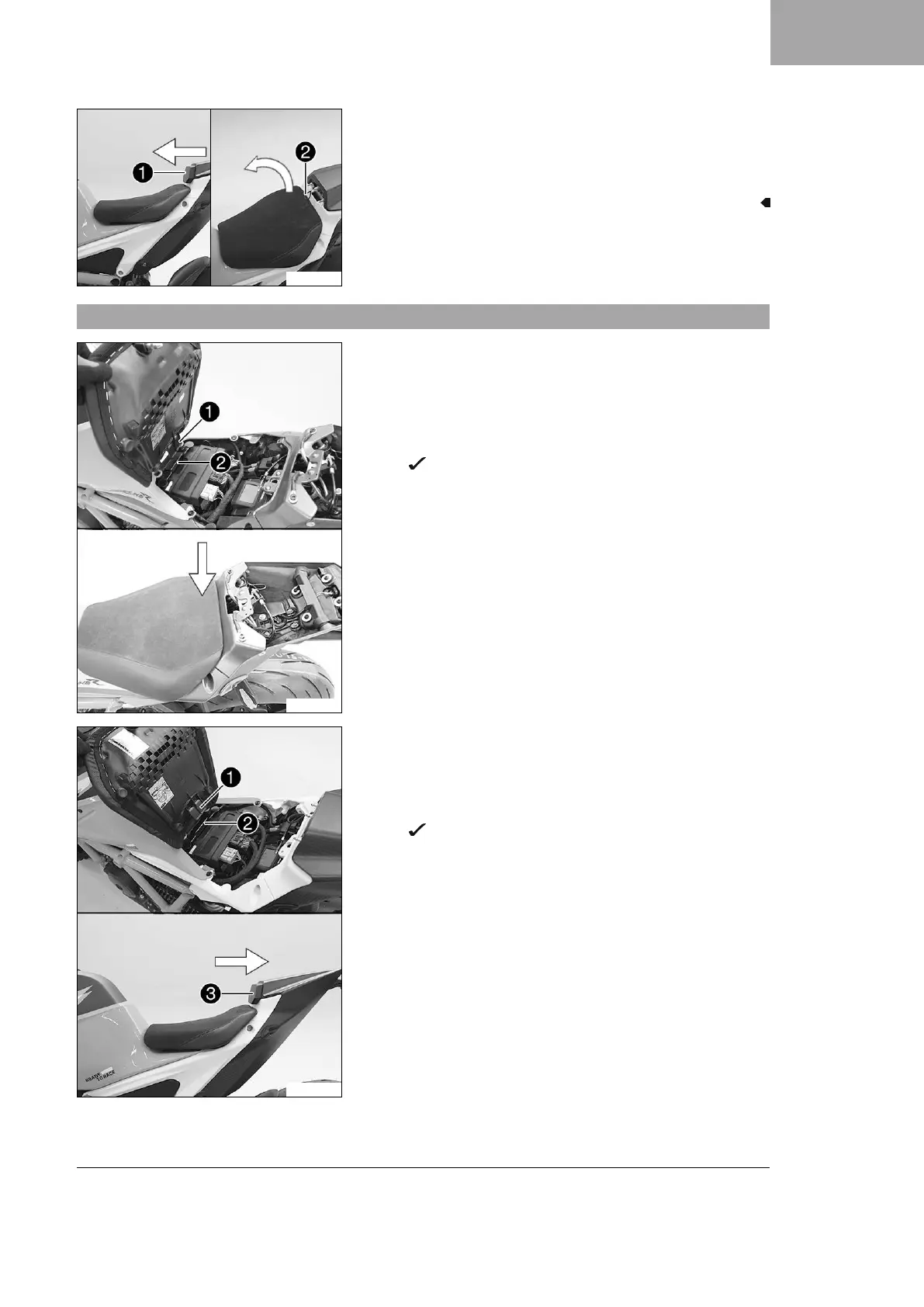

S04795-10
(SUPER DUKE RR)
–
Pull the back cushion
1
off toward the front.
–
Unlock the front rider's seat with loop
2
.
– Raise the front rider's seat at the rear and remove it.
3.4 Mounting the front rider's seat
S03914-10
Main work
(SUPER DUKE R)
–
Hook recess
1
of the front rider's seat into guide
2
,
lower it at the rear and push it forward.
– Position the locking pin in the lock housing and push down
the front rider's seat at the rear.
The locking pin engages with an audible click.
– Check that the front rider's seat is mounted correctly.
S04796-10
(SUPER DUKE RR)
–
Hook recess
1
of the front rider's seat into guide
2
,
lower it at the rear and push it forward.
– Position the locking pin in the lock housing and push down
the front rider's seat at the rear.
The locking pin engages with an audible click.
– Check that the front rider's seat is mounted correctly.
–
Position back cushion
3
and push it into holding lugs.
