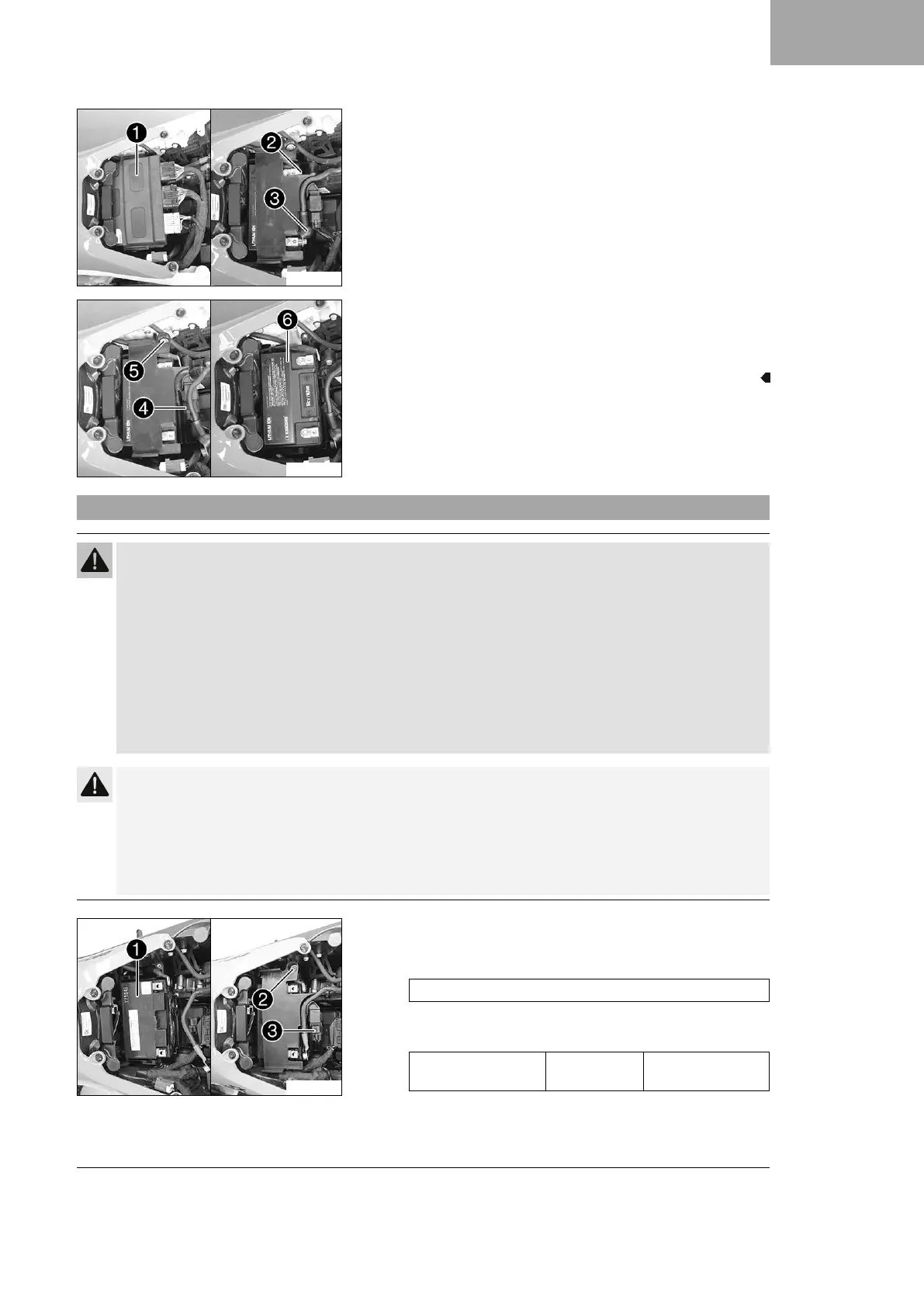

WORK 3
11
S04809-10
(SUPER DUKE RR)
–
Remove control unit
1
and hang to the side.
–
Disconnect negative cable
2
from the 12-V battery.
–
Pull back positive terminal cover
3
and disconnect the
positive cable from the 12-V battery.
S04810-10
–
Disconnect plug-in connector
4
.
–
Remove screw
5
and take off the battery cover.
–
Take the 12-V battery
6
out of the battery compartment.
3.6 Installing the 12-V battery
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
– Keep 12 V batteries out of the reach of children.
– Wear suitable protective clothing and safety glasses.
– Avoid contact with battery acid and battery gases.
– Keep sparks or open flames away from the 12 V battery.
– Only charge 12 V batteries in well-ventilated rooms.
– Rinse the affected area immediately with plenty of water in the event of contact with the skin.
– Rinse eyes with water for at least 15 minutes and consult a doctor immediately if battery acid and
battery gases get into the eyes.
Caution
Danger of accidents Electronic components and safety devices will be damaged if the 12-V battery is dis-
charged or missing.
If the 12-V battery is discharged or defective, malfunctions in the vehicle electronics can occur, espe-
cially when starting.
– Never operate the vehicle with a discharged 12-V battery or without a 12-V battery.
S03936-10
Main work
(SUPER DUKE R)
–
Insert 12-V battery
1
into the battery compartment.
12-V battery (YTZ14S)
–
Position the battery cover, mount screw
2
, and tighten.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
–
Join plug-in connector
3
.
To Next Page
