7
COMBINA
TION
INSTRUME
NT
39
7.4

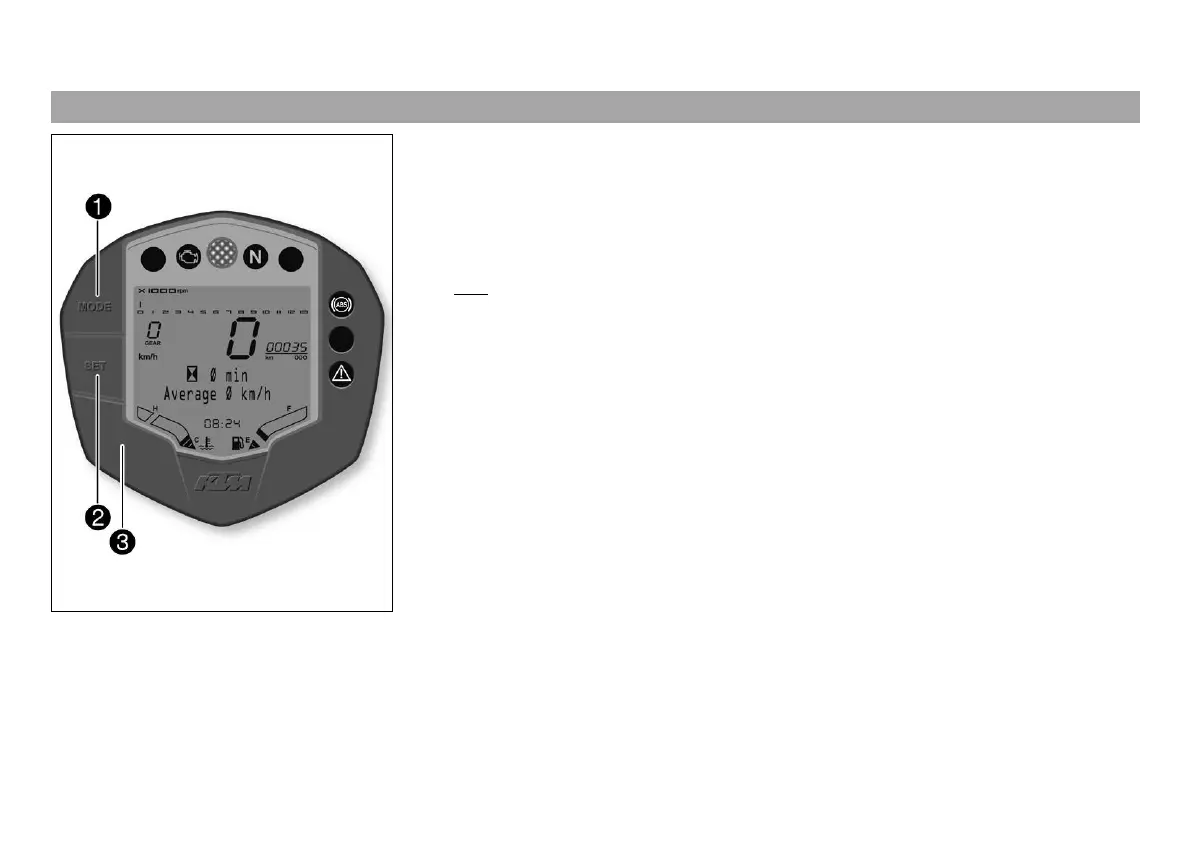

Function
buttons
401685-12
You
can
change
the
display
mode
with
the
MODE
button
.
Possible
display
modes
are
total
distance
traveled
(
TRIP
1
),
distance
1
(
ODO
)
and
distance
2
(
TRIP
2
).
Pressing
and
holding
the
SET
button
resets
the
distance
1
(
TRIP
1
)
and
distance
2
(
TRIP
2
)
functions
to
0.0
and
briefly
pressing
the
SET
button
changes
the
info
display
to
the
next
display
mode.
The
ABS
can
be
switched
off
with
the
button
.
40
42
