12 SERVICE WORK ON THE CHASSIS 82

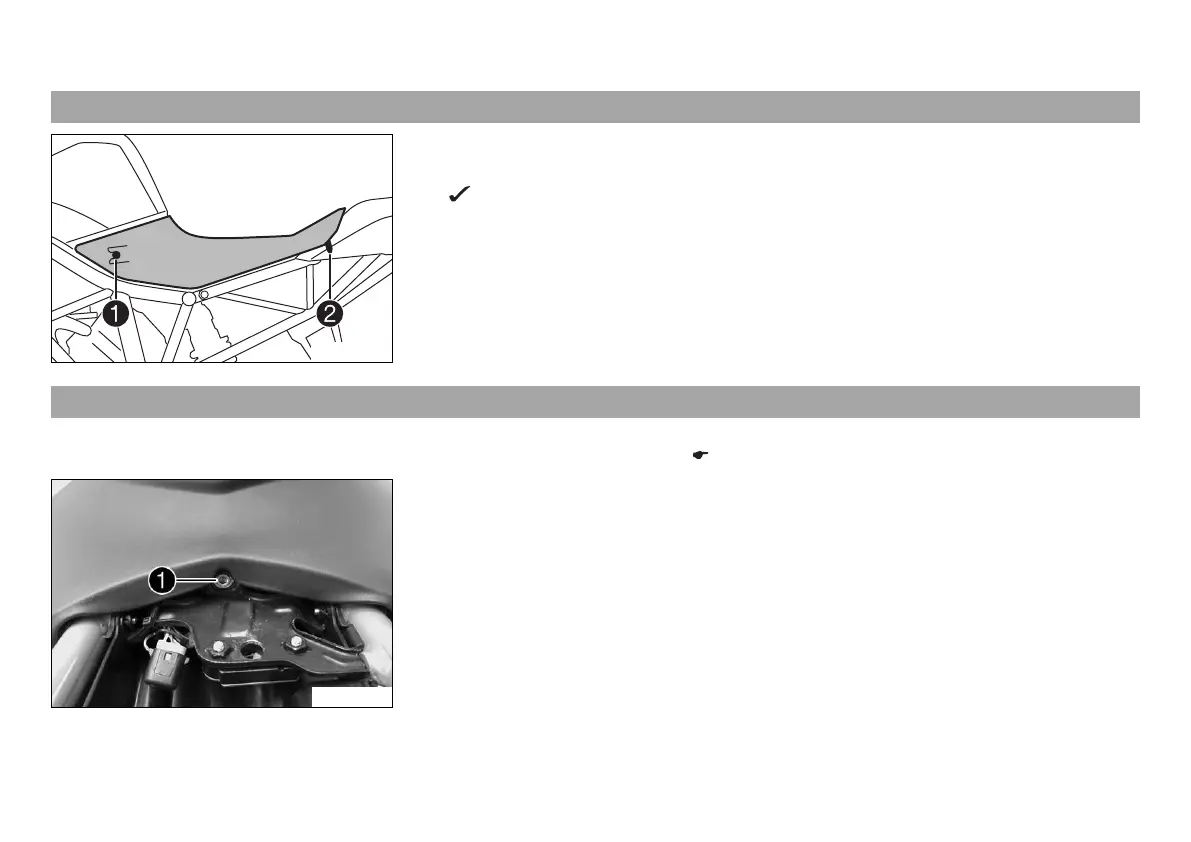

12.6 Mounting the front rider's seat

401921-10

–

Attach recesses



on the front rider's seat to the fuel tank, push the front rider's seat

forward, and lower at the rear.

Catch



engages in the recess.

– Check that the front rider's seat is correctly mounted.

12.7 Removing the passenger seat

Preparatory work

– Remove the front rider's seat. ( p. 81)

L02191-10

Main work

–

Remove screw



with the washer.

– Lift and take off the passenger seat.
