KTM 250 1998 - 3.1 Draining gear oil; 3.2 Cylinder head, cylinder, piston

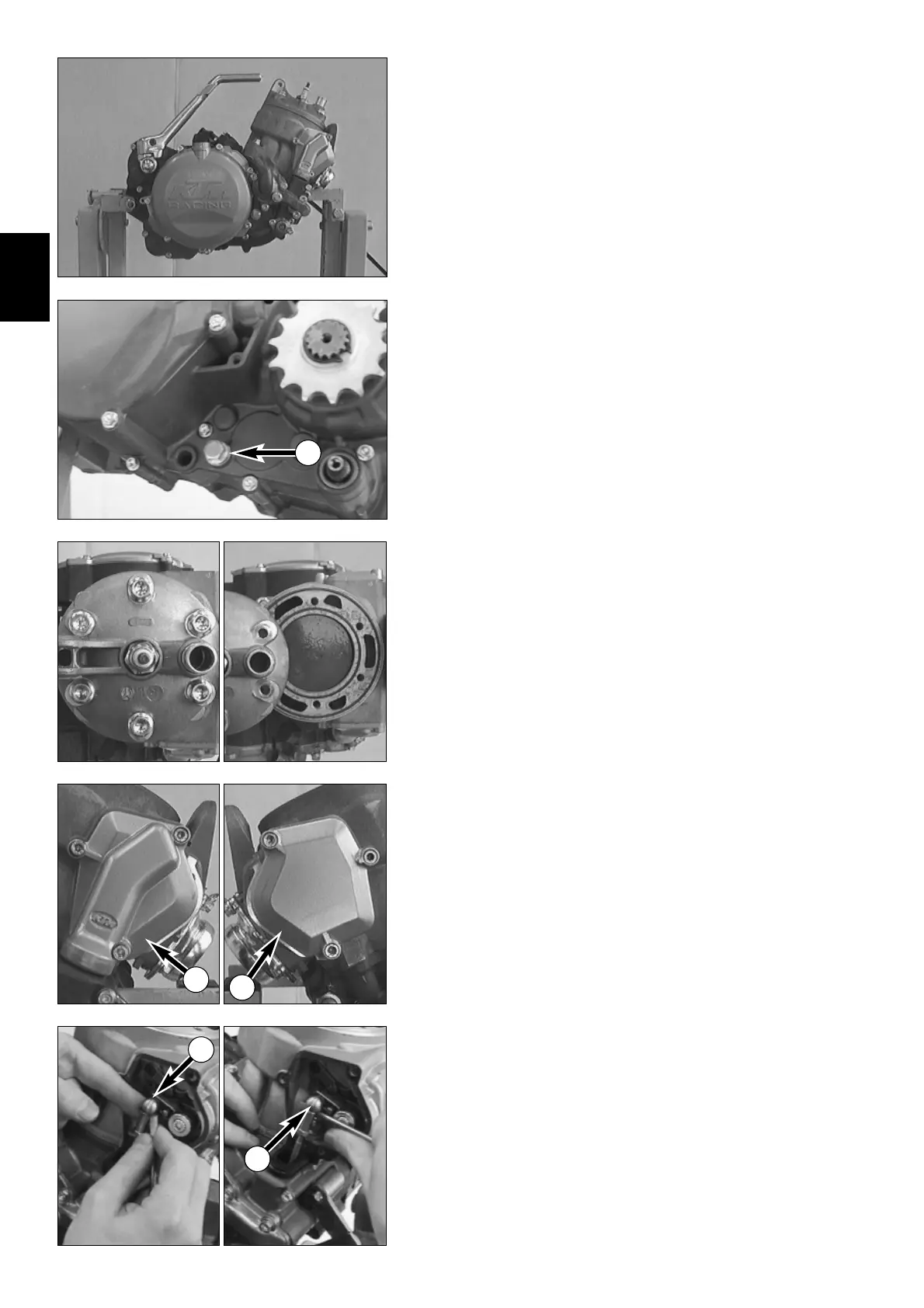

– Cleaning the engine thoroughly.
– Place engine work stand in a vice and clamp the engine into the workstand.
– Remove the kickstarter together with the distance bushing behind and the foot
shift lever.
3.1 Draining gear oil
– Unscrew plug
1
, allowing oil to drain.
3.2 Cylinder head, cylinder, piston
– Unscrew the 6 M8 collar screws.
– Remove cylinder head and the two O-rings.
– Undo the screws and remove the left control cover
2
together with the gasket.
–
Undo the screws and remove the right control cover
3
together with the gasket.
– Remove the securing clip of the ball socket
4
and unhook the ball socket
5
from the adjusting lever.
– Remove the 4 collar nuts on cylinder base and remove cylinder.
3
1
2
3
4
5
