12 SERVICE WORK ON THE CHASSIS
86
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Avoid skin, eye and clothing contact with fuel.
– Immediately consult a doctor if you swallow fuel.
– Do not inhale fuel vapors.
– In case of skin contact, rinse the affected area with plenty of water.
– Rinse the eyes thoroughly with water, and consult a doctor in case of fuel contact with the eyes.
– Change your clothing in case of fuel spills on them.
– Keep fuels correctly in a suitable canister, and out of the reach of children.

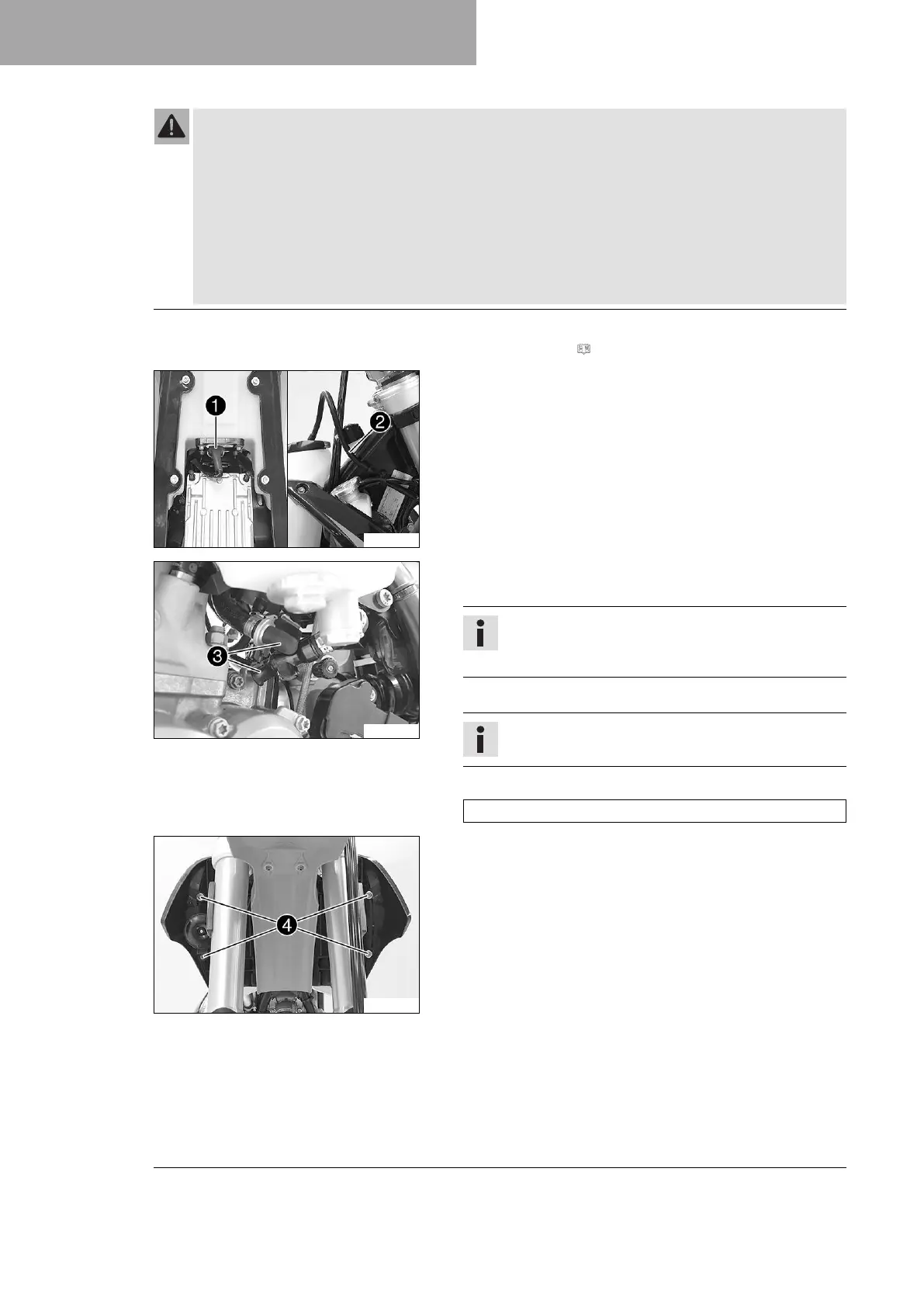

Preparatory work
– Remove the seat. ( p. 80)
E00879-10
Main work
–
Unplug connector
1
of the fuel pump.
–
Remove tube
2
from the fuel tank breather.
E00880-10
– Thoroughly clean the plug-in connection of the fuel line using
compressed air.
Info
Under no circumstances should dirt enter into the fuel
line. Dirt in the fuel line clogs the injection valve!
– Disconnect the plug-in connection of the fuel line.
Info
Remaining fuel may flow out of the fuel hose.
–
Mount wash cap set
3
.
Wash cap set (81212016100)
E00881-10
–
Remove screws
4
with the collar bushings.
(All EXC models)
– Hang the horn and horn bracket to one side.
