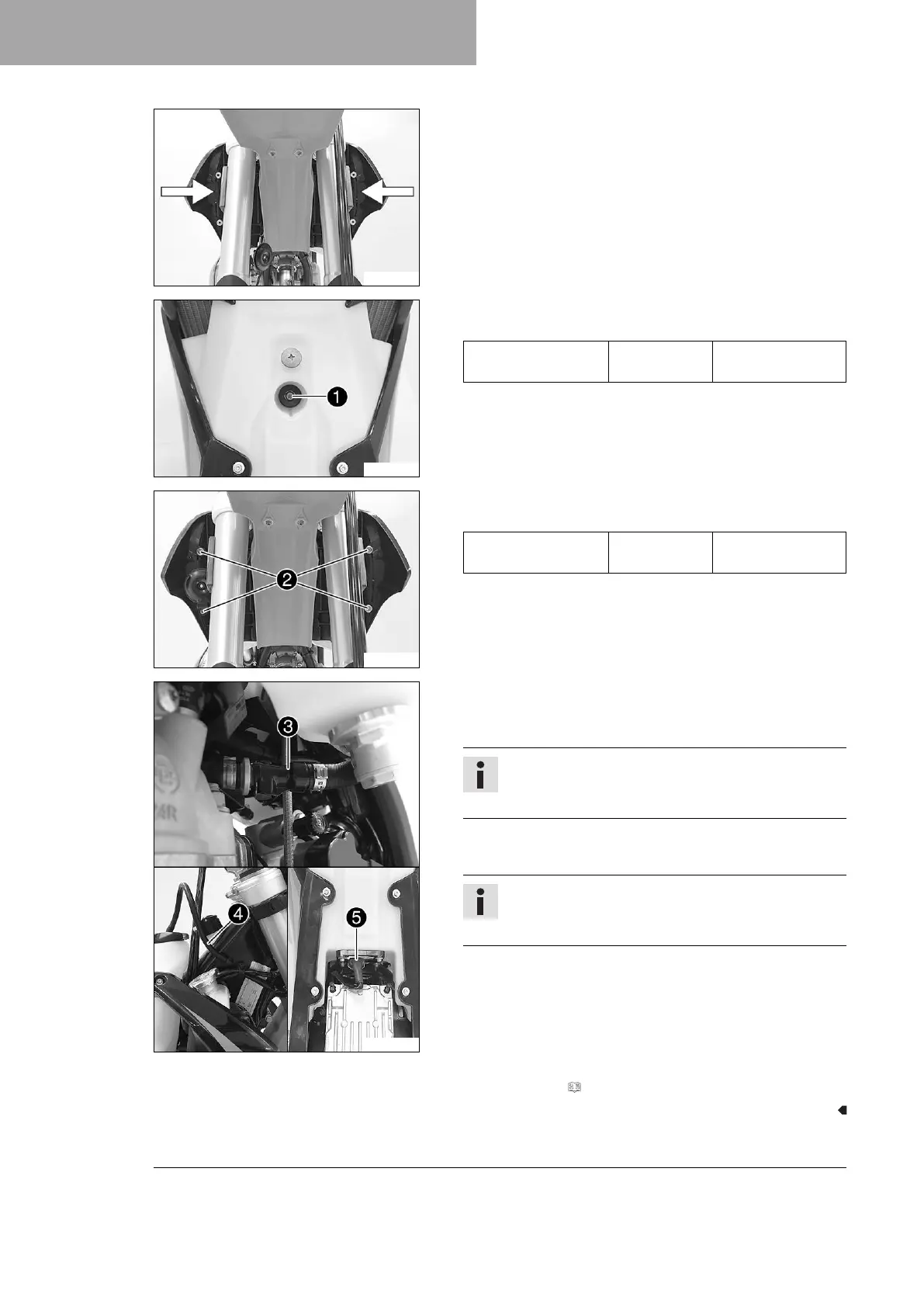

12 SERVICE WORK ON THE CHASSIS
88
E00883-11
– Position the fuel tank and fit the two spoilers to the sides in
front of the radiator bracket.
– Make sure that no cables or throttle cables are trapped or dam-
aged.
E00882-11
–
Mount and tighten screw
1
with the rubber bushing.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
(All EXC models)
– Position the horn with the horn bracket.
E00881-11
–
Mount and tighten screws
2
with the collar bushings.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
E00884-10
– Remove the wash cap set.
– Thoroughly clean the plug-in connection of the fuel line using
compressed air.
Info
Under no circumstances should dirt enter into the fuel
line. Dirt in the fuel line clogs the injection valve!
–
Lubricate the O-ring and connect plug-in connection
3
for
the fuel line.
Info
Route the cable and fuel line at a safe distance from
the exhaust system.
–
Attach fuel tank breather hose
4
.
–
Plug in connector
5
for the fuel pump.
Finishing work
– Mount the seat. ( p. 80)
