KTM 390 Duke Series 2018 User Manual

WORK 3
15

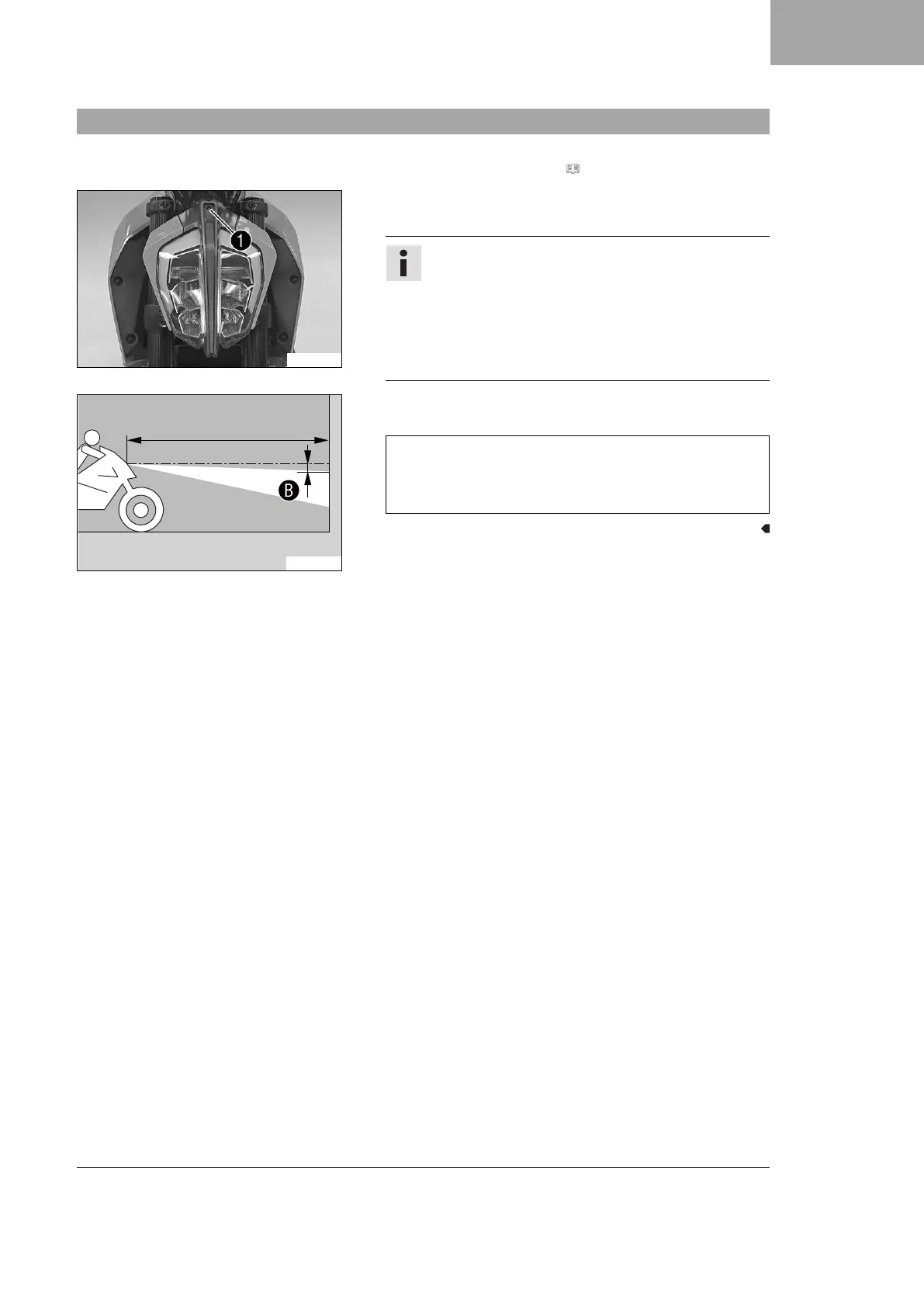

3.16 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 14)
F00850-10
Main work
–
Turn adjusting screw
1
to adjust the headlight range.
Info
Turn clockwise to increase the headlight range; turn
counterclockwise to reduce the headlight range.
If you have a payload, you may have to correct the
headlight range.
Screw
1
also secures the headlight. Ensure the screw
is always screwed in far enough.
400726-11
–
Set the headlight to marking
B
.
Guideline
The light-dark boundary must lie exactly on lower marking
B
when the motorcycle is ready to operate with the rider
mounted along with any luggage and a passenger if applica-
ble.

KTM 390 Duke Series 2018 Specifications

General

Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Torque	37 Nm @ 7, 000 rpm
Compression Ratio	12.6:1
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Transmission	6-speed
Rear Suspension	WP monoshock
Rear Brake	230 mm Disc, Single-Piston Caliper
Front Tire	110/70 ZR17
Rear Tire	150/60 ZR17
Wheelbase	1, 357 mm
Seat Height	830 mm
Ground Clearance	185 mm
Fuel Capacity	13.4 liters
Dry Weight	149 kg
Starter	Electric
Engine Type	Single Cylinder, 4 Stroke, DOHC
Front Suspension	WP upside-down fork, 43 mm
ABS	Yes
Frame	Steel trellis
