KTM 390 Duke Series 2018 User Manual

WORK 3
7

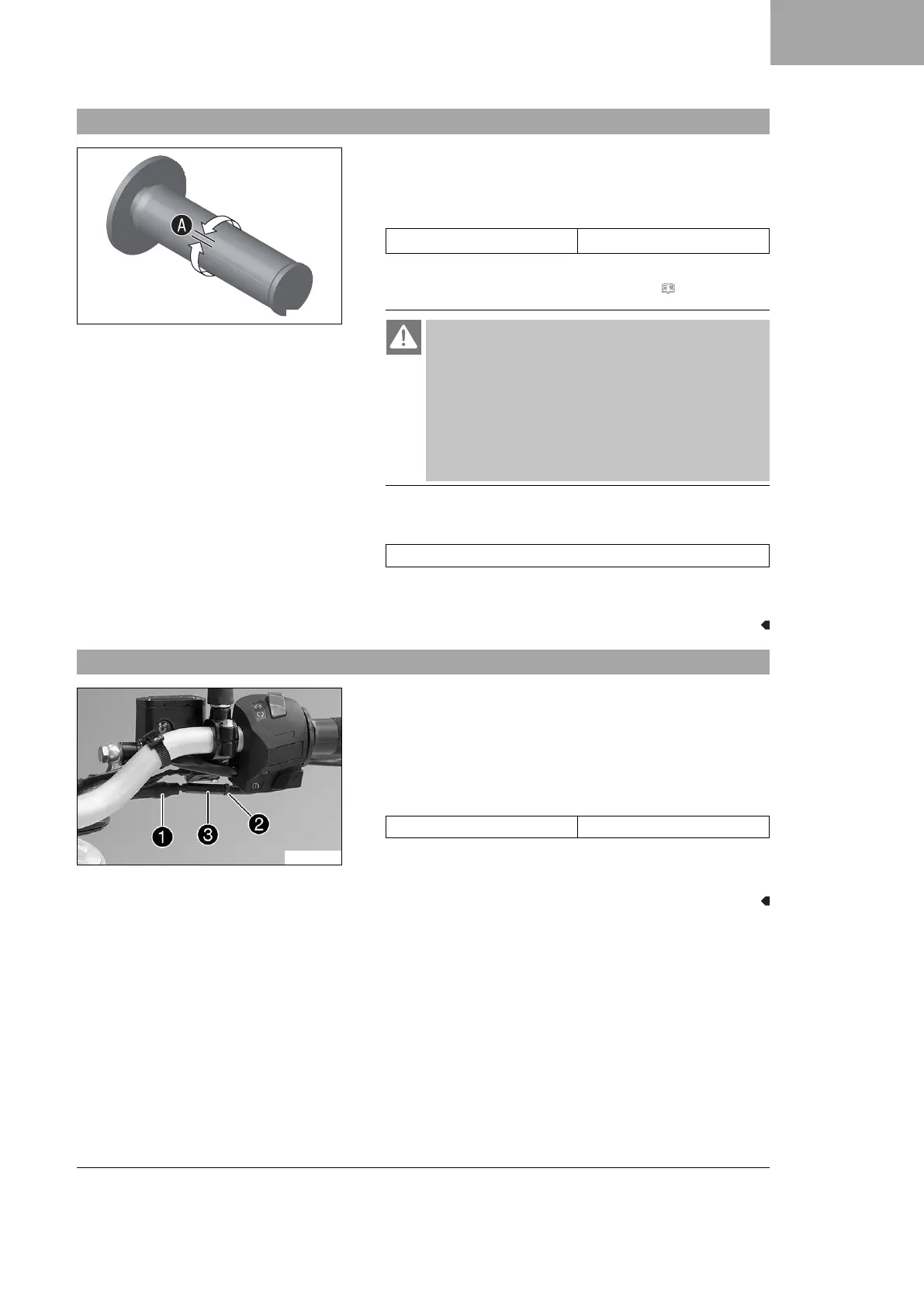

3.3 Checking the play in the throttle cable
400192-11
– Check the throttle grip for smooth operation.
– Move the handlebar to the straight-ahead position. Turn the
throttle grip back and forth slightly and determine the play in
throttle cable
A
.
Throttle cable play
A
3 … 5 mm (0.12 … 0.2 in)
» If the throttle cable play does not meet the specified value:
– Adjust the play in the throttle cable. ( p. 7)
Danger
Danger of poisoning Exhaust gases are toxic and inhal-
ing them may result in unconsciousness and death.
– Always make sure there is sufficient ventilation
when running the engine.
– Use an effective exhaust extraction system when
starting or running the engine in an enclosed
space.
– Start the engine and let it run idle. Move the handlebar to and
fro over the entire steering range.
The idle speed must not change.
» If the idle speed changes:
– Check throttle cable routing.
3.4 Adjusting the play in the throttle cable
M00731-10
– Move the handlebar to the straight-ahead position.
–
Push back sleeve
1
.
–
Loosen lock nut
2
.
– Adjust the play in the throttle cable by turning adjusting
screw
3
.
Guideline
Throttle cable play 3 … 5 mm (0.12 … 0.2 in)
–
Tighten lock nut
2
.
–
Slide on sleeve
1
.

KTM 390 Duke Series 2018 Specifications

General

Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Torque	37 Nm @ 7, 000 rpm
Compression Ratio	12.6:1
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Transmission	6-speed
Rear Suspension	WP monoshock
Rear Brake	230 mm Disc, Single-Piston Caliper
Front Tire	110/70 ZR17
Rear Tire	150/60 ZR17
Wheelbase	1, 357 mm
Seat Height	830 mm
Ground Clearance	185 mm
Fuel Capacity	13.4 liters
Dry Weight	149 kg
Starter	Electric
Engine Type	Single Cylinder, 4 Stroke, DOHC
Front Suspension	WP upside-down fork, 43 mm
ABS	Yes
Frame	Steel trellis
