ENGLISH
29

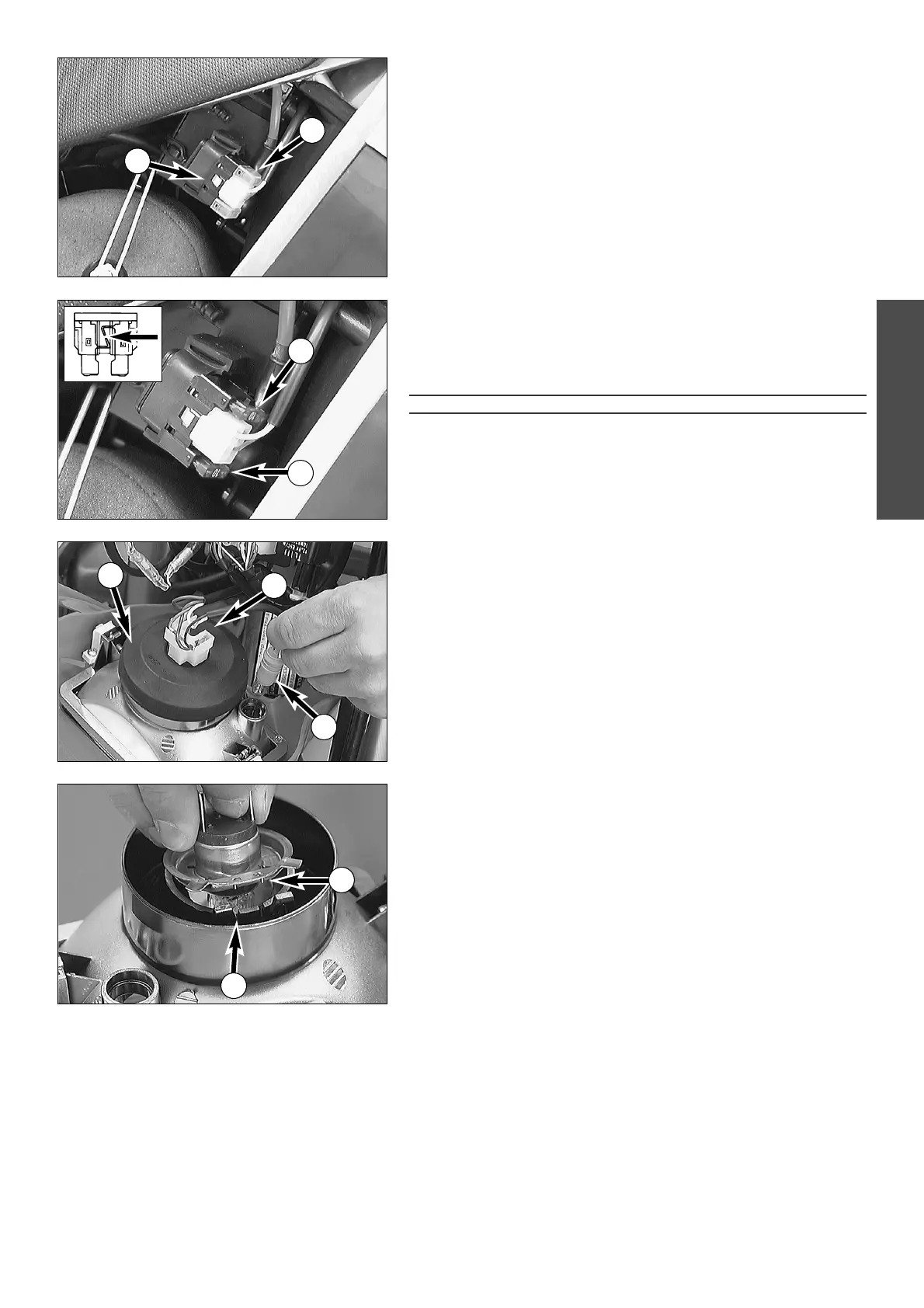

Fuse (MXC/EXC)
The fuse 1 is disposed in the starter relay of the E-starter 2 underneath
the left side paneling.
Having removed the left side paneling, the air box cover and the protection
cover
A, you will be able to see the fuse.
The following loads are connected to it:
– E-starter system
– horn
– flasher lights
The starter relay also contains a (10 amp) spare fuse
3.
Replace a blown fuse only with an equivalent one. If a new fuse that has
just been set in gets blown again, you are strongly advised to have it
inspected by a KTM dealer.
The fuse capacity is 10 Ampere.
!
CAUTION
!
U
NDER NO CIRCUMSTANCES IS A STRONGER FUSE ALLOWED TO BE SET IN OR A FUSE
ALLOWED TO BE
“REPAIRED”. AN INEXPERT TREATMENT COULD DAMAGE THE WHOLE
ELECTRICAL INSTALLATION
!
Replacing headlight lamp/parking light lamp
Loosen both rubber bands and tilt headlight mask to the front. Pull the par-
king light lamp with holder
4 carefully out of the reflector. Pull connector
5 off the headlamp and remove rubber cap 6. Disengage retaining clip
and take bulb out of reflector. When changing the parking-light lamp, sim-
ply pull it out of the holder.
Insert new lamp such that the noses
7 engage the recesses 8 .When doing
so, do not touch the glass body of the lamp so that it remains free from fat.
Engage retaining clip, mount rubber cap and connector. If the parking-light
lamp is to be replaced, simply insert it into the holder. Reinsert parking-light
lamp together with holder.
Engage the bottom end of headlamp mask at the retaining pins and fix the
mask by means of the rubber bands.
1
2
3
A
7
5
6
4
8
