12 BRAKE SYSTEM 57
– Hold screw 3 and tighten nut 2.
Guideline
Nut, foot brake lever stop M8 20 Nm
(14.8 lbf ft)
– Hold push rod 5 and tighten nut 4.
Guideline
Remaining nuts, chassis M6 10 Nm (7.4 lbf ft)
– Reconnect spring 1.
12.9 Checking the rear brake fluid level
Warning
Danger of accidents Brake system failure.
– If the brake fluid level drops below the specified marking or the specified value, this is an indication that the brake system
is leaking or that the brake linings are completely worn down. Check the brake system and do not continue riding. (Your
authorized KTM workshop will be glad to help.)
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized KTM workshop will
be glad to help.)
Preparatory work
– Check the rear brake linings. ( p. 58)

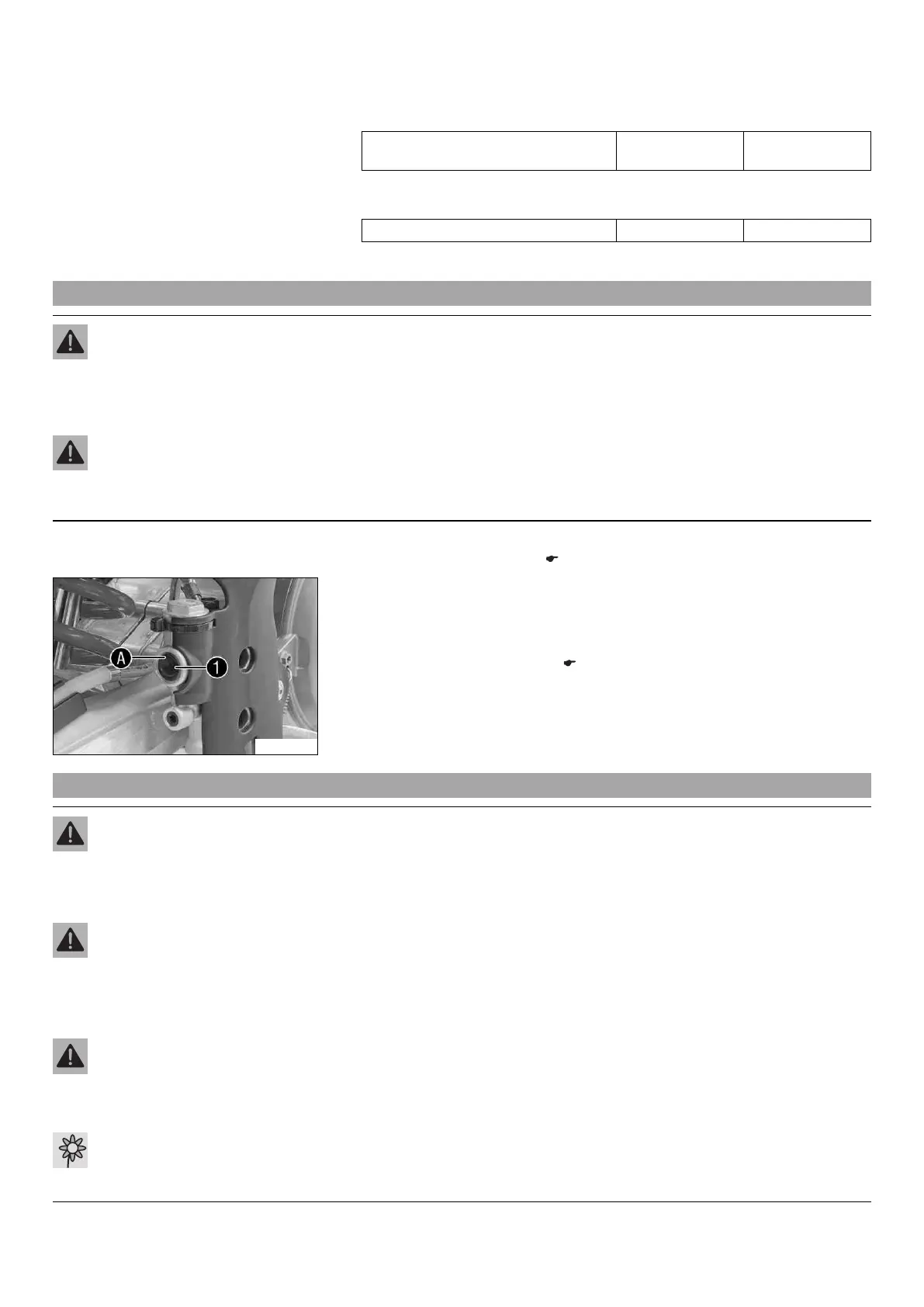

L01326-10
Main work
– Stand the vehicle upright.
– Check the brake fluid level in the viewer 1.
» If the brake fluid level drops below marking A:
–
Add rear brake fluid. x ( p. 57)
12.10 Adding rear brake fluid x
Warning
Danger of accidents Brake system failure.
– If the brake fluid level drops below the specified marking or the specified value, this is an indication that the brake system
is leaking or that the brake linings are completely worn down. Check the brake system and do not continue riding. (Your
authorized KTM workshop will be glad to help.)
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children.
– Wear suitable protective clothing and goggles.
– If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized KTM workshop will
be glad to help.)
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
