KTM 450 SX-F 2016 User Manual

3 WORK 8
H00002-11
–
Mount and tighten screw

.
Guideline
Screw, front wheel spindle M20x1.5 35 Nm
(25.8 lbf ft)
– Operate the hand brake lever several times until the brake linings are lying correctly
against the brake disc.
– Remove the motorcycle from the lift stand. ( p. 7)
– Operate the front brake and compress the fork a few times firmly.
The fork legs straighten.
–
Tighten screws

.
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)

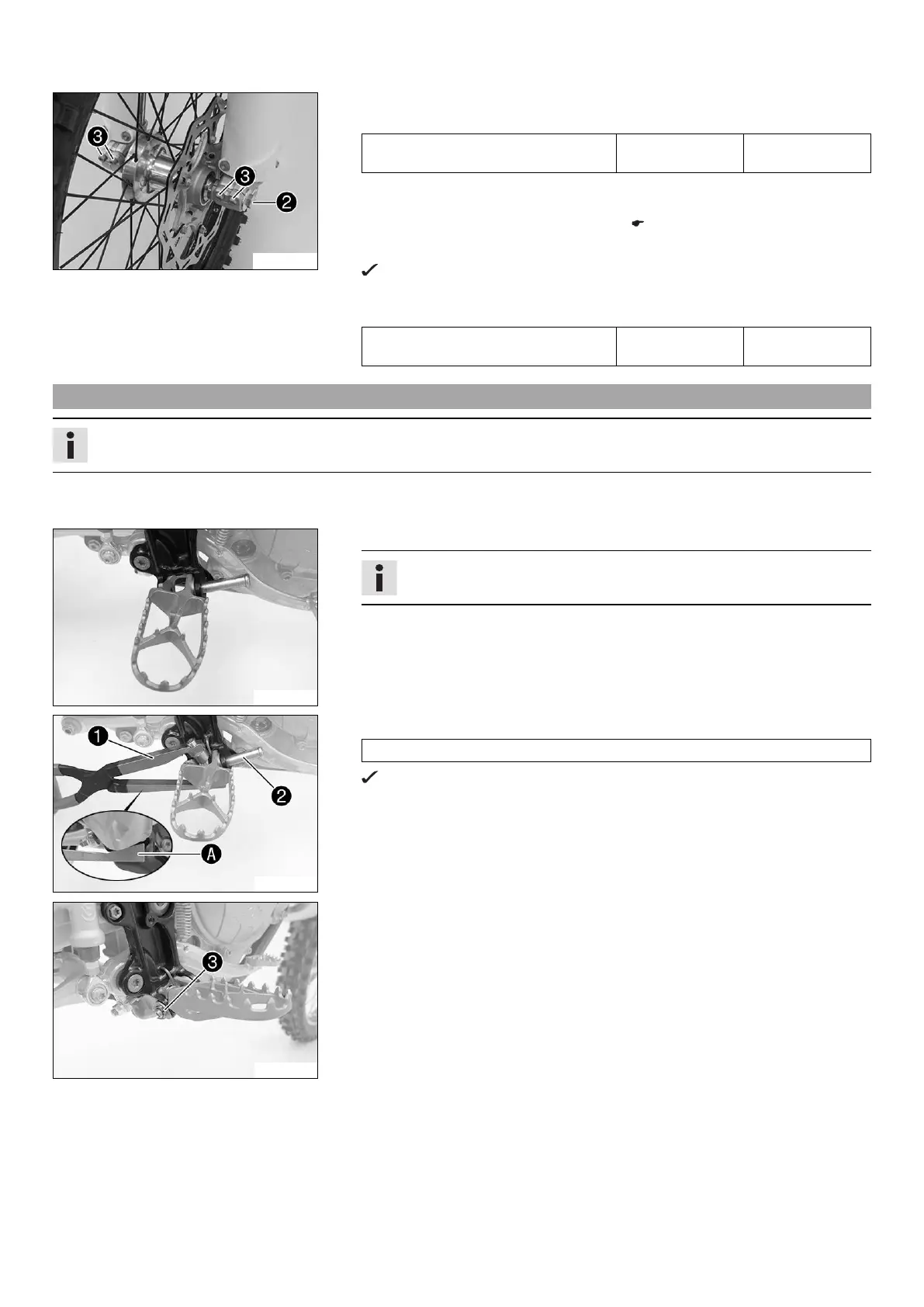

3.4 Installing the footrests
Info
The procedures are the same on both footrests.
Condition
The frame protectors have been removed on the left and right.
D00674-10
– Position the new footrest and pin.
Info
Only insert the pin to the extent that the spring can still be mounted.
S00976-10
–
Press the spring with special tool

.
Pliers for footrest spring (79029083000)
The special tool is applied to area

on the footrest.
–
Mount pin

.
S00975-10
–
Mount the washer and split pin

.

KTM 450 SX-F 2016 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	449.9 cc
Bore x Stroke	95 mm x 63.4 mm
Starter	Electric starter
Transmission	5-speed
Fuel System	Keihin EFI, 44 mm throttle body
Cooling	Liquid cooled
Seat Height	960 mm
Ground Clearance	370 mm
Compression Ratio	12.75:1
Ignition	Keihin EMS
Front Suspension	WP USD, Ø 48 mm
Rear Suspension	WP monoshock
Front Brake	Disc brake 260 mm
Rear Brake	Disc brake 220 mm
Final Drive	5/8 x 1/4"
Frame	Central double-cradle type 25CrMo4 steel
