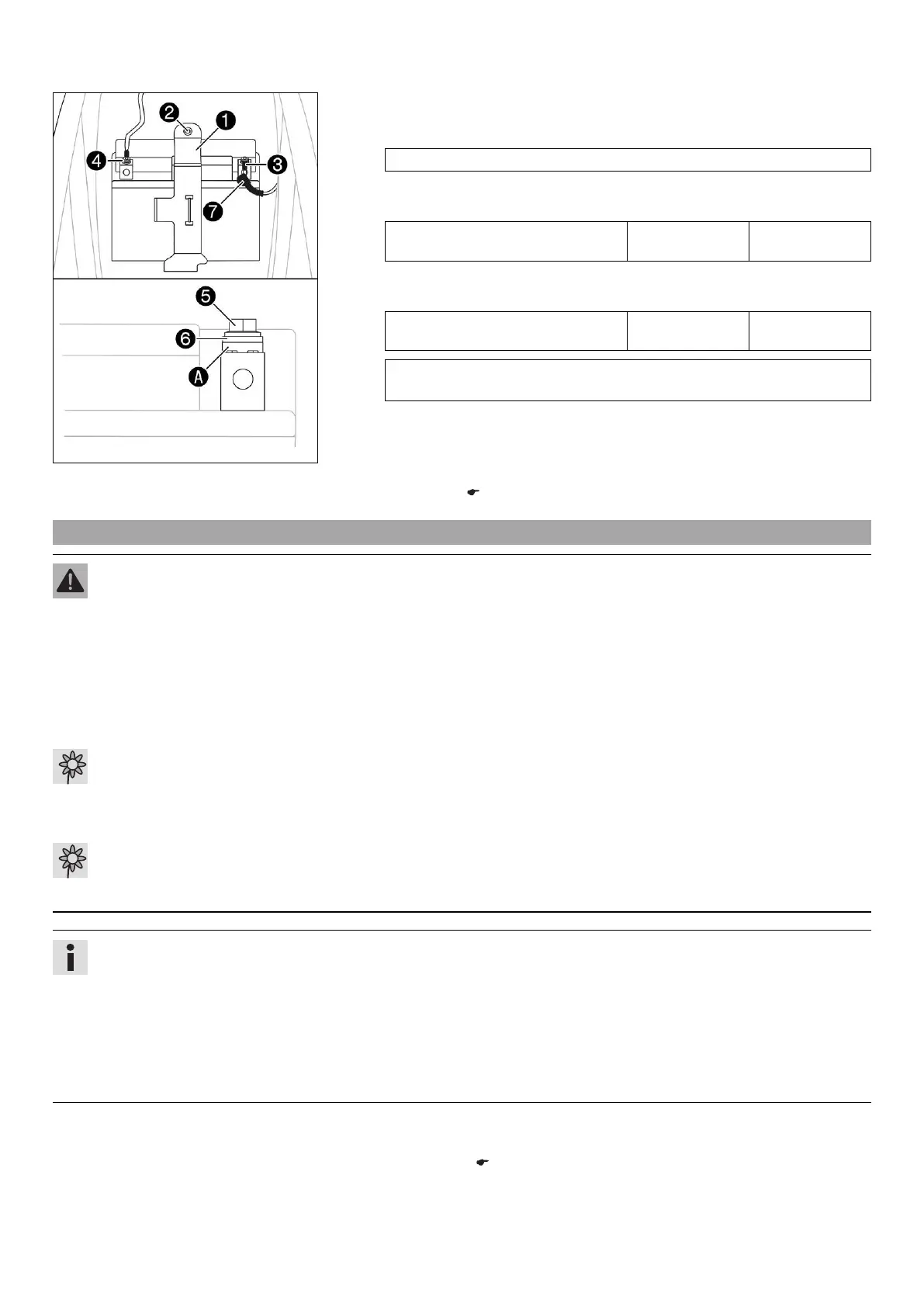

– Insert the battery into the battery compartment with the terminals facing for-
ward and secure with the holding bracket
.
Battery (HJTZ5S-FP)
–
Mount and tighten screw
.
Guideline
Remaining nuts, chassis M6 10 Nm
(7.4 lbf ft)
–
Connect positive cable
and negative cable
with the battery.
Guideline
Screw, battery terminal M5 2.5 Nm
(1.84 lbf ft)
Contact disks
must be mounted under screws
and cable sockets
with the claws toward the battery terminal.
–
Slide positive terminal cover
over the positive terminal.
Finishing work
– Mount the seat. ( p. 10)
3.10 Recharging the battery
Warning
Risk of injury Batteries contain harmful substances.
– Keep batteries out of the reach of children.
– Keep sparks and open flames away from the battery.
– Only charge in well-ventilated rooms.
– Maintain the minimum clearance to inflammable materials while charging.
Minimum clearance 1 m (3 ft)
– Over-discharged batteries with a charge of less than 9 V are not permitted to be charged. They must be disposed of.
Warning
Environmental hazard The battery contains elements that are harmful to the environment.
– Do not dispose of batteries with the household waste. Dispose of a defective battery in an environmentally friendly manner.
Give the battery to your authorized KTM dealer or dispose of it at a collection point for used batteries.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Even when there is no load on the battery, it discharges steadily.
The charging level and the method of charging are very important for the service life of the battery.
Rapid recharging with a high charging current shortens the service life of the battery.
If the charging current, charging voltage, or charging time are exceeded, the battery will be destroyed.
If the battery is depleted by repeated starting, the battery must be charged immediately.
If the battery is left in a discharged state for an extended period, it will become over-discharged and sulfated, destroying the
battery.
The battery is maintenance-free.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 9)
– Remove the battery.
