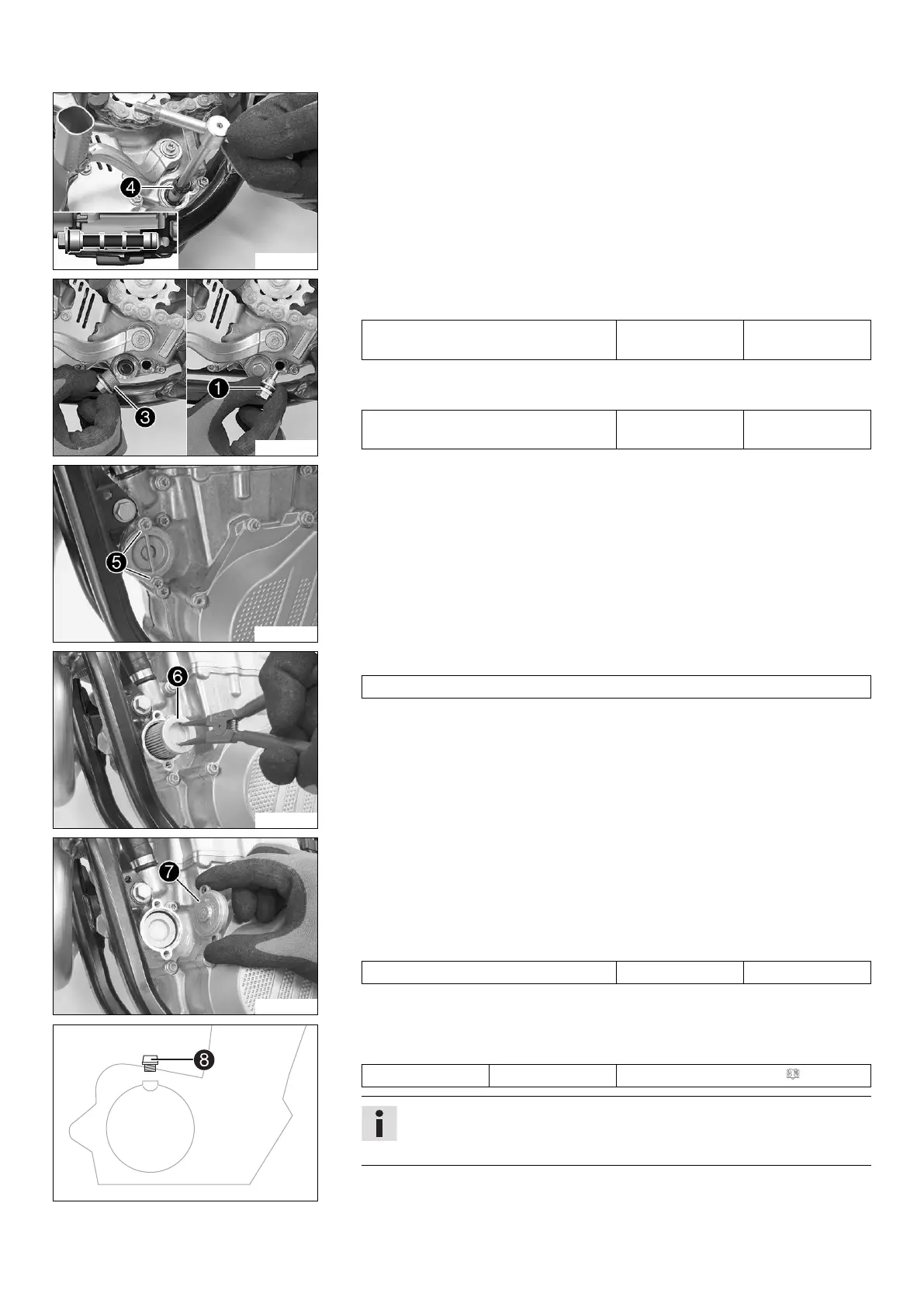

17 SERVICE WORK ON THE ENGINE 96
V00306-10
–
Position oil screen
4
with the O-rings on a pin wrench.
– Position the pin wrench through the drilled hole of the screw plug in the opposite
section of the engine case.
– Push the oil screen all the way into the engine case.
V00307-10
–
Mount and tighten screw plug
3
with the O-ring.
Guideline
Screw plug, oil screen M20x1.5 15 Nm
(11.1 lbf ft)
–
Mount and tighten oil drain plug
1
with the magnet and a new seal ring.
Guideline
Oil drain plug with magnet M12x1.5 20 Nm
(14.8 lbf ft)
102237-10
–
Remove screws
5
. Remove the oil filter cover with the O-ring.
V00308-10
–
Pull oil filter
6
out of the oil filter housing.
Circlip pliers reverse (51012011000)
– Completely drain the engine oil.
– Thoroughly clean the parts and sealing surfaces.
V00309-10
– Lay the motorcycle on its side and fill the oil filter housing to about ⅓ full with
engine oil.
– Fill the oil filter with engine oil and position the oil filter in the housing.
–
Oil the O-ring of the oil filter cover and mount it with oil filter cover
7
.
– Mount and tighten the screws.
Guideline
Screw, oil filter cover M6 10 Nm (7.4 lbf ft)
– Stand the motorcycle upright.
401955-12
–
Remove filler plug
8
with the O-ring from the clutch cover and fill up with engine
oil.
Engine oil 1.20 l (1.27 qt.) Engine oil (SAE 10W/50) ( p. 112)
Info
Too little engine oil or poor-quality engine oil results in premature wear of
the engine.
– Install and tighten the oil filler plug with O-ring.
